Product Description

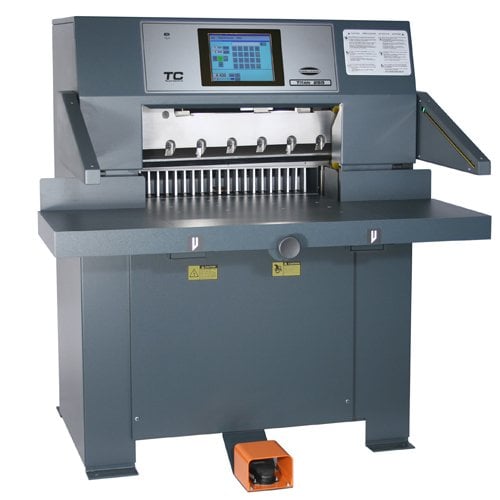

This Challenge Titan 265 TC 26.5" Hydraulic Programmable Paper Cutter has a solid cast iron and steel construction for maximum durability. Its industry-exclusive UHMW gib surfaces, composite bushings, and a one-inch thick solid metal table require virtually zero maintenance for years of trouble-free operation. It has a powerful hydraulic clamping and cutting that yield up to 26 cuts per minute. The Titan 265 TC has a maximum cutting width of 26.5" and a maximun cut depth of 28". It has a 10.5" color touch-screen TC Controller that allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. The Titan 265 TC paper cutter's controller is the first in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation. This Challenge Titan 265 TC 26.5" Hydraulic Programmable Paper Cutter has many innovative advances which improve the task of program creation through features such as repeat and loop commands, USP port for thumb drive program delivery, network capable hardware with an Ethernet port, label cutting and sheet division tools, and many more.
Product Details
- Key Benefits/Features:
- Maintenance free stainless steel table
- User-friendly color touch screen control & fully programmable
- Hydraulic cutting & clamping
- Lighted cut line position indicator
- Powered backgauge
- Table slot closure device
- Electronic clamp pressure control
- Air table option
- Variable mode data entry (fraction, decimal, metric)
- Automatic fraction to decimal calculation
- Power foot pedal clamping
- Rugged steel & cast iron construction
- UHMW adjustable knife bar gibs
- 2-year Manufacturer's Warranty
- 16" x 13.5" side tables - optional 20" x 26" set available
- Safety Features:
- UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
- Cutting area protection - light beam safety curtain
- Two-hand push button control of cutting cycle with timed, non-repeat device
- Machine self-diagnostics and error indication
- Rear table cover
- Optional ergo-touch cut buttons reduce operator fatigue
- The TC Control System Features:
- USB port for simple thumb drive program storage and software upgrades when available from the www.challengemachinery.com website
- Graphical display of cut locations during program entry
- Auto-programming sheet division with animated graphics
- Repeat and Loop commands streamline program entry
- 10.5" color touch screen control panel
- Programmable clamp pressure per cut
- Automatic false clamp plate detection.
- Hand-wheel for manual backgauge adjustment
- Recognizes .csv program files making offline programming simple to implement
- Optional Barcode Reader for immediate loading of programs. Includes software to generate the barcodes.
- Standard Equipment Included:
- (1) false clamp plate
- (2) inlaid high speed steel knives
- (4) plastic cutting sticks
- (1) jogging aid
- (1) manual
- (1) tool kit
- (1) knife change safety holder assembly
Specifications
- Cutting Width: 26-1/2"/673 mm
- Clamp Opening:
- w/out false clamp plate 4"/102 mm
- with false clamp plate 3-3/4"/95 mm
- Clamping Force :
- minimum 1,470 lbs/652 daN
- maximum 4,000 lbs/1,800 daN
- Min Cut (w/out false clamp plate): 5/8"/16 mm
- Min Cut (with false clamp plate): 1-7/8"/48 mm
- Maximum Cut Depth: 28"/711 mm
- Table in Front of Knife: 24"/610 mm
- Side Tables: 16"x13-1/2"/400x340mm
- Table Height: 36"/914 mm
- Overall Width: 54"/1372 mm
- Overall Length: 70.3"/1785 mm
- Overall Height: 60.3"/1532 mm
- Will pass through opening:
- (assembled) 54"/1372 mm
- (table out) 31"/790 mm
- Net Weight (approx.): 1780 lbs/808 kg
- Shipping Weight (approx.): 2300 lbs/1,043 kg
- Electrical UL/CUL Listed & CE:
- Standard Motor: 5 H.P., 208/230 Volts, 60 Hz, 3-Phase, AC, 25 Amps, Service size 30 Amps.
- Custom Motor: 5 H.P., 380/415 Volts, 50 Hz, 3-Phase, AC, 10 Amps, Service size 20 Amps.
- This machine must be wired to an individual line through a disconnect box with the proper voltage at the machine. Power cable must be purchased to meet local electrical codes.
