Product Description

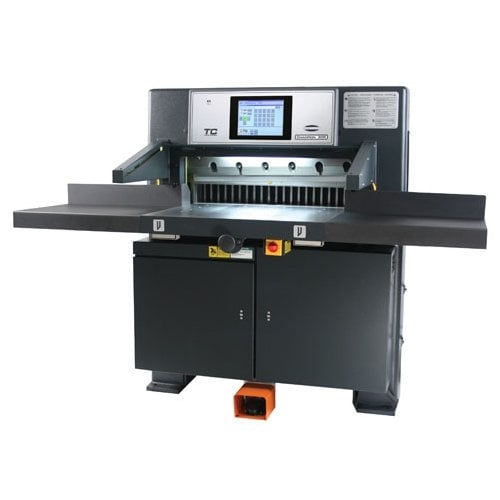

The Champion 305 TC 30.5" Programmable Paper Cutter is featured with an intuitive 10.5" color touch-screen TC Controller that allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. Its light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification. The clamp mark waste is reduced or eliminated with programmable electronic clamp pressure control per cut. Innovative advances improve the task of program creation through features such as repeat and loop commands, USP port for thumb drive program delivery, network capable hardware with an Ethernet port, label cutting and sheet division tools, and more! Plus, the TC system is the first paper cutter controller in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation. If you are looking for a dependable,durable and maintenance-free programmable paper cutter, then the Champion 305 TC is what you are looking for.
Product Details
- Up to 26 cuts per minute.
- Virtually maintenance-free design.
- Fully-adjustable knife bar gibs (front and rear).
- 30.5" / 77.5 cm cutting width, 4" / 10.2 cm clamp opening.
- Hydraulic clamping and cutting.
- Line-light cut position indicator.
- False clamp plate.
- Cast iron and steel construction.
- Low-pressure pre-clamping protects operator from injury (less than 66 PSI).
- UL, cUL, CE.
TC Control System Features:
- 10.5" Color Touch Screen control panel.
- JDF and network capable hardware.
- Electronic Clamp Pressure control.
- USB port for simple thumb drive program entry.
- Ability to receive .csv files making offline programming and memory storage simple.
- Repeat and Loop commands streamline program entry.
- Auto-programming features of sheet division and label cutting with animated graphics.
- Programmable Clamp pressure per cut.
- Automatic Fraction to Decimal Conversion.
- Unlimited program storage capacity.
- Program Lockout.
- Computer Diagnostic Tools.
- ANSI safety standard compliant and CE, UL and cUL Listed.
Specifications
- Maximum Cutting Width: 30-1/2" / 77.5cm
- Minimum Cut:
- without false clamp plate: 3/4" / 19mm
- with false clamp plate: 2" / 5cm
- Maximum Cut Depth: 30-1/2"/ 77.5cm.
- Clamp Opening:
- without false clamp plate: 4" / 10.2cm
- with false clamp plate: 3-3/4" / 9.5cm
- Clamping Method: Hydraulic and Manual.
- Maximum Clamping Force: 5000 lbs / 2200 daN
- Backgauge Control: Power and Manual
- Table Space:
- in front of knife: 25" / 63.5cm
- behind knife: 30-1/2" / 77.5cm
- Table Height: 36-1/2" / 94cm
- Overall Height: 58-1/2" / 147cm
- Overall Width (with side tables): 78-1/2" / 200cm
- Overall Width (without side tables): 51" / 130cm
- Overall Length: 71" / 180.4cm.
- Door Pass-through:
- assembled: 51" / 130cm
- with table/treadle removed: 42" / 106cm
- with table/treadle/power unit removed: 29" / 74cm
- Electrical:
-
- Standard Motor -5 H.P. Three Phase, 60 Hz, AC
- 208/230 Volts, 25 Amps (service size 40 Amps)
- 460 Volts, 11.5 Amps (service size 20 Amps)
- U.L. Listed.
- Optional Single Phase Supply Kit: K-3482
- Manufacturer's Warranty: 2 Years Manufacturer Manufacturer's Warranty
