Product Description

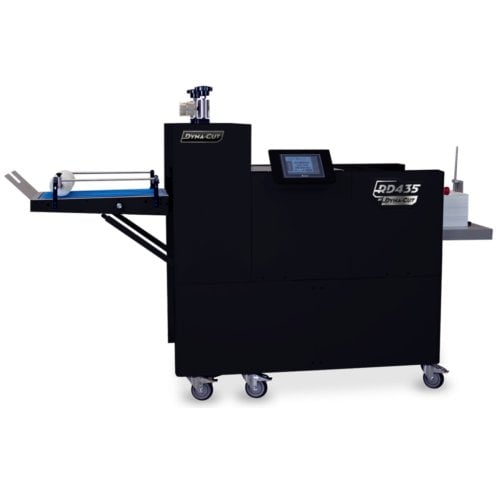

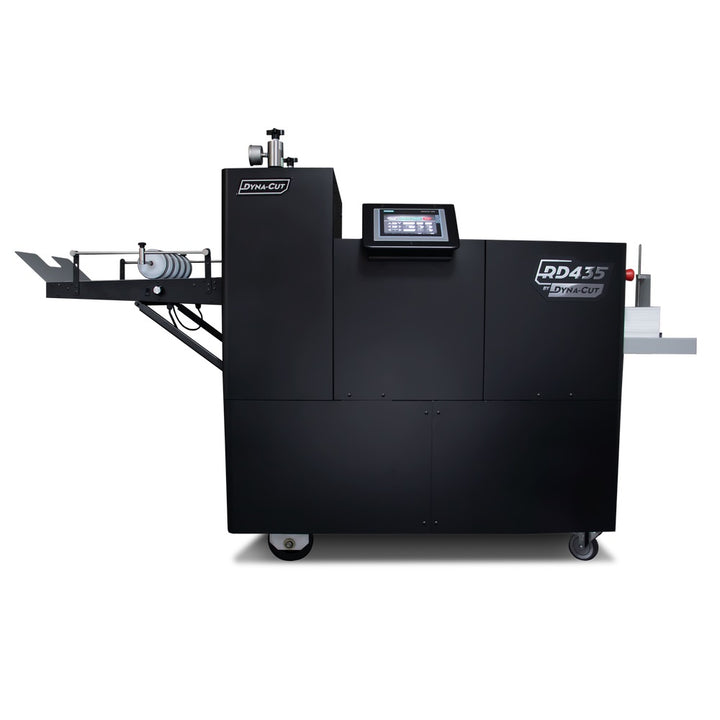

The Count Dyna-Cut RD435 is an affordable rotary die cutter system that produces top quality pieces from custom flexible dies. Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches. The Dyna-Cut produces a variety of digital print and packaging products such as custom-shaped brochures and direct mailers, invitations, retail packages, labels, greeting cards and folded boxes. At a speed of up 6,000 cycles per hour, the Dyna-Cut RD435 produces not only single and multiple-up pieces but a wide variety of paper stocks up to 14"x 20". Other great features include: Fast and efficient die changes, Touch Screen User Interface, Top Feed Vaccuum System, Large 8" Capacity Feeder, and Conveyor System with Scrap Separator. This
Product Details
- Model: RD435
- Dimensions: 105" L x 29.25" W x 55.25" H
- Weight: 1025 lbs
- Speed: 6,000 cycles per hour
- Feed Capacity: Vacuum fed, 8"
- Paper Weight Range: 106 - 435 gsm
- Max Sheet Size: 14" x 20"
- Min Sheet Size: 8.5" x 11"
- Delivery: Motorized Belt
- Motor: Dual (Cylinder and Feeder)
- Voltage: 110V
- Double Sheet Detector: Yes

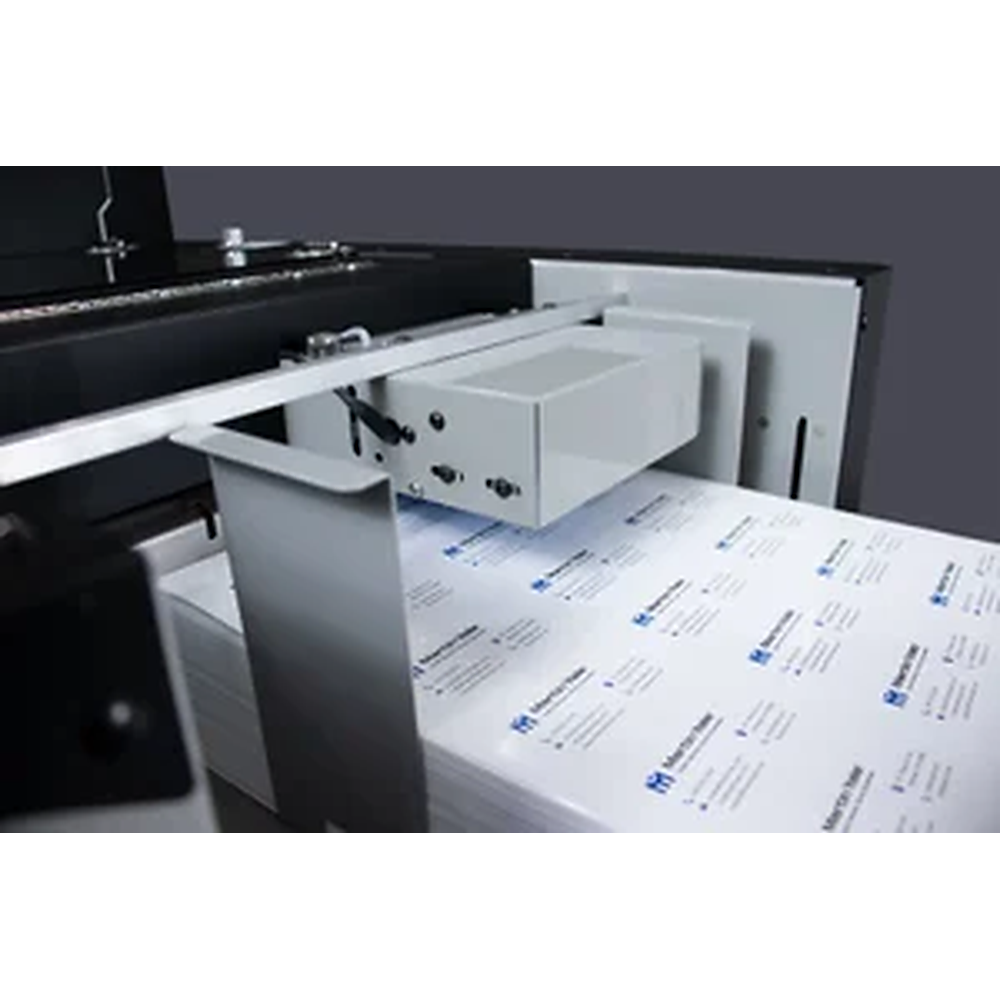

- Registration Mark Sensor: Yes
- Reg Board Alignment: Yes
- In-line Scrap Separator: Yes
- Made in: U.S.A.
Specifications
- Designed for use with flexible dies.
- Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches.
- High speed output of up to 6,000 cycles per hour.
- Fast and efficient die changes.
- Touch Screen User Interface

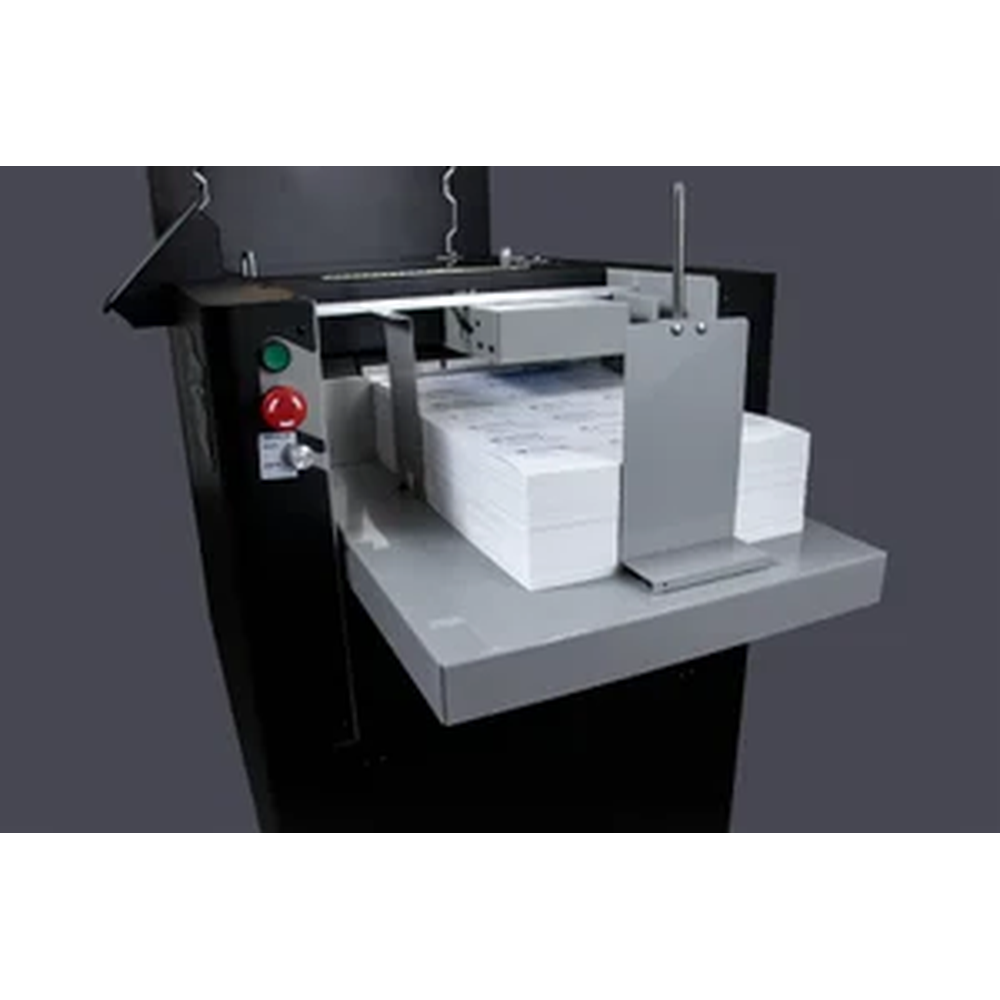

- Top Feed Vacuum System
- Large 8" Capacity Pile Feeder

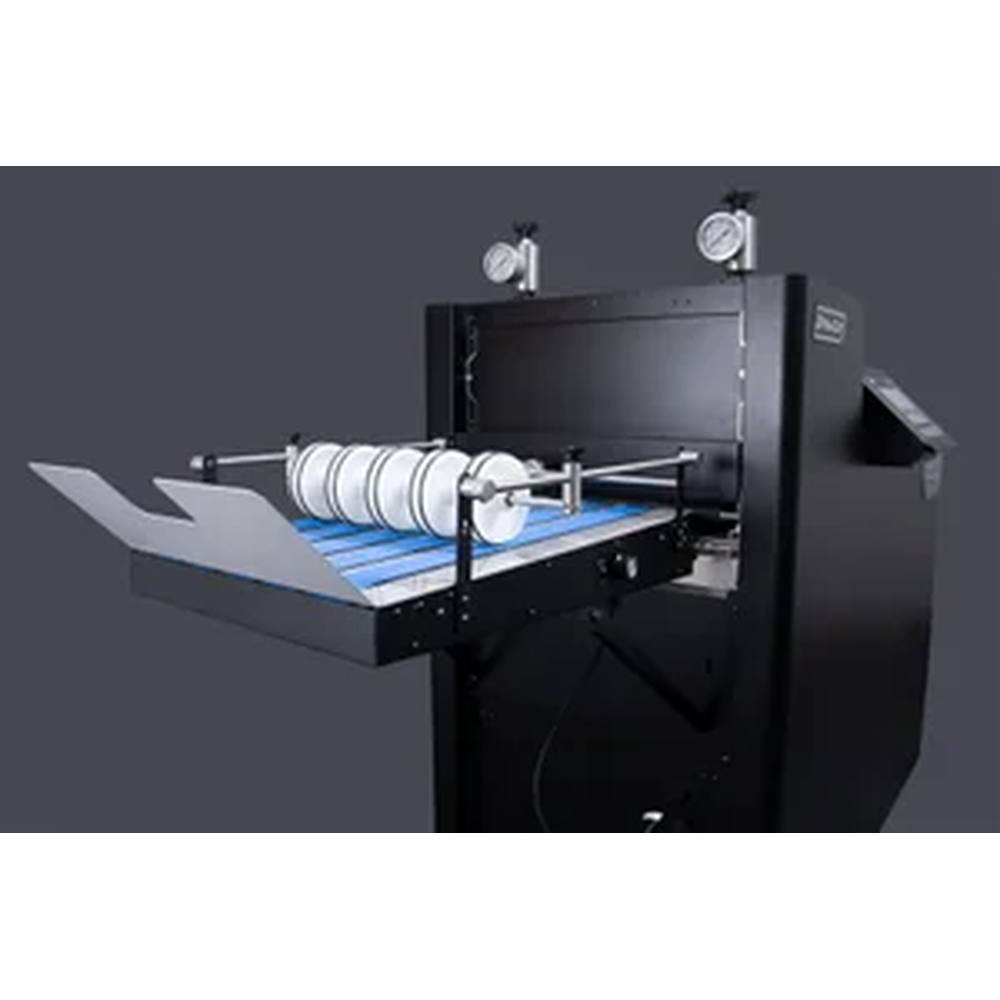

- Conveyor System with Scrap Diverter
- Best GSM range in the industry.
- Endless cutting capabilities.
- Premium quality, without the premium price tag.
- 180 Day Manufacturer's Warranty (Extended Warranties Available)
Key Features

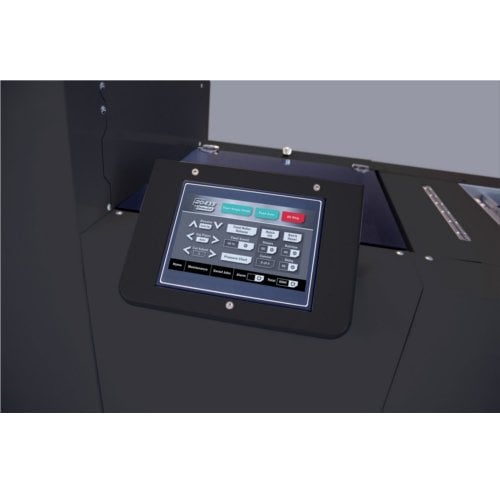

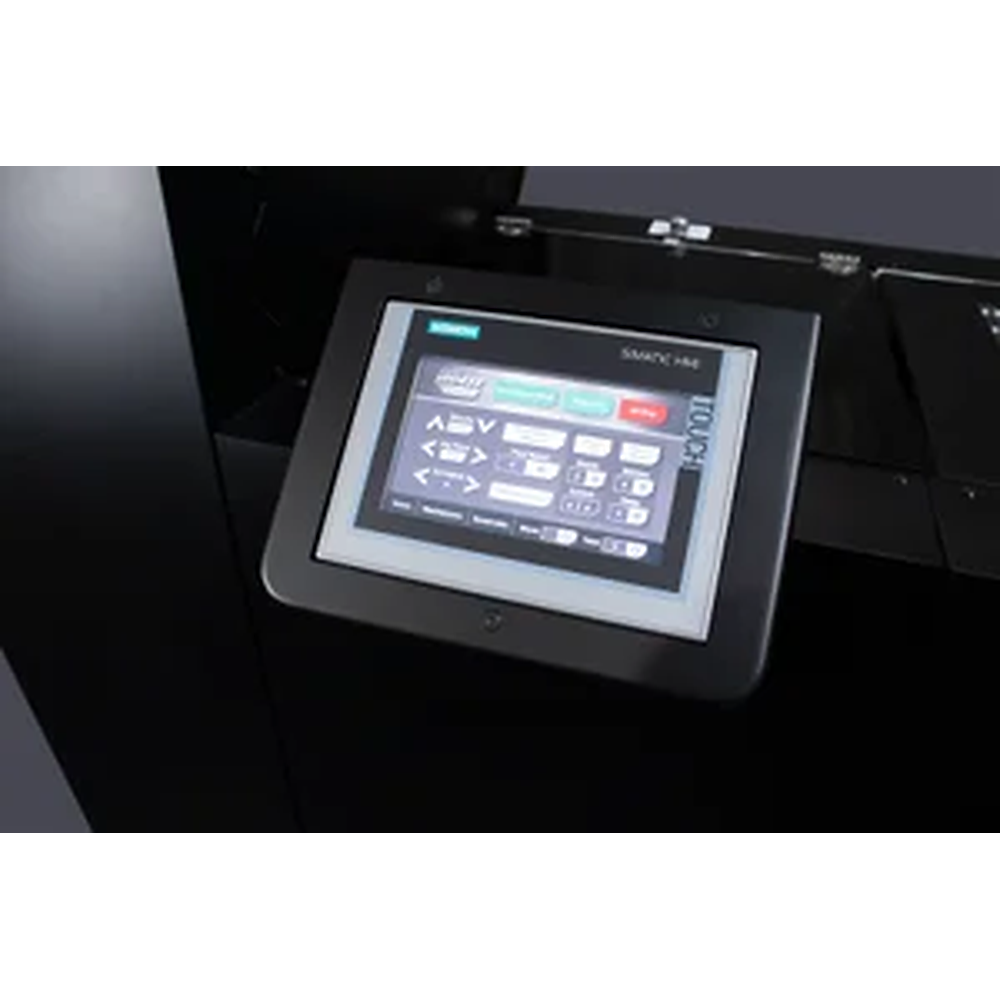

Touch Screen |

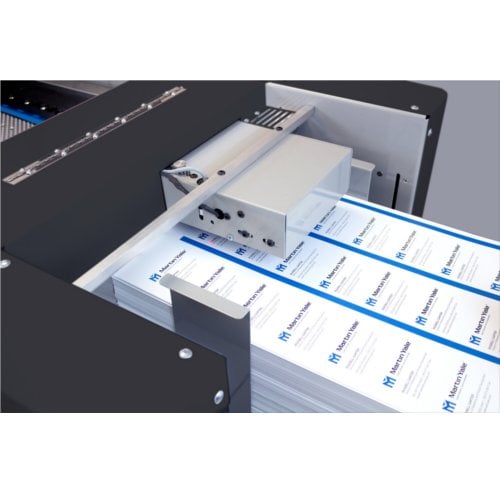

Top Feed Vacuum System |

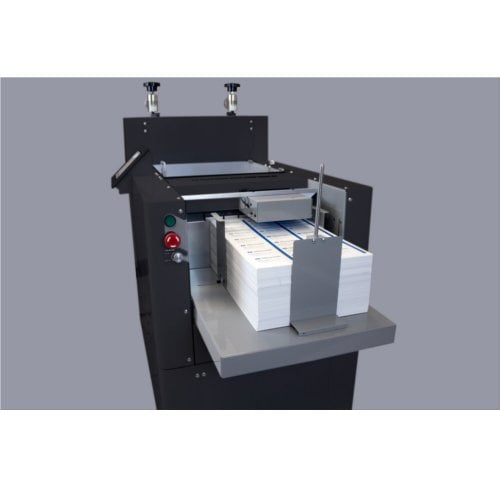

Large 8" Capacity |

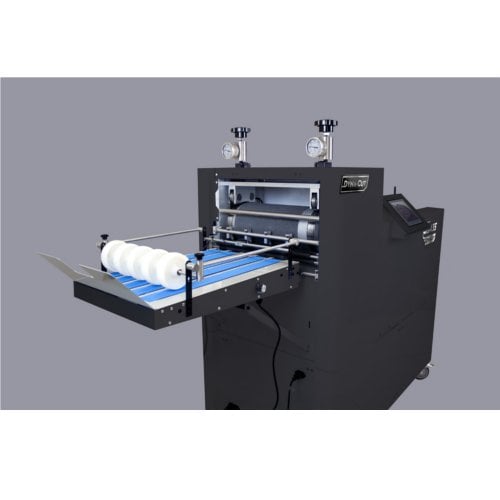

Conveyor System with |
Dyna-Cut Standard Flexible Rotary Dies
| Product Name | Item Number |
| Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Bracket Invitation (12" x 18" Sheet, 4-Up) | 05CMDINBR57 |
| Dyna-Cut Standard Flexible Rotary Die - 2" x 3.5" Business Card with Square Corners (12" x 18" Sheet,21-Up) | 05CMDBCSC352 |
| Dyna-Cut Standard Flexible Rotary Die - 8.25" x 3" Round Hook Door Hanger (13" x 19" Sheet, 6-Up) | 05CMDMRHDH825 |
| Dyna-Cut Standard Flexible Rotary Die - 3.5" x 2.5" Playing Cards (13" x 19" Sheet, 16-Up) | 05CMDPC3525 |
| Dyna-Cut Standard Flexible Rotary Die - 3.5" x 2.5" Playing Card Box (13" x 19" Sheet, 4-Up) | 05CMDPCB3525 |
| Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Scalloped Invitation (12" x 18" Sheet, 4-Up) | 05CMDINSC57 |
| Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Ticket-Style Invitation (12" x 18" Sheet, 4-Up) | 05CMDINTS57 |
