Product Description

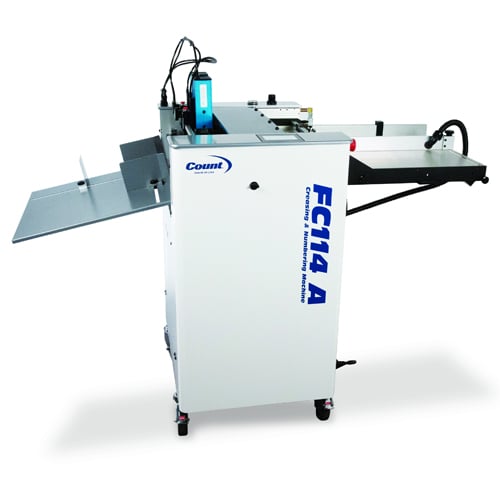

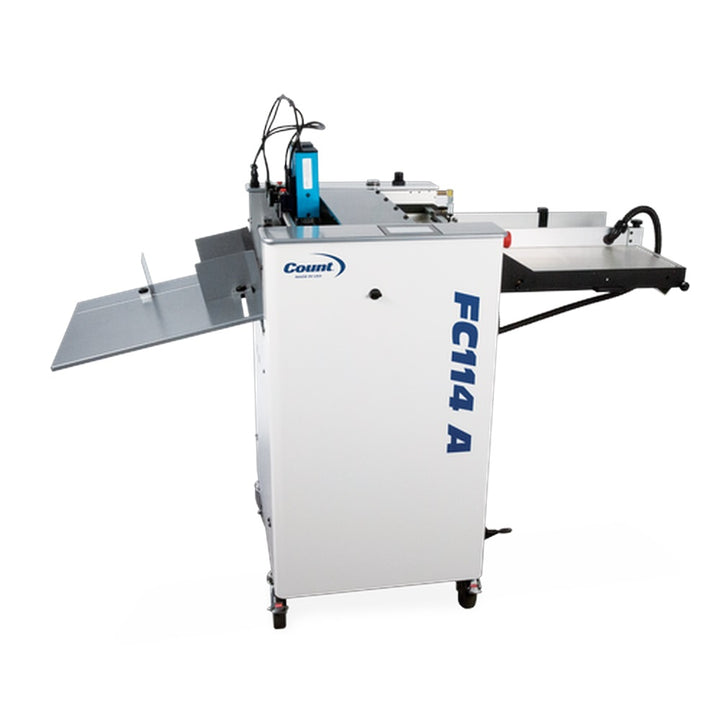

With the investment in a single machine, you can handle high quality perforating, creasing and numbering all-in-one with Count FC114 A Air-Fed Digital Creasing/Perforating/Numbering Machine. This machine delivers accurate rotary-actuated creasing with 2 crease widths, pneumatic numbering up to 24 times per sheet virtually anywhere on the sheet, plus perforation and optional micro-perfing. If you are looking for a compact, incredibly easy to use and highly versatile "all-in-one” solution that includes automatic "one-touch”"set-ups, then this Count FC114 A Air-Fed Digital Creasing/Perforating/Numbering Machine.
Product Details
- Simple programming allows you to number, perforate or crease individually.
- Creasing:
- Rotary-actuated impact creasing.
- Two-sided creasing die - one side has a narrow crease and the other a wide crease for heavier stock to change, simply remove the die and flip it over.
- Automated Distance Recognition - allows auto setups for your most common creases and corresponding folds.
- Numbering:
- Includes reliable pneumatic, Gothic wheel reverse numbering heads - with 7 digits, 4 drop zeros and 4 repeats.
- Program each numbering head individually for multiple numbering.
- Flexibility to apply numbers virtually anywhere on a sheet - from lead edge, place numbers within 1 mm of previous number.
- Number single sheets, or crash number up to a 10-part carbonless form.
- Choice of black or red ink, in patented self-inking disposable cartridges - no re-inking required! - for approx. 25,000 impressions per cartridge.

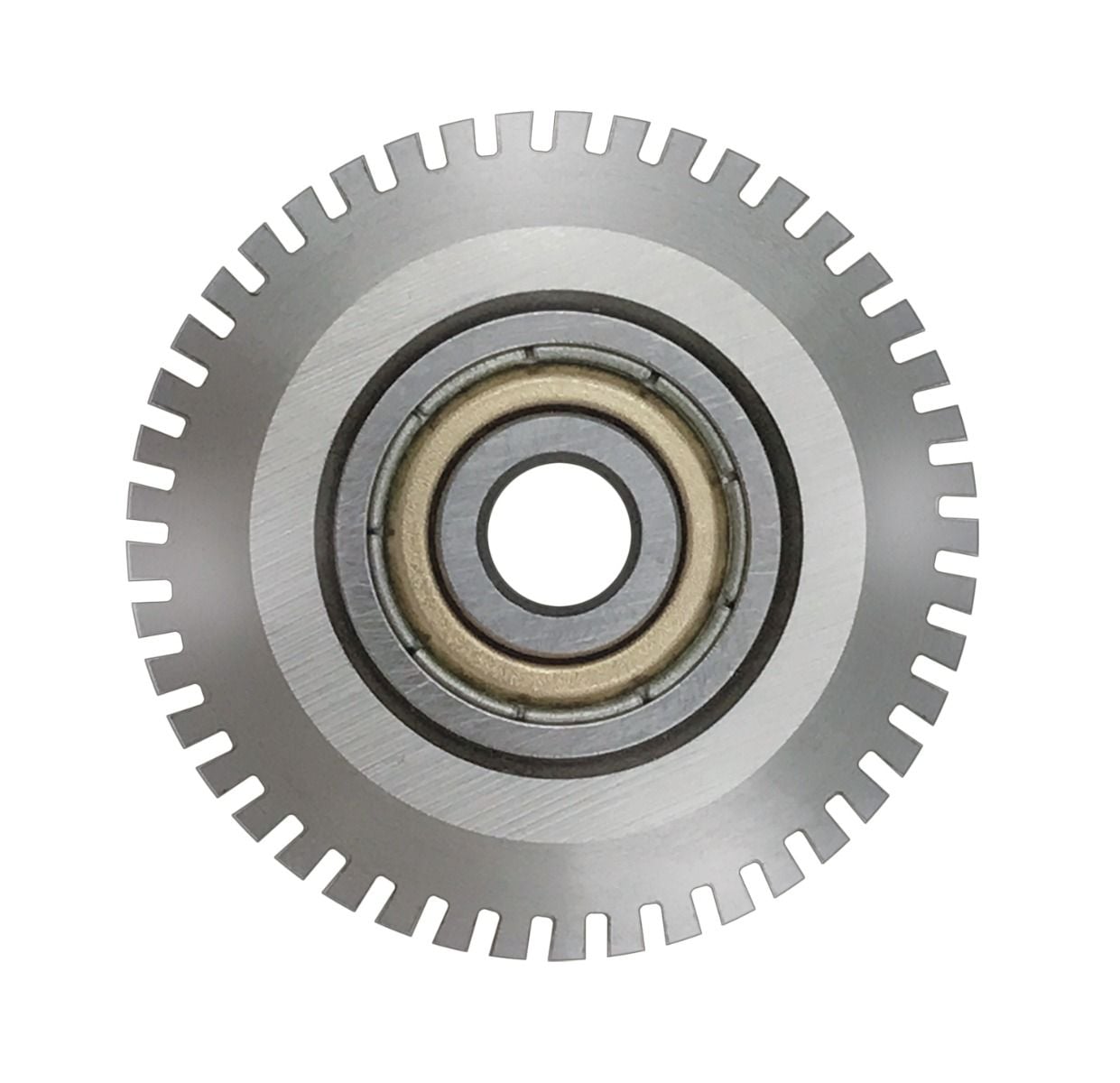

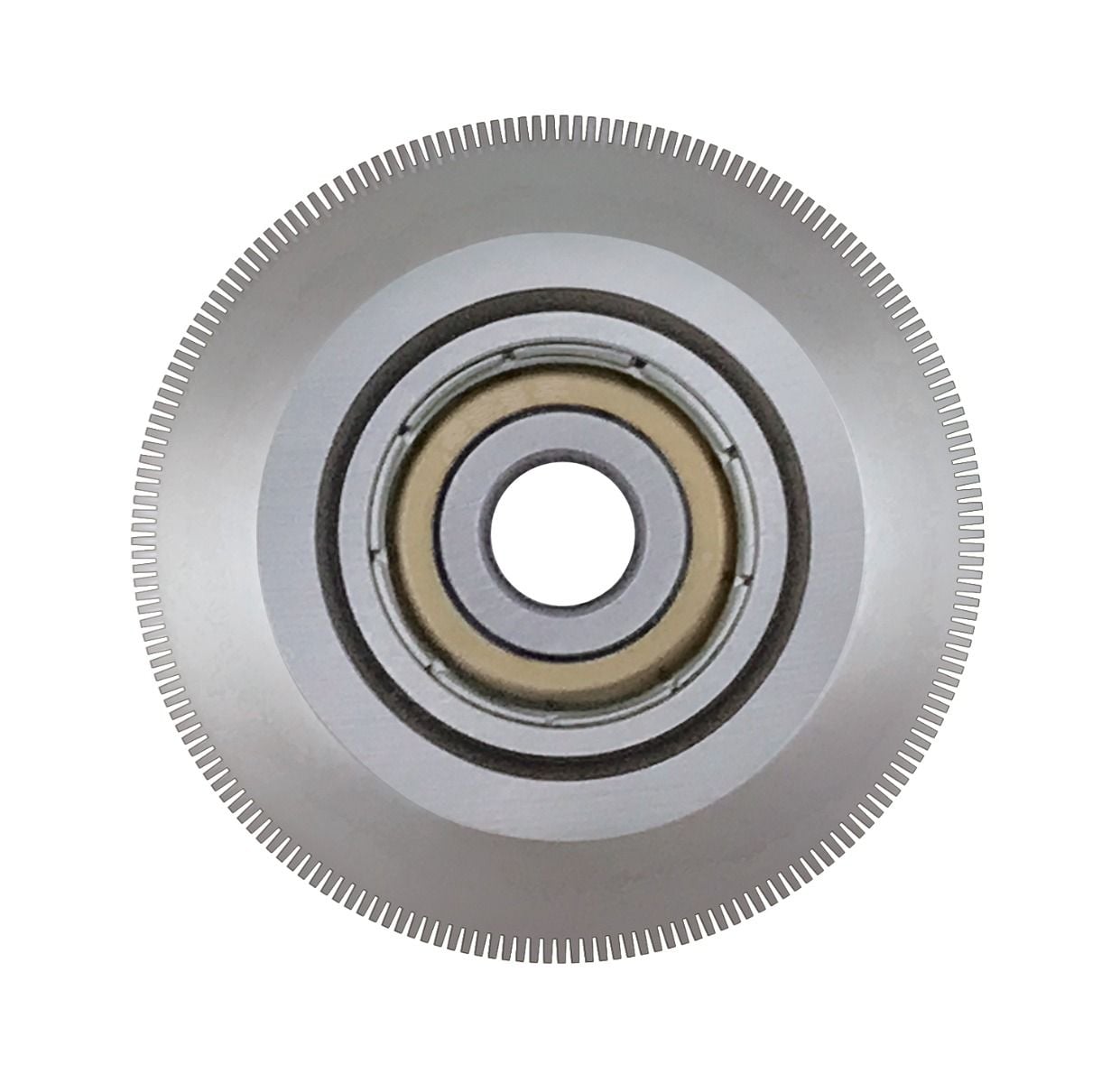

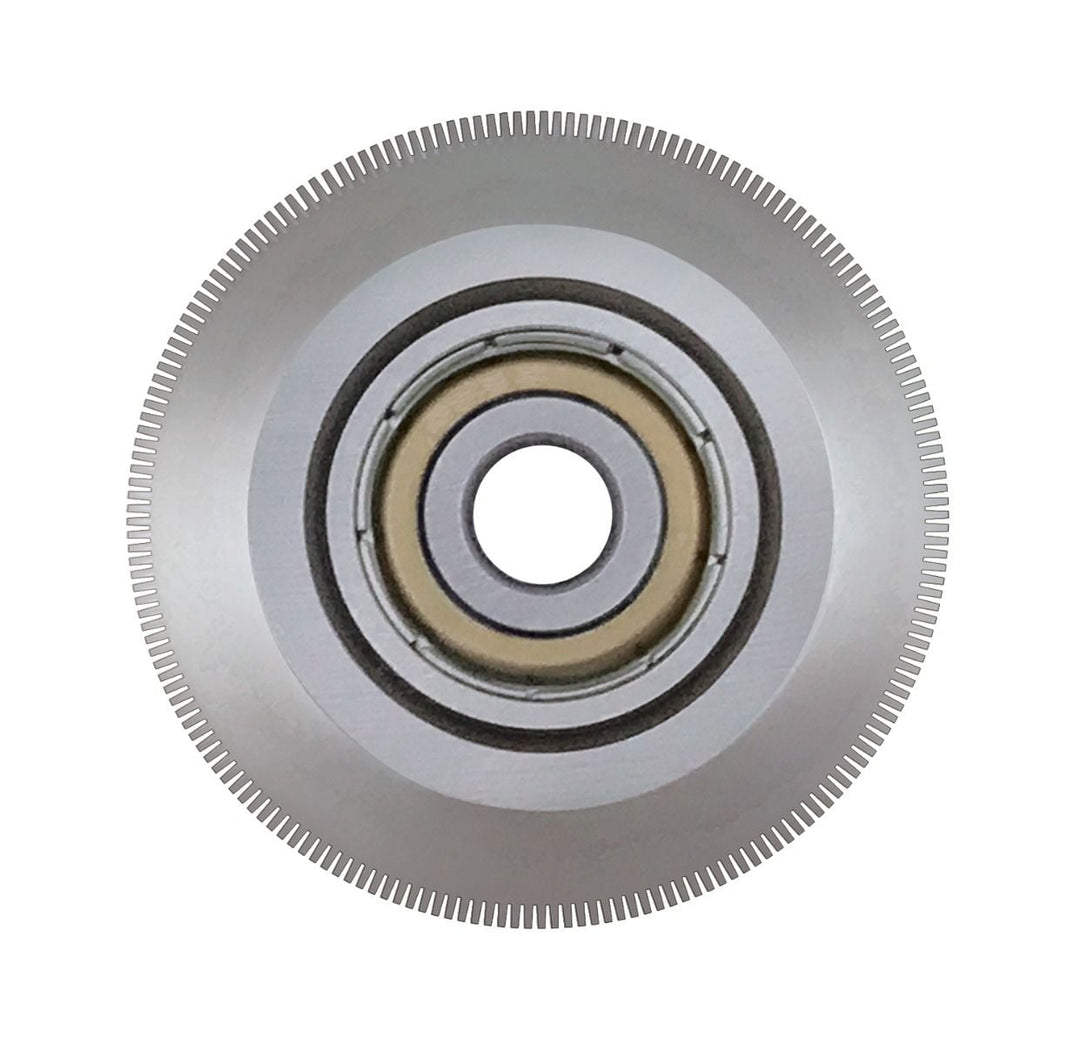

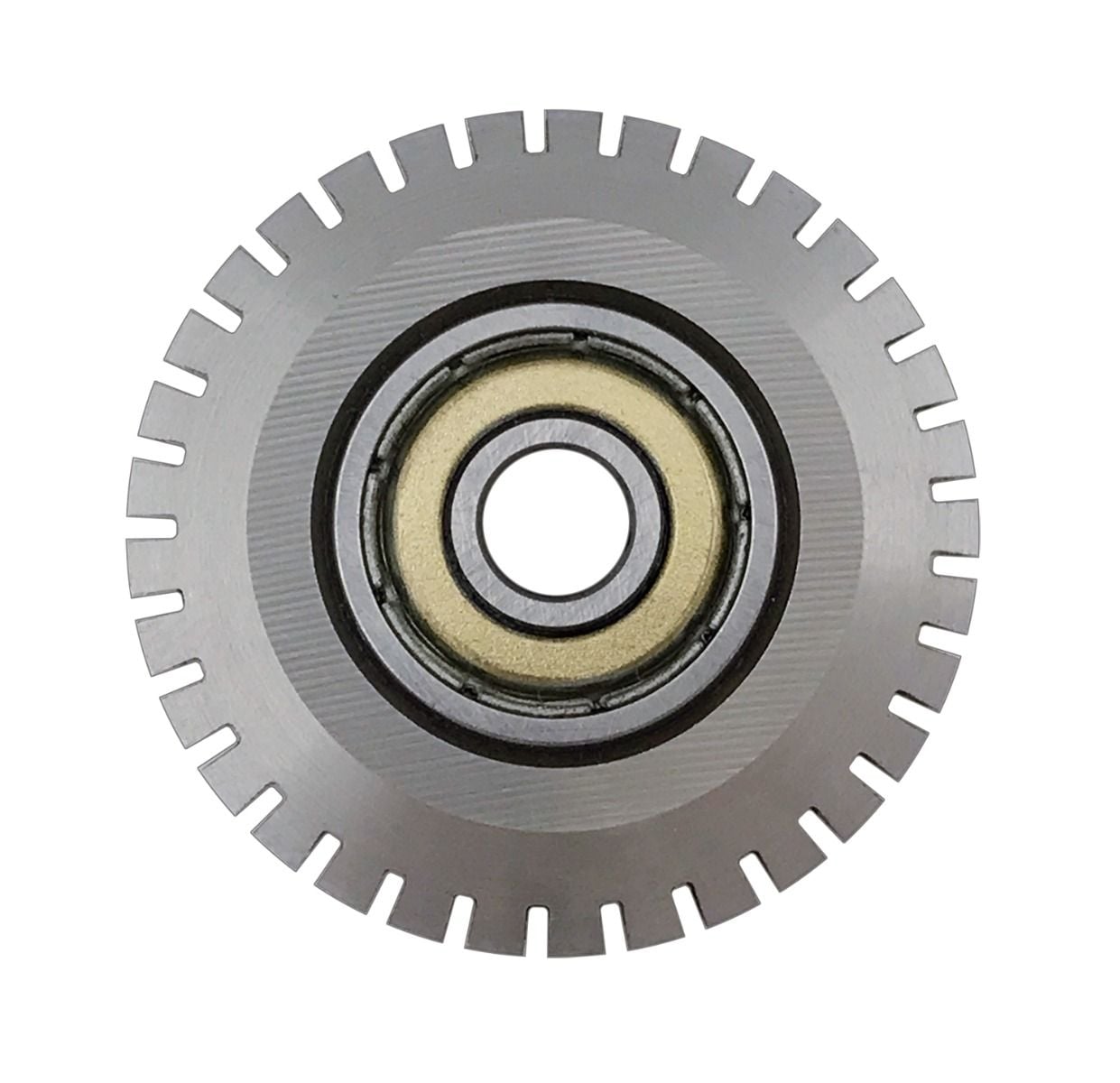

- Complete perforating assembly included, with linear perf capabilities up to 4 perfs per sheet - Optional micro-perf and score wheel assemblies are available.
- Accommodates inline folder (see COUNT KF-200); add inline transport to feed into CountCoat UV coater.
- User-friendly touch screen for easy set up and control of the machine.
- One year Manufacturer's Warranty on electrical and mechanical parts.
- 180 Day Manufacturer's Warranty.
Specifications
- Weight: 487 lbs. (100 kg)
- Shipping Weight: 512 lbs.
- Max Compression Crease (sheets per hour): 4,500
- Max Numbering Speed (sheets per hour): 8,000
- Max Rotary Perf/Score Speed (sheets per hour): 12,000
- Paper Weight Range (gsm): 60 - 350
- Dimensions: 63" L x 29" W x 43" H in (160.0 x 73.7 x 109.2 cm)
- Shipping Dimensions: 49" L x 35" W x 53" H (125 x 188 x 277 cm)
- Max Sheet Size: 18" x 24" (45.7 x 50.8 cm)
- Min Sheet Size: 4.5" x 6" (12.7 x 15.0 cm)
- Electrical: 110/220 V, 50/60 Hz
- Made in: U.S.A.
- Manufacturer's Warranty 180 Day
