Product Description

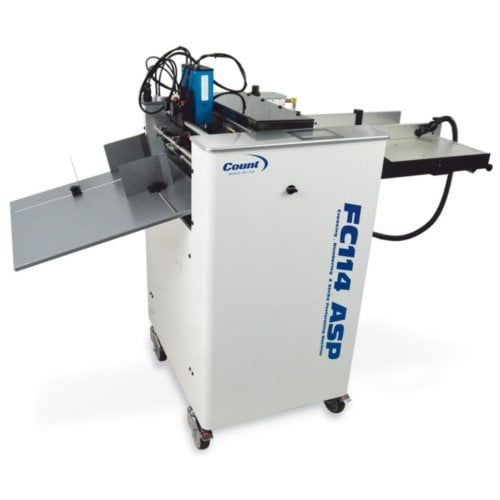

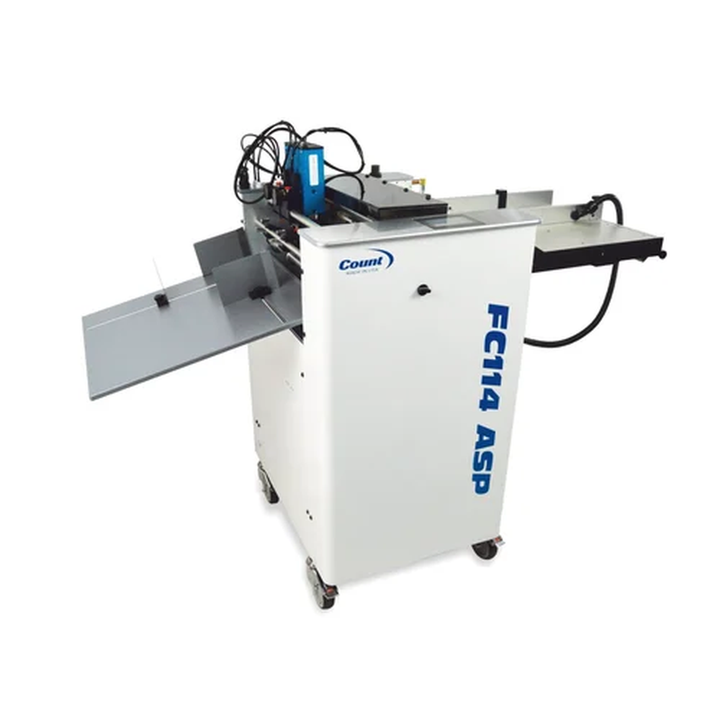

The Martin Yale FC114ASP Digital Creasing, Numbering and Strike Perforating Machine is a 3-in-1 design that can significantly enhance your productivity. You can number, crease, and perforate sheets of paper using only one machine, which will help you cut down both operating costs and time. This machine has a bottom vacuum feed system, a two-sided creasing rod that can handle heavier paper stock, a pneumatic numbering system, and various options for perforating sheets of paper. The numbering feature includes a choice between black or red ink and Gothic wheel reverse numbering heads. All of these features can be used individually as needed.
Product Details
- The FC114 ASP utilizes a bottom vacuum feed system with a register guide.
- Simple programming allows you to number, crease, perforate or strike perforate individually.
- Creasing Features include:
- CAM actuated compression creasing.
- Two-sided die creasing rod accommodates for heavier stock – simply remove and flip over to change from narrow to wide crease.
- Automated distance recognition – allows auto setups for your most common creases and corresponding folds.
- Numbering Features:
- Includes reliable pneumatic, Gothic wheel reverse numbering heads – with 7 digits, 4 drop zeros and 4 repeats.
- Program each numbering head individually for multiple numbering.
- Flexibility to apply numbers virtually anywhere on a sheet – from lead edge, place numbers within 1 mm of previous number.
- Number single sheets, or crash number up to a 10-part carbonless form.
- Choice of black or red ink, in patented self-inking disposable cartridges – no re-inking required! – for approx. 25,000 impressions per cartridge.

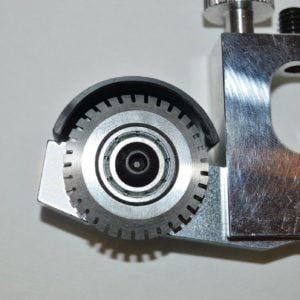

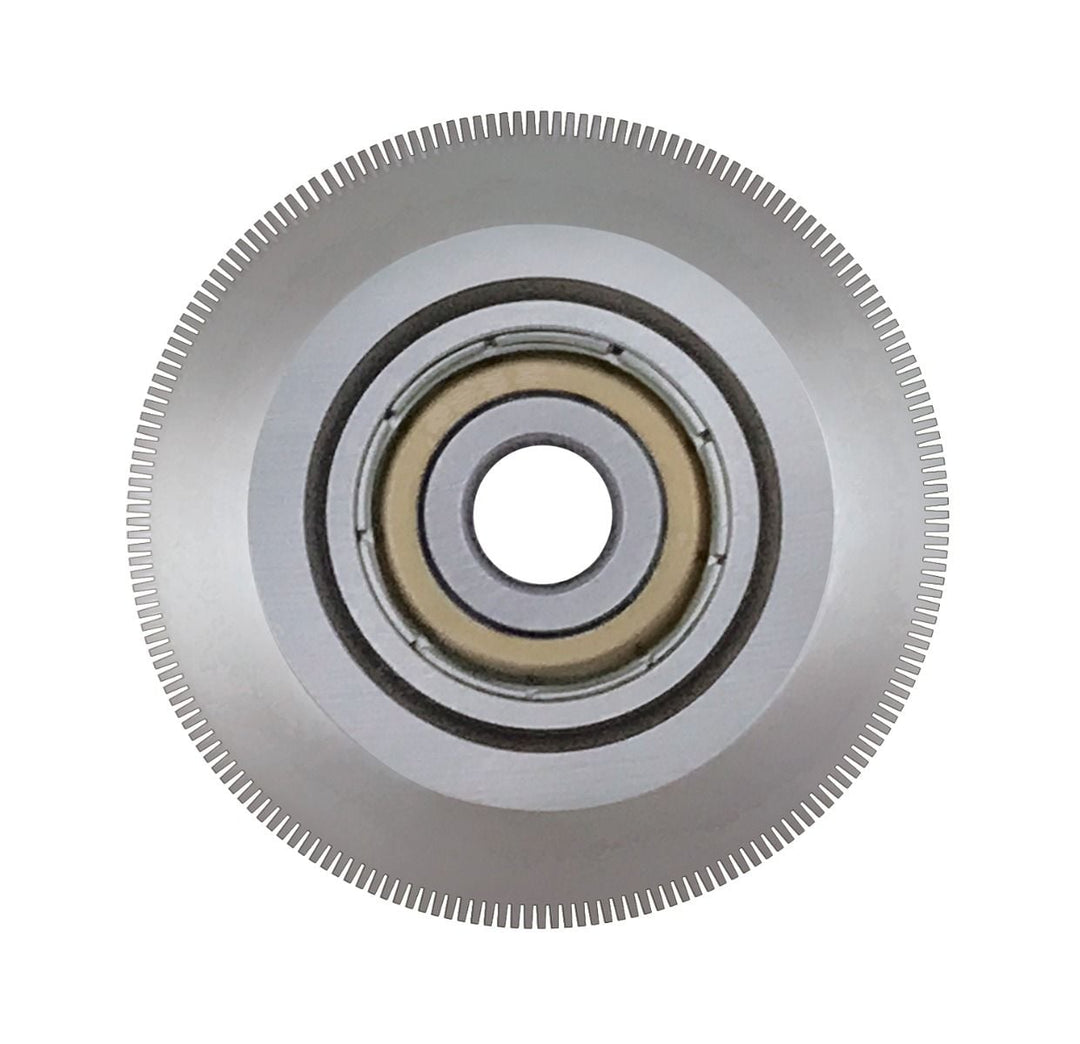

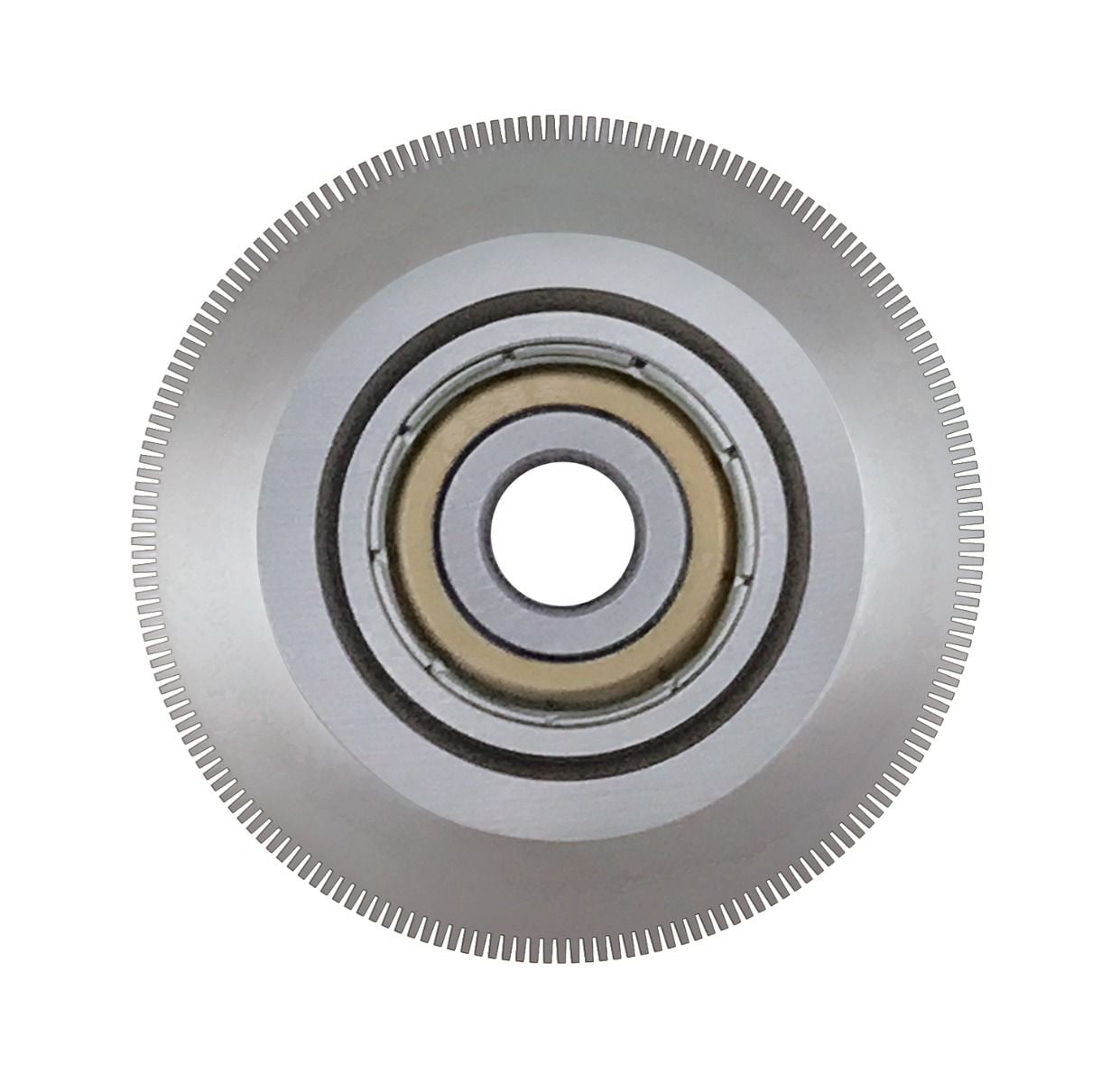

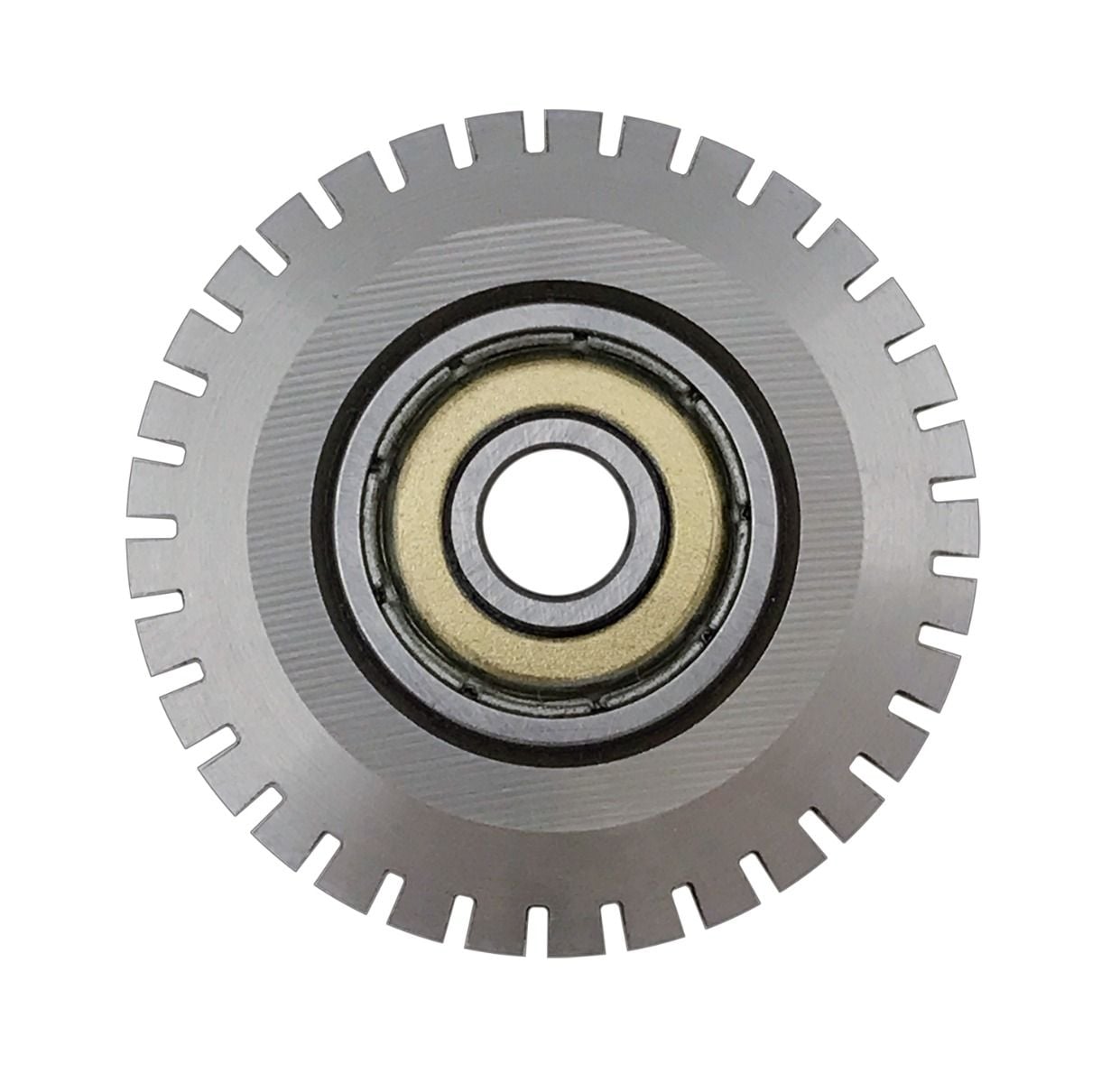

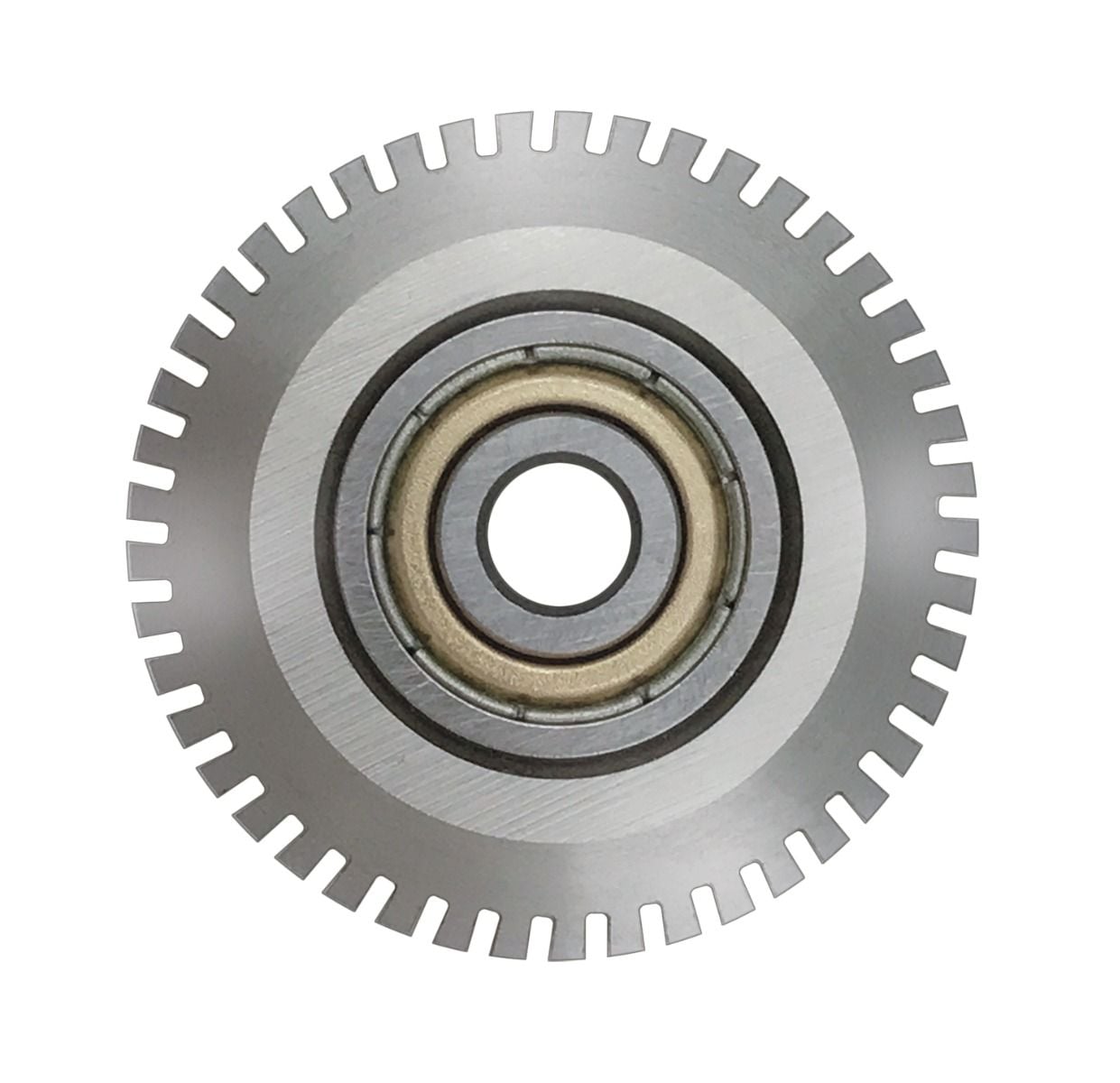

- This product includes one rotary perforating assembly, but can accommodate up to 4 rotary perfs per sheet – additional assemblies sold separately.
- Also includes one strike perforating head assembly, but accommodates up to 2 strike perf assemblies – additional assembly sold separately.
- Optional micro-perf and score wheel assemblies are available.
- Automatic sheet counter for both batch and total counting.
- Accommodates inline folders (see COUNT KF-200).
- User-friendly touch screen for easy set up and control of the machine.
- This machine requires a small air compressor for numbering head operation.
- 180 Day Manufacturer's Warranty (Extended Warranties Available)
Specifications
- Model Number: FC114ASP (vacuum feed)
- Weight: 222 lbs (101 kg)
- Max Compression Crease (sheets per hour): 4,500
- Max Numbering Speed (sheets per hour): 8,000
- Max Rotary Perf/Score and Strike Perf Speed (sheets per hour): 12,000
- Paper Weight Range (gsm): 60 - 350
- Dimensions: 63.0 L x 29.0 W x 44.0 H in (160.0 x 73.7 x 111.8 cm)
- Max Sheet Size: 24.0 L x 18.0 W in (61.0 x 45.7 cm)
- Min Sheet Size: 4.5 L x 6.0 W in (11.4 x 15.2 cm)
- Electrical: 110/220 V, 50/60 Hz
- Made in: U.S.A.
