Product Description

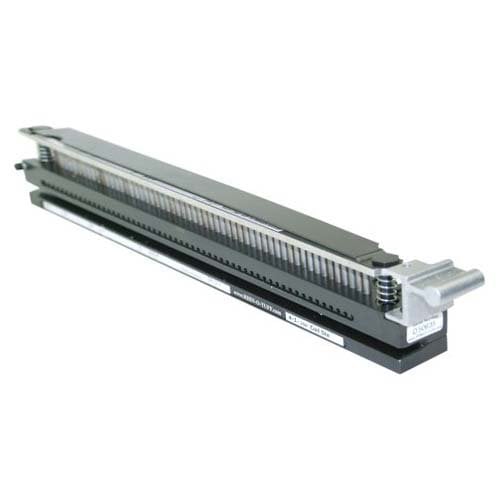

MyBinding.com carries the full line of Rhin-O-Tuff products including their line of heavy duty punches and all of the diesets used in these punches. This dieset is designed for use in either the HD6500 or the HD7000 Punch. The Rhino HD6500 and the HD7000 punches are both 14" open-ended punches and are capable of punching up to 40 sheets of 20# bond paper. The HD7000 uses the Rhin-O-Tuff patented quick change die system while the HD6500 uses a two bolt EZ change slide out die system for changing punch patterns.
Specifications
- 21 Different die sets available.
- Made for Heavy Use.
- EZ die changing.
- 40 Sheet punching Capacity.
Punch Pattern Guide
| Pattern | Part Number | Hole Spacing | Hole Diameter |
| 3 Hole Round Die | 942 | 4-1/4" | 5/16" |
| 2:1 Round Hole Die | 910 | .500 | .250 |
| 3:1 Round Hole Die | 908 | .333 | .172 |
| 4:1 Round Hole Die | 902 | .248 | .188 |
| 4:1 Round Hole Die | 906 | .250 | .172 |
| 5mm Round Hole Die | 911 | 5mm | .140 |
| 6mm Round Hole Die | 909 | 6mm | .172 |
| Velobind Round Hole Die | 903 | 1" | .125 |
| Plastic Comb Rectangular Die | 905 | 9/16" | .125 x .312 |
| 2:1 Pitch Rectangular Die | 904 | .500 | .125 x .250 |
| 2:1 Pitch Square Hole Die | 912 | .500 | .250 |
| 3:1 Pitch Square Hole Die | 907 | .333 | .156 |
| 4:1 Pitch Oval Hole Die | 944 | .2475 | .188 x .157 |
| 4:1 Pitch Oval Hole Die | 945 | .250 | .172 x .138 |
| 6mm Pitch Oval Hole Die | 946 | .2362 | .172 x .138 |
| 3:1 Pitch Round Hole Die With Thumbcut | 000908T | .333 | .172 |
| 4:1 Round Die | 915 | .2475 | .1719 |
| 3:1 Pitch Square Hole Die With Thumbcut | 000907T | .333 | .156 |
| True 5:1 Round Die | 71720 | .200 | .1406 |
| 2.5:1 Round Die | 950 | .400 | .250 |
| 2.5:1 Round Die | 913 | .3333 | .1875 x .1875 |
Video
Rhin-o-Tuff Diesets Demo
