Product Description

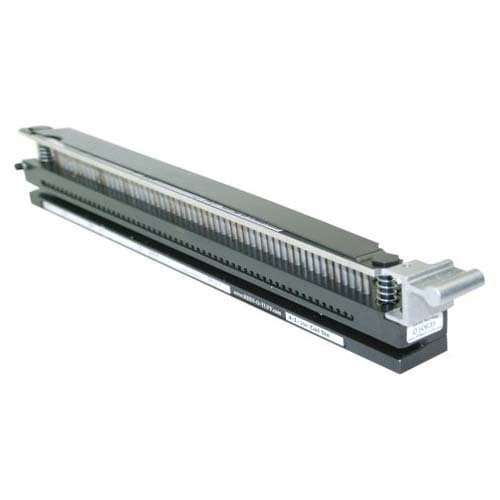

MyBinding.com carries the full line of Rhin-O-Tuff products including their line of heavy duty punches and all of the diesets used in these punches. This dieset is designed for use in the Rhin-O-Tuff OD4012 Punch. The Rhino OD4012 is a heavy duty 11" long binding punch that uses a heavy duty punching motor. The OD4012 uses the Rhin-O-Tuff EZ change die system and each die uses the Rhino swing away die pin retainer allowing you to disengage any punching pin.
Specifications
- Available dies include comb, spiral coil, wire, looseleaf, VeloBind, and more.
- Designed for heavy use.
- Easily slides in and out of the machine.
- Hardened steel dies.
Punch Pattern Guide
| Pattern | Part Number | Hole Spacing | Hole Diameter |
| 3 Hole Round Die | 04130A | 4-1/4" | 5/16" |
| 2:1 Round Hole Die | 74121A | .500 | .250 |
| 3:1 Round Hole Die | 74131A | .333 | .172 |
| 4:1 Round Hole Die | 74155A | .248 | .188 |
| 4:1 Round Hole Die | 74141A | .250 | .172 |
| 5mm Round Hole Die | 74151A | 5mm | .140 |
| 6mm Round Hole Die | 74066A | 6mm | .172 |
| Velobind Round Hole Die | 04100A | 1" | .125 |
| Plastic Comb Rectangular Die | 04235A | 9/16" | .125 x .312 |
| 2:1 Pitch Square Hole Die | 74221A | .500 | .250 |
| 3:1 Pitch Square Hole Die | 74231A | .333 | .156 |
| 3:1 Pitch Round Hole Die With Thumbcut | 74131T | .333 | .172 |
| 3:1 Pitch Square Hole Die With Thumbcut | 74231T | .333 | .156 |
| 4:1 Round Die | 74115A | .2475 | .1719 |
| True 5:1 Round Die | 74153A | .200 | .1406 |
| 2.5:1 Round Die | 74229A | .400 | .250 |
| 2:1 Rectangle Die | 74226A | .500 | .125 x .250 |
| 3:1 Square Die | 74293A | .3333 | .1875 x .1875 |
| 4:1 Oval Die | 74444A | .2475 | .188 x .157 |
