Product Description

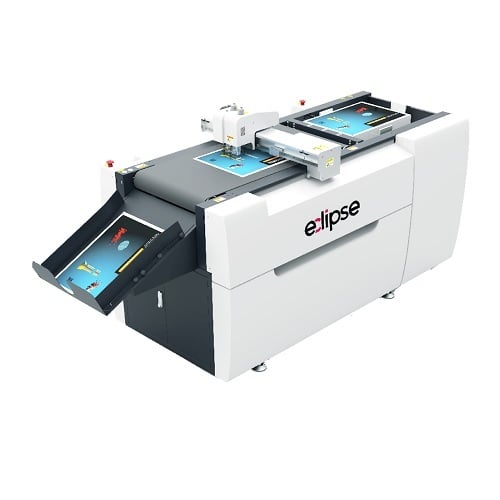

With the Eclipse 1523 Digital Die Cutter, flatbed sheets up to 15 inches by 23 inches can be cut without the use of dies. It is a practical solution for the printing, packaging, and sign industries. It is a cost-effective method for producing short runs of adhesive sheets, business cards, invitations, labels, small packaging, tags, and other items. For die-free cutting, this machine includes an oscillating tool, drag knife, kiss-cut tool, creasing wheel, and ploting pen. It is capable of processing materials up to 6mm thick. It also has an automatic feeding system, a precise automated positioning system for continuous operation, and an integrated touchscreen pc for full operation at your fingertips. Performance and Reliability: No Cutting Dies The Eclipse Plus is integrated with a oscillating tool, cutting tool, creasing wheel tool and plotting pen for die free cutting. Process materials up to 6mm thick. Combination Cutting and Creasing Functions Standard cutting & creasing features include Decal Cut, Kiss Cut, Creasing, and oscillating knife cutting of dense stock. Automatic Positioning System The high-definition CCD camera automatically and positions materials for precise cutting. Automatic Feeding System Fully automatic feeding and conveyor system for continuous cutting of materials for a more efficient workflow and production. Roll Feed Option available for Roll to Sheet processing needs. Stacker Designed for continuous feeding of material stack up to 4.5” tall (400 pieces of 250gsm/92lb cover) Software Eclipse Software standard file recognition of PLT, DXF, HP/GL is compatible with Kasemake, Artios CAD, Corel, Adobe Illustrator, Box magician, etc. QR/Barcode Management System (option) Designed to manage reading of cutting tasks. Productivity You Can Depend On: INCREASE - Capacity and productivity to take on more jobs IMPROVE - Speed and accuracy of production CONFIDENCE - In precision and reliability of output day after day DECREASE - Waste, downtime and labor costs REMOVE - Production obstacles and process in finishing
Product Details
- Up to 4 tools on a single sheet.
- 4kw vacuum power absorption.
- Oscillating tool for up to 6mm thick materials.
- Automatic feeding system for continuous operation.
- Precise automated positioning system.
- QR/Barcode Management System
Specifications
- Material: Paper, foam board, corrugated, card stock, etc.
- Effective work area: 15 x 23 inch (400 x 600 mm)
- Maximum cutting speed: 1000mm/s (39 inch/s)
- Effective cutting thickness: 6mm
- Material capacity: Up to 4.5 inch (400 pieces of 250gsm/92lb cover)
- Cutting accuracy: 0.1mm (.004 inch)
- Data format: PLT, DXF, HP/GL
- Tools mountable: Up to 3 (including creasing wheel) on 3 head units
- Display: PC & Monitor

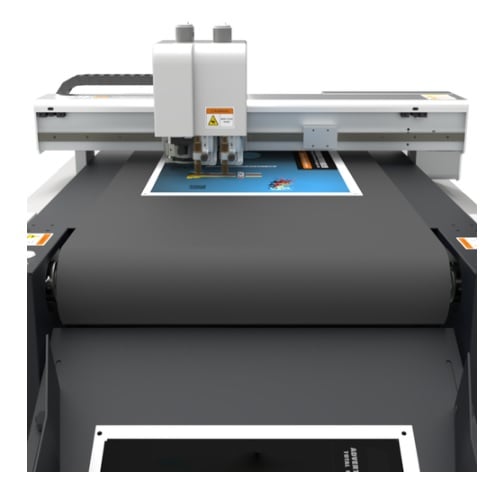

- Media hold: Vacuum / Conveyor
- Voltage: 220 V single phase
- Vacuum pump power: 4kw

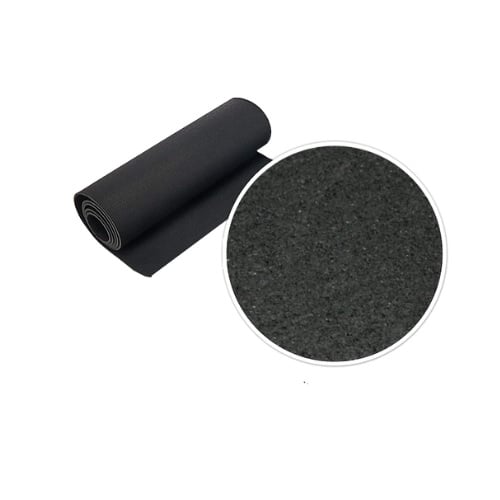

- Work surface: Felt mat
