Product Description

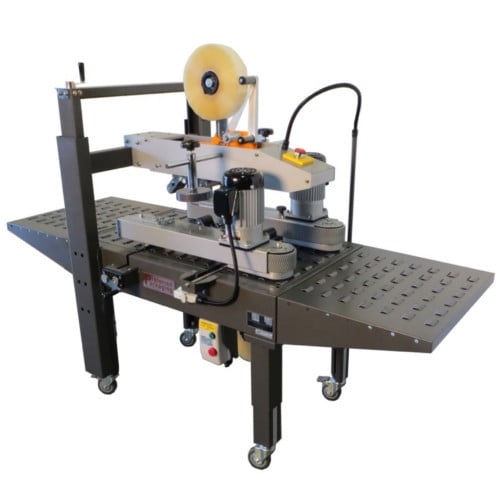

The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The CT-50 applies a single tape strip to both the top and bottom of the case simultaneously. This two belt drive design is a heavy duty versatile machine designed for dependable performance and easy operation. The CT-50 can be easily adjusted in only seconds to process a different size carton. Excellent for low profile, small, lightweight boxes.
Product Details
- Standard Features:
- "Patended" Tape Head with "Easy Thread" Design
- Interchangeable Tape Heads
- Side Pressure Rollers to Close Box Top
- 2 Side Drive Belts - Positive Feed
- Heavy Duty Locking Casters
- Fully Adjustable Legs
- Optional Features:
- 3" (72mm) Tape Heads
- In-feed Conveyor
- Exit Conveyor
- Stainless Steel Frame
Specifications
- Carton Size:
- Length: 6" min. to infinite
- Width: 4" min. to 20" max.
- Height: 4" min. to 20" max.
- Machine Size: 36'L x 27"W x 53"H
- Machine Speed: 75ft./min. up to 2500 cartons per hour (Production rate depends on carton size and operator dexterity)
- Electrical: 110 Volt, 1 Phase, 10 Amp
- Weight: 260 lbs.
- Shipping Weight: 310 lbs.
- Max. Box Weight: 65 lbs.
- Tape Head Specs: 2" (48 mm) Wide - 1,000 yard or 1,500 yard rolls
- Warranty: 1 Year on all parts
