Product Description

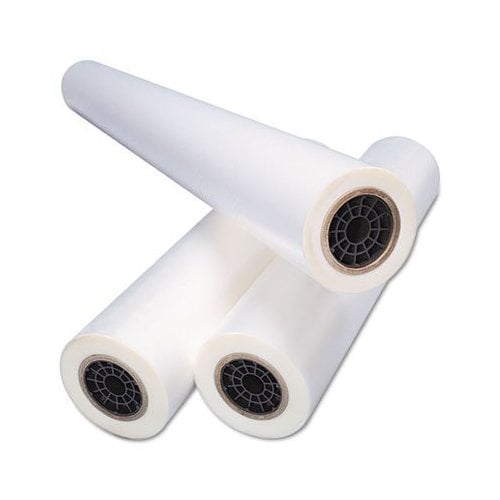

This 51" x 150' Facemount adhesive is an optically clear pressure sensitive mounting adhesive protected on each side by a clear polyester release liner. It is available with permanent adhesive on both sides or as a permanent / removable adhesive combination. The 51" x 150' Facemount is engineered for face mounting virtually any image to clear substrates such as PetG, acrylic Plexiglas and polycarbonate. It is also appropriate for lenticular applications and backlit display transparencies, such as Duratrans. When applying Facemount adhesive, it is important to pay extra attention to the cleanliness of both the image and mounting substrate. The filmic release liner creates an electrostatic charge that can attract dust particles. Small dust particles will become visibly noticeable if trapped between the adhesive and your substrate. Product number PSF51150.
Product Details
- Recommended for second surface mounting (commonly referred to as face mounting) of images to clear substrates, such as PetG, Plexiglas, acrylic, polycarbonate, and glass.
- Ideal for lenticular imaging applications, backlit display transparencies, touch screen displays, and high quality photographic and inkjet printed images.
- Suitable for indoor and short-term outdoor use.
Specifications
- Roll Width: 51"
- Roll Length: 150'
- Core Size: 3"
- Release Liner: Siliconized 1 Side PET
- Adhesive: Permanent Solvent Acrylic (Pressure Sensitive)
- Film: Clear PET
- Film Thickness: 1mil (25µ)
- Adhesive Layer: 0.9mil (23µ) on each side
- Film/Adhesive Ratio: 0.9:1:0.9
- UV Protection Factor: UV Stable
- Outdoor Durability: 2 years
- Service Temperature Range: -40°F to 212°F (-40°C to 100°C)
- Peel Strength (20 min, FTM1): 12.8 N/25mm (glass 24 hours)
- Shelf Life: Use within 1 year after opening original box
- Storage Conditions: 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity
- Compatible Equipment: 3" Core Pressure Sensitive Roll Laminators
Technical Data
Facemount is a 1 mil (25µ) high quality, optically clear PET film, coated on both sides with a pressure sensitive, permanent solvent acrylic adhesive, both of which are protected by a clear PET release liner. Facemount is made using the finest optical clarity components. It offers excellent UV stability to graphic prints.Typical Applications
- Recommended for second surface mounting (commonly referred to as face mounting) of images to clear substrates, such as PetG, Plexiglas, acrylic, polycarbonate, and glass.
- Ideal for lenticular imaging applications, backlit display transparencies, touch screen displays, and high quality photographic and inkjet printed images.
- Suitable for indoor and short-term outdoor use.
Product Structure
| Release Liner | Siliconized 1 Side PET |
|---|---|
| Adhesive | Permanent Solvent Acrylic (Pressure Sensitive) |
| Film | Clear PET |
Physical Characteristics
| Film Thickness | 1 mil (25µ) |
|---|---|
| Adhesive Layer | 0.9 mil (23µ) on each side |
| Film/Adhesive Ratio | 0.9:1:0.9 |
| UV Protection Factor | UV Stable |
| Outdoor Durability | 2 years |
| Service Temperature Range | -40°F to 212°F (-40°C to 100°C) |
| Peel Strength (20 min, FTM1) | 12.8 N/25mm (glass 24 hours) |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Room temperature to 104°F (40°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | Not recommended | |
