Product Description

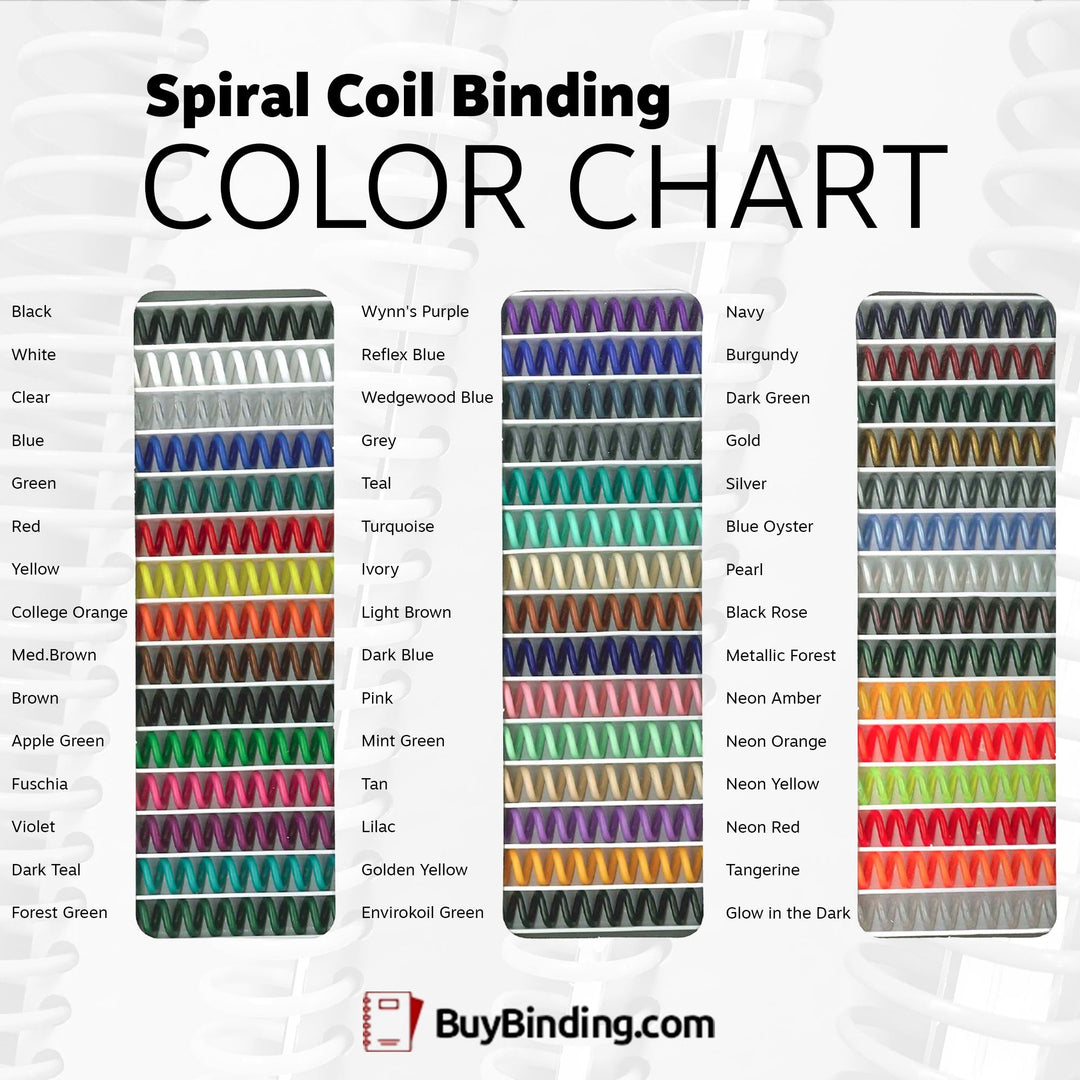

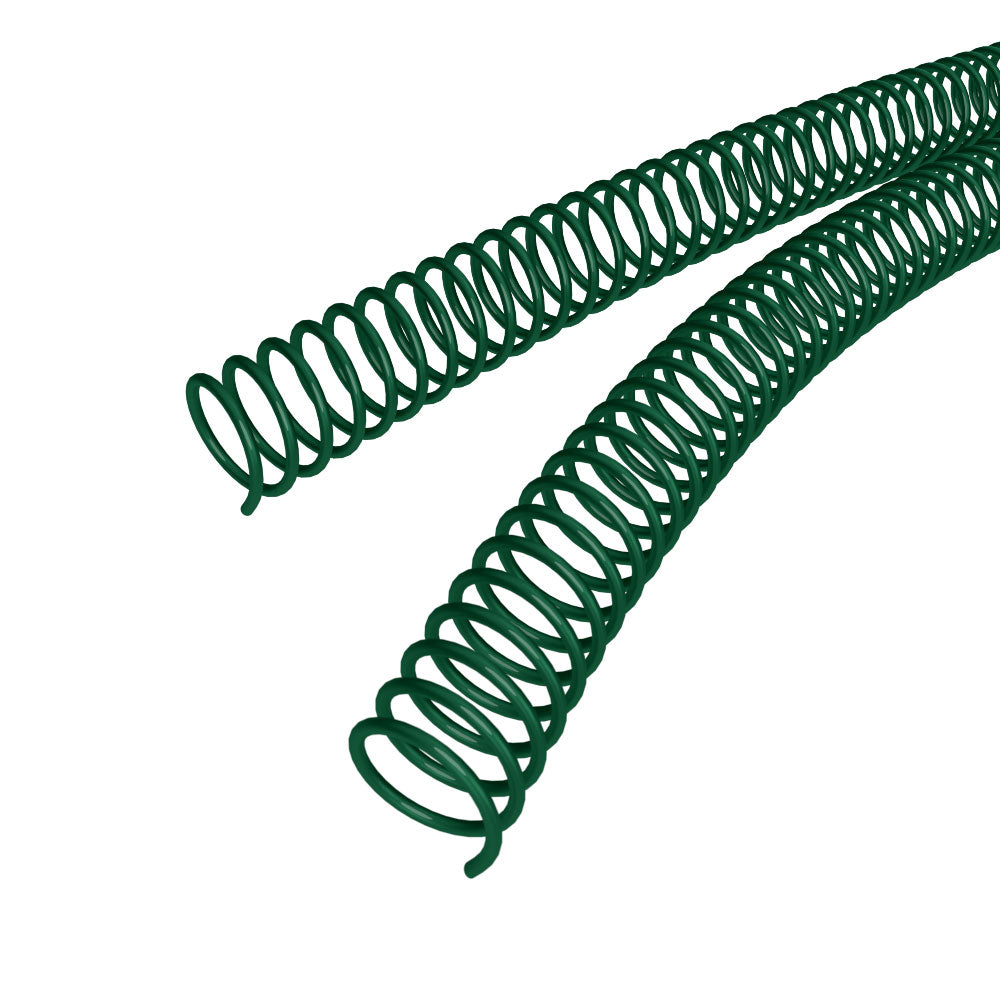

These forest green spiral binding coils are designed for use in any 4:1 pitch spiral coil binding machine. Made from the highest quality food grade PVC plastic our ColorCoil offers a quality, professional look while binding documents up to 2" thick. Although these particular coils are forest green, we carry 4:1 pitch coil in 45 different colors and in sizes up to 50mm in diameter. Plus, all of our forest green binding coils are CPSIA and ROHS compliant and are made in either Canada or the USA (not China). Please note that most of our forest green 4:1 pitch coil is made to order, is non-returnable and can take an extra 3 - 5 business days to ship. If you need this product in a hurry please give us a call for options before ordering.
Product Details
- Product Type: Coil Binding Spines
- Color: Forest Green
- Diameter: 6mm - 50mm
- Pitch: 4:1 (4 Holes Per Inch)
- Approximate Capacity: 30 - 440 Sheets (20# Bond)
- Length: 12" Letter (or choose other length)
- PMS Color: 343C
- Quantity: 100pk
Coil Sizing Guide
| Coil Diameter | Part Number | Fractional Equivalent (approx.) | Maximum Thickness of Document including Covers | Sheet Capcity (20# Bond) |
| 6mm | P115-06-12 | 1/4" | 4mm - 5/32" | 30 |
| 7mm | P115-07-12 | 9/32" | 5mm - 3/16" | 42 |
| 8mm | P115-08-12 | 5/16" | 6mm - 7/32" | 54 |
| 9mm | P115-09-12 | 11/32" | 7mm - 1/4" | 65 |
| 10mm | P115-10-12 | 3/8" | 8mm - 5/16" | 75 |
| 11mm | P115-11-12 | 7/16" | 9mm - 11/32" | 85 |
| 12mm | P115-12-12 | 15/32" | 10mm - 3/8" | 92 |
| 13mm | P115-13-12 | 1/2" | 11mm - 13/32" | 105 |
| 14mm | P115-14-12 | 9/16" | 12mm - 7/16" | 115 |
| 15mm | P115-15-12 | 19/32" | 13mm - 1/2" | 125 |
| 16mm | P115-16-12 | 5/8" | 14mm - 17/32" | 135 |
| 17mm | P115-17-12 | 21/32" | 15mm - 9/16" | 142 |
| 18mm | P115-18-12 | 11/16" | 16mm - 5/8" | 155 |
| 19mm | P115-19-12 | 23/32" | 17mm - 11/16" | 160 |
| 20mm | P115-20-12 | 3/4" | 18mm - 23/32" | 172 |
| 22mm | P115-22-12 | 7/8" | 20mm - 3/4" | 190 |
| 23mm | P115-23-12 | 15/16" | 21mm - 27/32" | 200 |
| 25mm | P115-25-12 | 1" | 22mm - 7/8" | 220 |
| 28mm | P115-28-12 | 1-1/8" | 25mm - 1" | 250 |
| 30mm | P115-30-12 | 1-3/16" | 27mm - 1 1/16" | 270 |
| 32mm | P115-32-12 | 1-1/4" | 29mm - 1 1/8" | 280 |
| 35mm | P115-35-12 | 1-3/8" | 32mm - 1 1/4" | 310 |
| 38mm | P115-38-12 | 1-1/2" | 34mm - 1 5/16" | 330 |
| 45mm | P115-45-12 | 1-3/4" | 41mm - 1 5/8" | 390 |
| 50mm | P115-50-12 | 2" | 46mm - 1 13/16" | 440 |
