Product Description

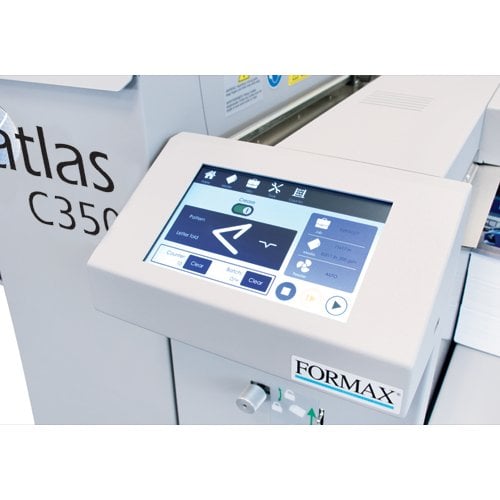

Be impressed with the Formax Atlas C350P High-Speed Automatic Creaser/Folder. This high-speed creaser/folder combines the well-loved elements from previous Atlas models with new features for unmatched capabilities in professionally finishing digitally printed sheets. The folder still has the single-pass high-speed creasing and folding and dynamic creasing matrix and the patented floating knife folding mechanism that can process media up to 6,000 sheets per hour. The unique matrix eliminates the problem of cracking in digital printouts by compressing paper fibers in lieu of cutting thus eliminating unsightly cracks on the creased or folded edge. A user-friendly 7” color touchscreen control panel with bold icons and intuitive steps gives the folder a fresh upgrade. The fully automatic setup allows users to input the sheet length, weight, and fold type using the color touchscreen; the Atlas C350 automatically calculates and sets the crease positions for accurate and precise folding. Custom and repeat jobs can be stored in the folder’s extensive memory that can accommodate an unlimited number of programs. To accommodate larger media, the folder is equipped with a flexible infeed and outfeed system; a top-loading vacuum infeed allows for quick handling of media stacks up to 7.9 inches high, the feed table extension can accommodate sheets up to 51" long. A new two-in-one output configuration that includes a fully-automatic belt stacker for folded sheets and a catch tray capable of handling creased sheets up to 35" long is another upgrade to watch out for. Switching from creasing to folding can be done without reconfiguring the machine as it can be done right from the control panel. Optical sensors aid in the faultless feeding of sheets and automatically makes adjustments when needed. The blade matrix requires no tools in swapping creasing and perforating blades, changing of blades can be done in as fast as 30 seconds. The C350P can also be used as a stand-alone creaser, or as a perforator when creasing and folding are not required. Rugged metal construction and compact make the folder an ideal addition to print shops and production facilities with limited spaces. The Atlas C350P is equipped with a 2nd creasing/perforating blade kit that allows for single-pass up and down creasing along with cross/partial perforation for hinges, book covers, multi-panel brochures, and tear-off applications. Standard equipment includes an in-line rotary perforation kit, which allows for creasing, perforating and folding in a single pass. An optional cross perforating blade kit can be used to combine creasing and cross perforating for a variety of jobs including brochures with tear-offs. Expand digital print finishing capabilities with a fully-automatic, user-friendly creaser/folder, consider Formax Atlas C350P High-Speed Automatic Creaser/Folder with 2nd Creaser/Perforation Kit & Pile Feeder.
Product Details
Features:- Vacuum Top-Feed Infeed Table: Offers a media loading capacity of up to 7.9” high, with optical sensors to control sheet separation and make adjustments on-the-fly.
- Two-in-One Outfeed: Fully automatic belt feeder for folded sheets, and a catch tray for crease-only jobs which can accommodate sheets up to 35” long.
- Fully Automatic Setup: Settings are automatically adjusted based on sheet size, weight and crease/perforation type.
- Lifetime Guaranteed Creaser Matrix: Heavy duty channel and anvil matrix is designed to last.
- Color Touchscreen: Intuitive, user-friendly interface with bold icons.
- Infeed Table Extension: Accommodates media up to 51” long.
- Programmed Creases: Common creases are simple to call up on the touchscreen.
- High-Speed Processing: Up to 7,500 sheets per hour (single crease only).
- Programmable Jobs: Users can store and recall an unlimited number of custom jobs.
- Quick Change Creasing Matrix Kits: Easy to swap in and out in just seconds, with no tools required.
- Floating Knife Folding System: Sheets pass through the dynamic creasing matrix, then through the patented folding mechanism, designed to prevent marks and scratches on digitally printed media.
- Flexible: Powerful creasing unit accepts standard, narrow, and ultra narrow creasing blades, as well as optional cross perforation blades.
- In-Line Rotary Perforation: Perforate and crease in a single pass
Options:
- Additional Creasing Matrix Kit: Works in conjunction with the standard creasing matrix to produce up/down creasing for hinges, book covers and complex brochures, all in a single-pass.
- Cross/Partial Perforation Kit: Ideal for full and partial perforating along the width of the sheet. Can be used alone or with the rotary perforating kit to produce tear-off tickets and vouchers (see image below).
- Narrow and Ultra Narrow Creasing Matrix Kits: Ideal for creasing various paper weights.
Specifications
- Speed:
- Up to 6,000 sheets per hour, half fold* (8.5” x 11.5”)
- Up to 7,500 sheets per hour, single crease only
- Sheet Size:
- Max: 27.6” x 15.2” (51” x 15.2” w/infeed extension table)
- Min: 8.3” x 3.7”
- Paper Thickness: Max: 0.0157” (400gsm) Min: 0.0035” (75gsm)
- Creases per Sheet: Up to 30
- Min. Repeat Crease Distance: 0.004”
- Programmable Jobs: Unlimited
- Max. Loading Capacity: Up to 7.9”
- Outfeed: Belt conveyor stacker, catch tray
- Dimensions: 84” L x 29” W x 55” H (118” L with infeed extension)
- Weight: 689 lbs.
- Power: 100-240VAC, 8-4A, 50/60 Hz
- Spiral / Binding101 Part Number: 04FXATLASC350P
