Product Description

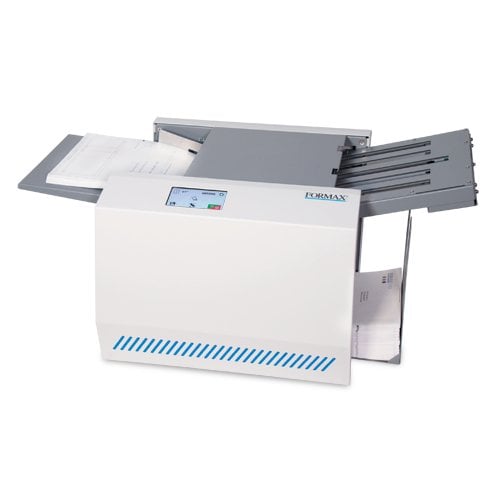

The Formax FD 1606 AutoSeal offers a user-friendly mid-volume pressure seal solution for processing one-piece pressure-sensitive mailers. Pressure seal forms including checks, invoices, and marketing pieces are folded and sealed in one piece saving time and money by eliminating the need for envelopes. This machine features automatic fold settings, a full-color touchscreen, and a three-tire drop-in feed system that allows the users to complete mailings with ease. Its touchscreen uses internationally-recognized symbols in place of text, making it easy for anyone to use. It is pre-programmed to automatically adjust in 5 different fold types in 11-inch or 14-inch lengths. In addition, it also has the ability to store up to 3 different custom folds and has a resettable 6-digit counter that keeps track of the number of forms processed. Proudly made in the USA with the proven Formax Technology, the FD 1606 AutoSeal provides an economical solution with quality and reliability you expect from Formax.
Product Details
- Automatic Fold Plates: Simplifies fold selection and setup.
- Color Touchscreen Control Panel: Easy, intuitive operation.
- Compact Desktop Design: Ideal for limited office space.
- Drop-In Top Feed System: Quick and hassle-free loading.
- 14” Form Length Capability: Supports a wide range of document sizes.
- High-Speed Folding: Processes up to 100 forms per minute.
- 200-Form Infeed Capacity: Reduces downtime for long runs.
- Simple Setup & Operation: Minimal learning curve for efficient workflow.
- Six-Digit Resettable Counter: Accurately tracks production.
- Adjustable Catch Tray: Keeps folded forms organized.
- Adjustable Hopper Side Guides: Ensures precise document alignment.
Specifications
- Hopper Capacity: Up to 200 Sheets 20#
- Fixed Speed: Up to 100 sheets per minute - based on 11” “Z” fold
- Paper Size: Up to 8.5’’ W x 14” L
- Monthly Duty Cycle: Up to 35,000/month
- Power:
- FD Model: 120 Volts AC 50/60Hz
- FE Model: 220 Volts AC 50/60Hz
- Dimensions: 24” L x 17” W x 13” H
- Weight: 82 lbs
- Document Sequence: Standard sequence is A-to-Z input, Z-to-A output
- Certifications: UL, CE and CUL Approved
