Product Description
One-piece mailers have proven to be the most efficient and cost effective in sending postages, streamline your mail processing with AutoSeal FD2056. This table top pressure sealer is designed with productivity and user’s ease of use in mind. Processing at speeds of 16,450 sheets per hour, the sealer will have no trouble processing high demand outputs. The new full-color touchscreen, with internationally-recognized symbols, makes it quick and easy for almost anyone to use with little to no training. From the touch screen control panel, operators can browse through and select from the 5 pre-programmed standard folds that include even panel C, V, Z, and uneven/eccentric C and Z folds. Alternatively, users can also customize and store up to 35 custom fold settings. The sealer detects and adjusts for 11”, 14”, and 17” forms that no manual adjustments or separate settings are needed. Sealing process then starts in the drop-in three-roller feed system which automatically feeds forms with no fanning required, sheets then go through the integrated telescopic conveyor featuring automated nip roller positions. This automated process has simplified and shortened the sealing process that even untrained operators can run the machine little to no instruction. For storage an optional fully enclosed cabinet is available. To make operations even better, users may avail of 402 Series Joggers and the V-Stack36i Stacker that stacks of up to 22” of processed forms making it easier for operators to unload stacked output for further processing. Send out mailers in greater numbers and speed with AutoSeal FD2056.
Product Details
- Operating Features
- Fast!: Large jobs are processed quickly at speeds of up to 16,450 pieces per hour

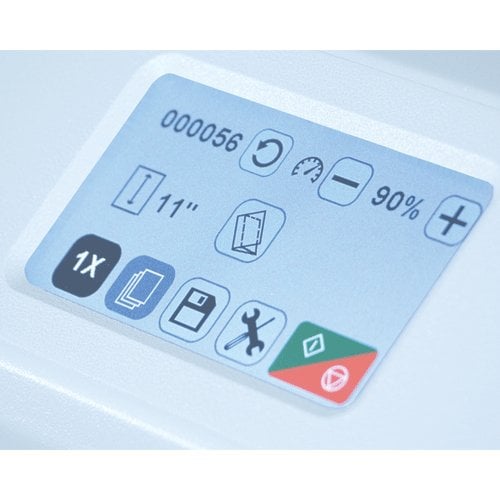

- Color Touchscreen Interface: A large full-color touchscreen control panel allows anyone to walk up and start processing forms in seconds
- Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required
- 17" Form Capability: Flexibility to process forms up to 17" in length

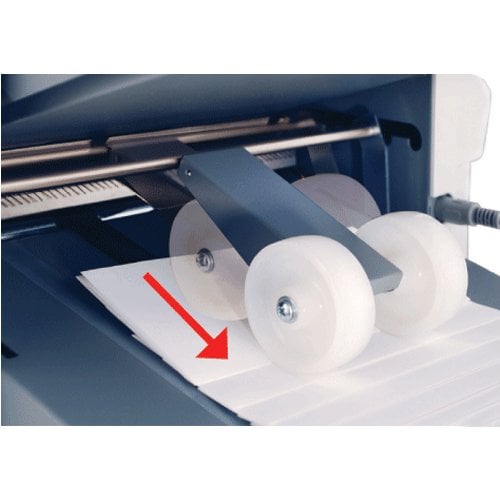

- AutoStack™ Wheels: Fully-automated stacker wheels eliminate moving them by hand when switching form sizes and fold types

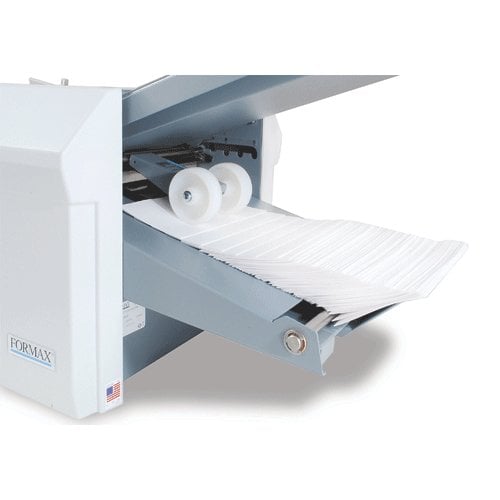

- Integrated Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
- Noise Reduction: Top and side covers are insulated to reduce operating noise, and fold plates are completely enclosed
- Fault Detector: Detects double feeding and any faults
- 6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
- AutoBatch™ Counter: Programmable to process pre-set number of forms into sets with a delay
- Folding Features
- Preset Folds in Common Paper Sizes: Pre-programmed for 5 popular fold types in 11 - 17" forms and uneven C and Z in 14" forms, totaling 11 programmed fold settings
- Stores 35 Custom Folds: Up to 35 custom folds can be programmed and stored into memory
- Standard Fold Settings Modification: Even the preset fold types can be modified individually for each paper size for maximum flexibility and customization
- Technical Features
- Adjustable Feed Table Pressure: Seven positions can be easily chosen to increase or decrease hopper tension to better feed thick and thin paper stocks
- Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Removable Roller Cover: Easily removed for improved access to sealer rollers and exit area

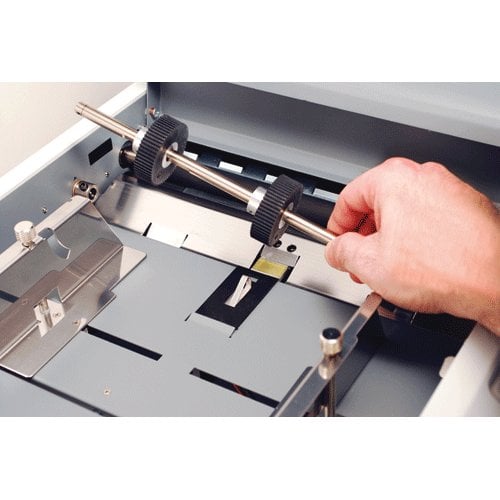

- Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
- Options
- Locking Cabinet: Fully enclosed for storage
- 402 Series Jogger: Reduces static electricity and aligns forms for proper feeding
- V-Stack36i Stacker: Vertically stacks up to 22" of folded documents, making them easier to unload
Specifications
- Speed: Up to 16,450 forms per hour – based on 11" (279mm) Z-Fold
- Hopper Capacity: Up to 500 forms 20#
- Pre-Set Folds: Pre-programmed for C, V, Z in 11 - 17" forms, uneven C and Z 14" forms
- Pre-Set Paper Sizes: FD Model: 11", 14", 17" / FE Model: A5, A4, A3, B6, B5, B4
- Custom Folds: Stores up to 35 custom folds into memory
- Paper Size: Min: 3.5" W x 5" L (88.9 W x 127 L mm) / Max: 12.25" W x 18" L (311 W x 457 L mm)
- Usage: High-volume tabletop
- Dimensions: Closed: 43" L x 21.28" W x 16" H (109 L x 54 W x 41 H cm) / Fully Extended: 55" L x 21.28" W x 16" H (140 L x 54 W x 41 H cm)
- Weight: 127 lbs (97kg)
- Power: 110-240VAC 50/60 Hz
- Safety Certifications: UL & CE applied for
- Made in the USA
- Spiral / Binding101 Part Number: 04FXFD2056
Compare to Similar Pressure Sealers
-
Model NameModelHopper CapacityFixed SpeedPaper SizeFold TypesMonthly Duty CyclePowerDimensionsWeightSafety CertificationsWarranty
-
AutoSeal FD 2056
Up to 500 forms 20#Up to 16,450 forms per hour – based on 11" (279mm) Z-FoldMin: 3.5" W x 5" L (88.9 W x 127 L mm) / Max: 12.25" W x 18" L (311 W x 457 L mm)Pre-programmed for C, V, Z in 11 - 17" forms, uneven C and Z 14" formsN/A110-240VAC 50/60 HzClosed: 43" L x 21.28" W x 16" H (109 L x 54 W x 41 H cm) / Fully Extended: 55" L x 21.28" W x 16" H (140 L x 54 W x 41 H cm)127 lbsUL & CE applied for90 day warranty on parts and labor -
AutoSeal FD 2036
Up to 350 sheets 24# (90gsm)Up to 11,000 sheets per hour - based on 11" (279mm) "Z" foldUp to 8.5’’ W x 14" LN/AUp to 125,000/monthFD Model: 120 Volts AC 50/60Hz, FE Model: 220 Volts AC 50/60Hz25.75" L x 16.5" W x 14.25"8.5 lbsUL , CUL, & CE Approved90 day warranty on parts and labor
Video
Formax AutoSeal FD 2056 High-Volume Tabletop Pressure Sealer Demo Video
Transcript :
