Product Description

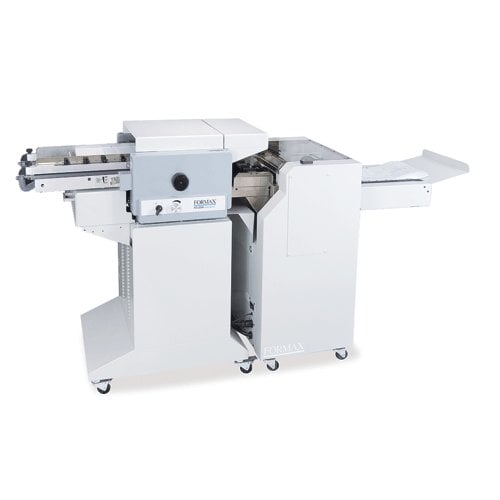

This Formax AutoSeal FD 2096 Mid-Volume Pressure Sealer is a production-level solution for processing pressure seal forms. The FD 2096 replaces the discontinued FD 2094 and features an improved feeding system. It uses a patented pressure seal technology to efficiently process cut-sheet pressure seal forms in a mid-volume production environment, at speeds of up to 30,000 forms per hour. Its bottom-suction air-feed system provides accurate feeding and allows for continual loading of forms, dramatically reducing down time. This Formax AutoSeal FD 2096 has a heavy duty construction combines with quick set-up and operation that makes it a powerful solution for processing mid-volume pressure-seal mailings.
Product Details
- Variable Speed: Large jobs are processed quickly at speeds of up to 30,000 forms per hour.
- Top-Loading Bottom Air Feed: The air feed deck accurately feeds forms, while allowing for continuous top feeding, with no need to stop and reload.
- Resettable Counter: 6-digit LED counter provides maximum audit control.
- Noise Reduction: Covers and fold plates are insulated to reduce operating noise.
- Rugged Construction: Designed for mid-volume production environments.
- Casters for Easy Transport.
- Heavy Duty Fold Rollers: Polyurethane foam rollers eliminate the need for gap ajustments .
- Rugged Fold Plates: Metal fold plates feature metric and standard scales for easy fold setting.
- Air-Feed Pump: Fully enclosed.
- Rotating Air Suction Drum: Located on the feed table, separates sheets for accurate feeding.
- User-Friendly Adjustments: Fold plates feature a 7-point quick-release fold stop, skew adjusment and fine tuning knob.
- Pressure Rollers: Precision ground clutching four-roller system .
- Ball Transport Deck: Adjustable 17" ball-deck provides smooth, efficient transport from the folder into the sealer.
- Fault Detection: Infrared sensor located at the infeed of the sealer detects any faults and sends a signal to stop the folding unit.
- Plexi-Cover: Hinged with a handle to allow quick access to the sealing area. Includes safety interlock to stop the system when opened.
- Static Eliminator Brush: Located on the exit of the sealer to reduce static electricity and assist in the neat, sequential stacking of forms onto the conveyor.
- 24" Outfeed Conveyor: Includes speed control and run-out switch for easy unloading of processed forms.
- Adjustable Stacking Wheels: Help to keep processed forms in a neat, sequential order.
Specifications
- Hopper Capacity: Up to 350 sheets 24#
- Variable Speed: Up to 30,000 forms per hour
- Usage: Mid-Volume Production
- Paper Size: Up to 12" wide, up to 17" long
- Dimensions (Conveyor Extended): 86" L x 28" W x 42" H
- Dimensions (Conveyor Closed): 64" L x 28" W x 42" H
- Weight: 450 lbs
- Power: 120V 60Hz, 30Amp
- Power Plug: NEMA L5-30P
- Manufacturer's Warranty: 90 day limited Manufacturer's Warranty on parts, excluding wearables and labor
- Spiral / Binding101 Part Number: 04FXFD2096
Compare to Similar Pressure Sealers
| Model Name | AutoSeal FD 2096 | AutoSeal FD 2200-10 | AutoSeal FD 2300 Series |
|---|---|---|---|
| Model |  |
 |
 |
| Hopper Capacity | Up to 350 sheets 24# | N/A | FD 2300 (AutoSeal High-Volume Production Pressure Sealer - Air Feed Table): Up to 500 Sheets 24# (90gsm) FD 2300-EX (AutoSeal High-Volume Production Pressure Sealer - Extended Air Feed Table): Up to 1,000 Sheets 24# (90gsm) FD 2350 (AutoSeal High-Volume Production Pressure Sealer - Pile Feeder): Up to 3,500 Sheets 24# (90gsm) FD 2380 (AutoSeal High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster): Continuous Forms |
| Variable Speed | Up to 30,000 forms per hour | Fixed speed of 40,000 forms/hr | Up to 43,000 sheets per hour – based on 11" Z-Fold (279mm) |
| Paper Size | Up to 12" wide, up to 17" long | Up to 11.5" wide | FD 2300/2350/2380: Up to 11.5" W x 25" L |
| Power | 120V 60Hz, 30Amp | 240V, Single Phase | 208V, three phase, 20 Amp(Special 3 Phase Power Required) NEMA L14-20P plug included, NEMA L14-20R receptacle required |
| Dimensions | 86" L x 28" W x 42" H | 25" W x 24" L x 38.5"-39" H | Cut-sheet models: 152" L x 30" W x 56" H FD 2380: 167" L x 30" W x 56" H |
| Weight | 450 lbs | 180 lbs | Approx. 1,200 lbs |
| Safety Certifications | N/A | N/A | UL applied for |
| Warranty | 90 day limited warranty on parts, excluding wearables and labor | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. |
Video
Formax AutoSeal FD 2096 Production Pressure Sealer Demo
