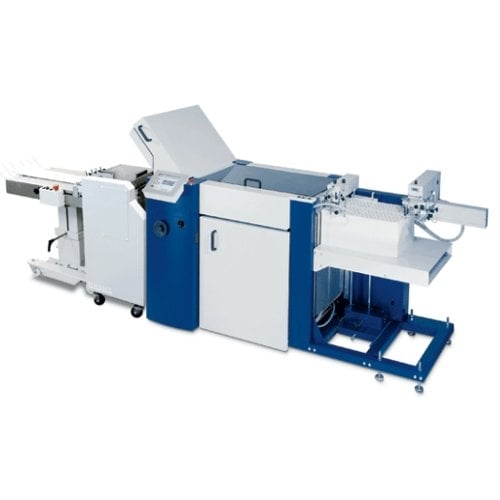

The Formax AutoSeal FD 2300 Series Production Pressure Sealers are designed to handle the highest volume jobs with ease and dependability, with speeds of up to 43,000 forms per hour. Its user-friendly features include the graphics-based color touchscreen control panel, and the ability to program up to 200 custom jobs. The FD 2300 Series Pressure Sealers have fully automated settings that include the feeder, alignment rails, fold plate stops, deflectors and fold rollers, and delivery rollers. Versatility is key to the 2300 Series, which can process a variety of documents up to 11.5" wide and 25" long, including checks, invoices, school reports, tax forms, PIN notices and direct marketing pieces. In addition to the 20 standard pre-set folds, operators can program and store up to 200 custom jobs. Four models are available to choose from which offer different in-feed options: the FD 2300 utilizes an air-feed system with a capacity of up to 500 forms; the FD 2300-EX offers an extended air-feed system to reach a capacity of up to 1,000 forms; the FD 2350 utilizes a pile-feed system to reach a total capacity of up to 3,500 loaded forms; and the FD 2380 works in-line with the Formax FD 676 Maxi Burster for processing continuous forms. With the help of the optional Formax V-Stack36 Vertical Stacker (sold separately), you can stack up to 22" of processed forms, making them easier to unload for further handling. All of the four models above produce fast and accurate folds for secure and time-effective finished product ready for the mail. With the awesome features above, the Formax AutoSeal FD 2300 Series Production Pressure Sealers clearly sets the new standard for high volume processing.
| Model Name | AutoSeal FD 2096 | AutoSeal FD 2200-10 | AutoSeal FD 2300 Series |
|---|---|---|---|
| Model |  |
 |
 |
| Hopper Capacity | Up to 350 sheets 24# | N/A | FD 2300 (AutoSeal High-Volume Production Pressure Sealer - Air Feed Table): Up to 500 Sheets 24# (90gsm) FD 2300-EX (AutoSeal High-Volume Production Pressure Sealer - Extended Air Feed Table): Up to 1,000 Sheets 24# (90gsm) FD 2350 (AutoSeal High-Volume Production Pressure Sealer - Pile Feeder): Up to 3,500 Sheets 24# (90gsm) FD 2380 (AutoSeal High-Volume Production Pressure Sealer - Continuous Form with FD 676 Burster): Continuous Forms |
| Variable Speed | Up to 30,000 forms per hour | Fixed speed of 40,000 forms/hr | Up to 43,000 sheets per hour – based on 11" Z-Fold (279mm) |
| Paper Size | Up to 12" wide, up to 17" long | Up to 11.5" wide | FD 2300/2350/2380: Up to 11.5" W x 25" L |
| Power | 120V 60Hz, 30Amp | 240V, Single Phase | 208V, three phase, 20 Amp(Special 3 Phase Power Required) NEMA L14-20P plug included, NEMA L14-20R receptacle required |
| Dimensions | 86" L x 28" W x 42" H | 25" W x 24" L x 38.5"-39" H | Cut-sheet models: 152" L x 30" W x 56" H FD 2380: 167" L x 30" W x 56" H |
| Weight | 450 lbs | 180 lbs | Approx. 1,200 lbs |
| Safety Certifications | N/A | N/A | UL applied for |
| Warranty | 90 day limited warranty on parts, excluding wearables and labor | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. |
