Product Description

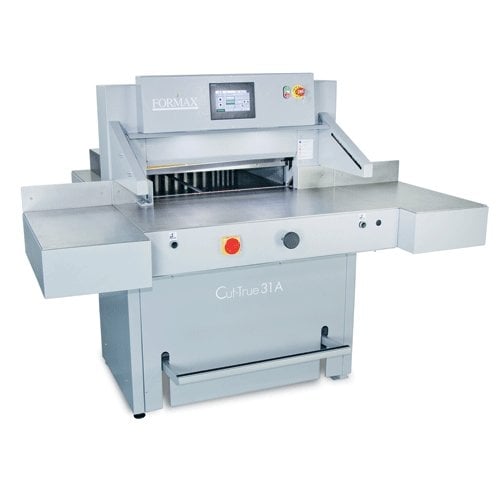

The Formax Cut-True 31A Large Format Electric Guillotine Cutter gives precision cutting for paper stacks up to 28" wide and up to 4" high. Its user-friendly, intuitive features include a 7" color touchscreen control panel, automatically-adjusting back gauge and the capacity to program up to 100 jobs/100 cuts, making frequently run jobs quick and easy to duplicate. The bright LED Cutting Line allows for precise adjustments, and the hardened steel blade makes crisp, accurate cuts, time after time. To help operators maneuver large paper stacks, the Cut-True 31A features extra-large side tables. A false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books. The false clamp can be removed to decrease the minimum cut length to 1.18", and stored within the machine when not in use. It is also featured with an internal light to illuminate the cutting area. An infrared light beam curtain and two-button operation provide for multiple levels of safety. Other safety features include dual-button operation and an infrared safety curtain, a lock with key, blade lock, automatic blade return from any position, an easy-to-use blade change safety tool, and a wooden paper push for safe alignment. This Formax Cut-True 31A 28" Electric Guillotine Cutter is perfect for transforming large sheets into brochures, invitations and more, and is a great addition to print shops and in-plant finishing operations.
Product Details
- Standard Features:
- Heavy Duty Construction: Designed for true two-shift operation.
- High-Speed Hardened Steel Blade: Designed for accurate cuts and long life.
- Electronically-Controlled: Paper clamp pressure and blade carrier.
- False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use.

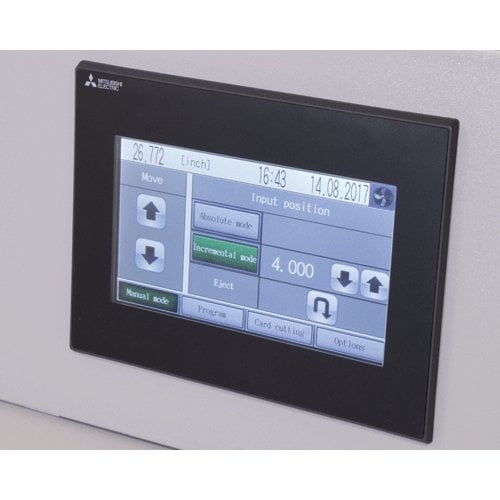

- 7” Color Touchscreen Control Panel: Easily set, adjust and program jobs.

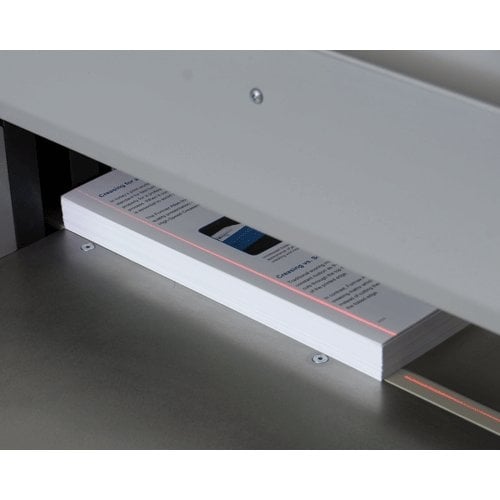

- LED Cutting Line: Bright red LED line indicates exactly where the blade will cut, allowing for precise adjustments prior to cutting.
- Solid Steel Blade Carrier: Built for longevity and minimal maintenance.
- Internal Light: Illuminates the cutting area for improved visibility.
- Extra-Large Side Tables: Allow users to maneuver large paper stacks with ease.
- Fine-Tuning Knob: Allows users to precisely adjust the back gauge position.
- Clamp-Lubricating Grease Ports: Easily accessed without removing covers.
- Operating Features:
- Cutting Capacity: Paper stacks up to 4” high and up to 28” wide.
- Automatic Blade Return from Any Position: Provides safe and accurate operation.
- Programmable Jobs: Up to 100 jobs/100 steps, including paper eject and cues for turning directions.

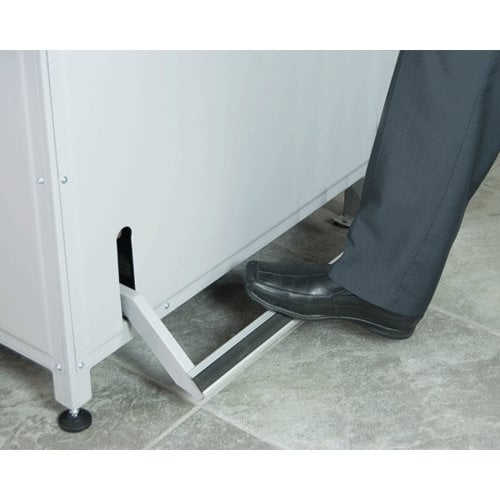

- Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting.
- Business Card Cutting Mode: Allows for quick and easy set-up.
- Adjustable Clamp Pressure: Electronically controlled to accommodate different paper stock.
- Automatically-Adjusting Spring-Loaded Back Gauge: Ensures accuracy and reduces operator effort.
- Safety Features:
- Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted.
- Two-Button Operation: Both buttons must be pressed simultaneously, keeping hands away from the cutting area.
- Blade Change Safety Tool: Allows users to easily and safely change the blade.
- Wooden Paper Push Tool: Helps to quickly and safely align the paper stack.
- Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators.
- Options / Supplies:
- 31-10: Replacement Blade.
- 31-20: Replacement Cutting Sticks, pkg of 10.
Specifications
- Cutting Action: Dual-button electric
- Cut Capacity: 1000 Sheets
- Maximum Cutting Width: 28.7" (730mm)
- Maximum Paper Stack Height: 3.94" (100mm)
- Programmable Jobs: Up to 100 programs with up to 100 steps each
- Length Behind Blade: 26.5" (673mm)
- Length in Front of Blade: 25" (635mm)
- Minimum Cut w/False Clamp: 2.36" (60mm)
- Minimum Cut w/o False Clamp: 1.18" (30mm)
- Table Size:
- 72.75" W x 25.125" D (1848 x 638mm) with standard side tables
- 43.12" W x 21.125" D (1095 x 537mm) without standard side tables
- Clamp Style: Automatic, electronic
- Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
- Blade Change Safety Tool: Included
- Dimensions: 73" W x 69" D x 56.9" H (1857mm W x 1754mm D x 1445mm H)
- Weight: 1,279 lbs. (580kg)
- Power Supply: 208V, 60Hz, 30A dedicated line, NEMA 6-30P
- Manufacturer's Warranty: 90 day limited Manufacturer's Warranty on parts, excluding wearables and labor
Replacement Blades and Accessories
| Product Name | Item Number |
| Replacement Blade for Formax Cut-True 31A and 31H Cutters | FDCT31-10 |

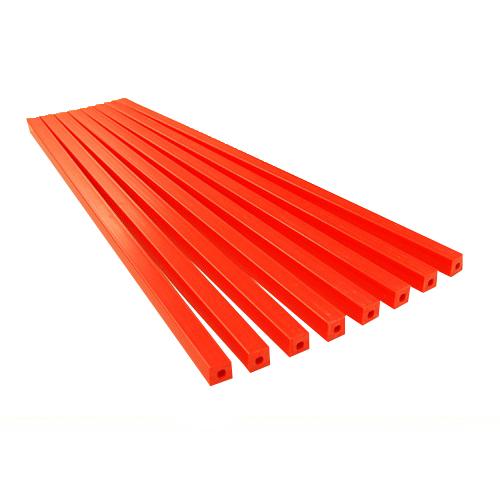

| Cutting Sticks for Formax Cut-True 31A and 31H Cutters - 10pk | FDCT31-20 |
Video
Formax Cut True 31A and 31H Cutters Video
