Product Description

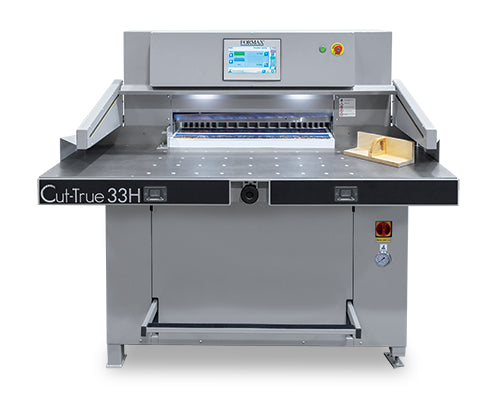

The Formax Cut-True 33H is an industrial-grade hydraulic paper cutter designed for commercial print shops, in-plant print departments, and high-volume finishing operations. Featuring a 31.5" cutting width, programmable touchscreen controls, hydraulic blade and clamp operation, and an air-assist worktable, this heavy-duty guillotine cutter delivers fast, precise, and repeatable cuts for brochures, manuals, booklets, mailers, and other printed materials
Product Details
Standard Features:
- Hydraulic clamp and blade control
- High-speed back gauge

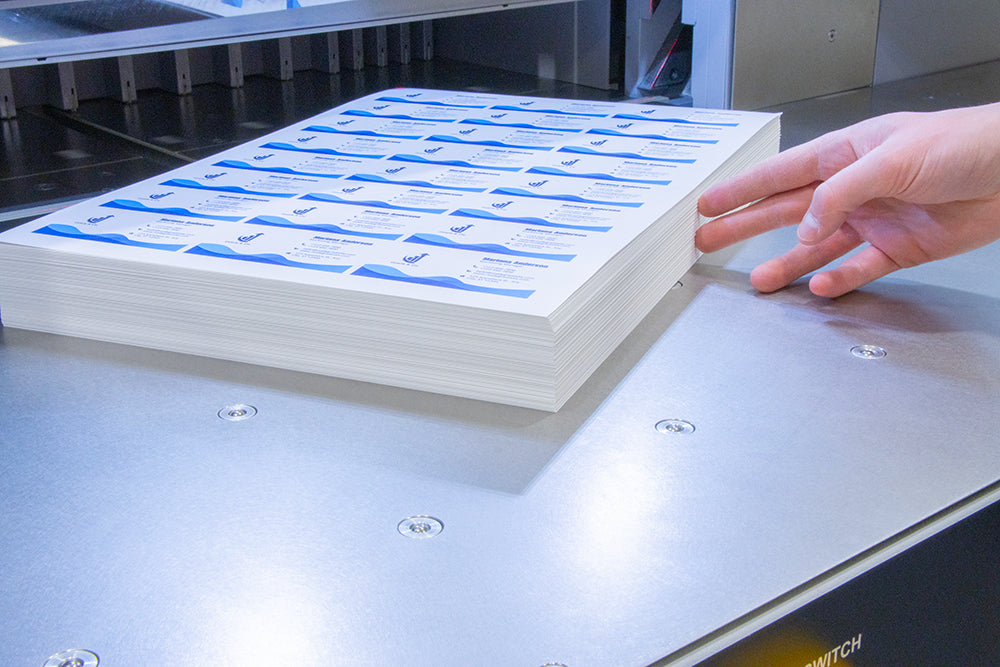

- Air-assist ball tables (front & rear)

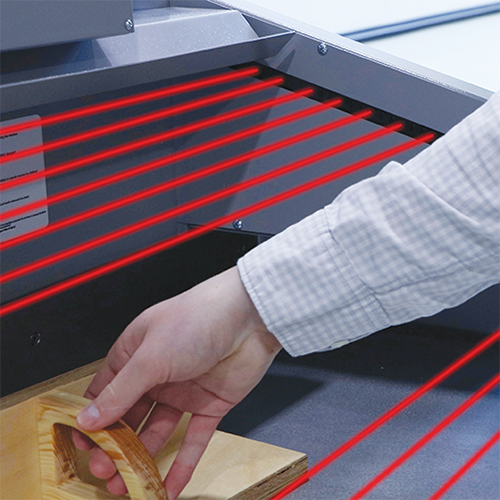

- Infrared safety curtain

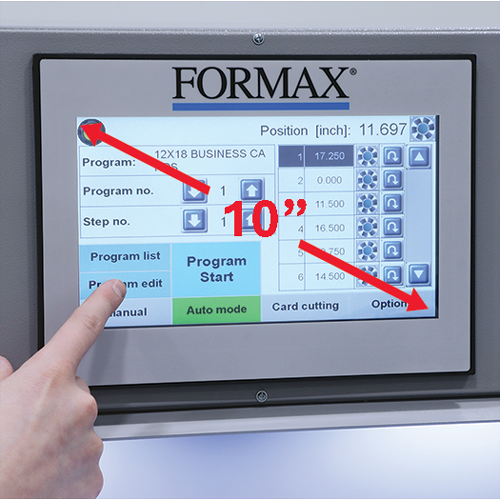

- 10" color touchscreen

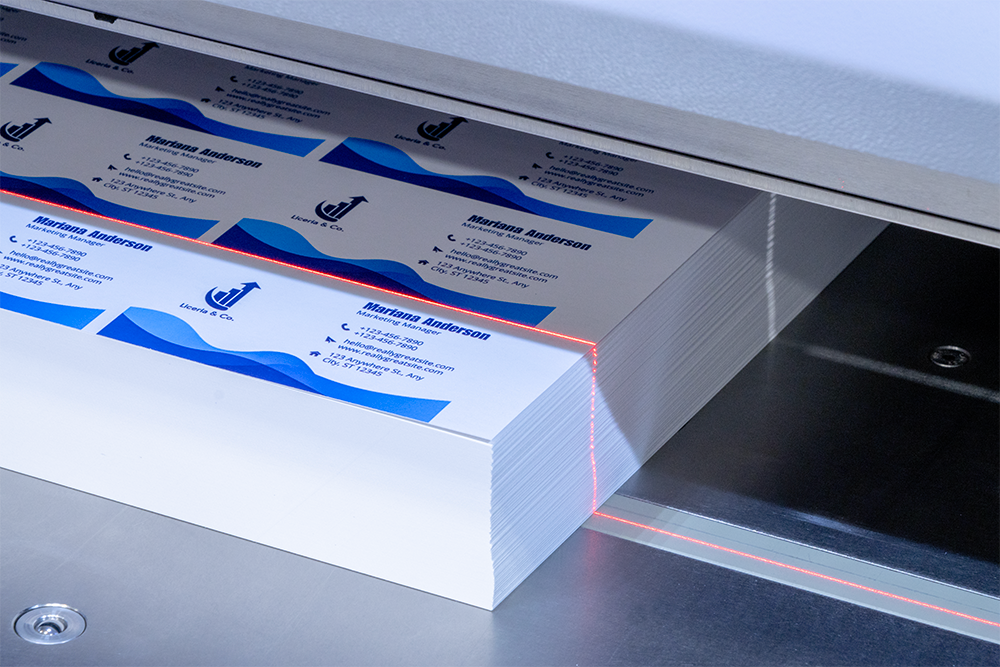

- LED cutting guide line
- Stores up to 100 jobs
- Hardened steel blade
- Touchscreen clamp adjustment
- LED-lit cutting area
- Flat back table design
- Electronic back gauge fine-tuning
- Extra-wide 64.5" front table
- Two-button safety operation

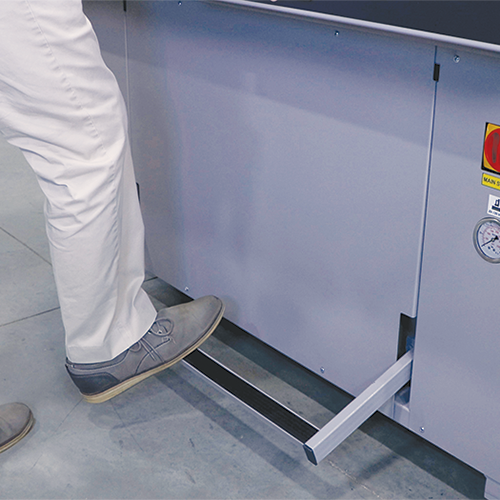

- Foot pedal pre-clamp
- Business card cutting mode
- Solid steel blade carrier
- Removable tables for easy transport
- Safe blade change system
Supplies:
- 33-10: Replacement Blade
- 33-20: Replacement Cutting Sticks, pkg of 10
Specifications
- Cutting Action: Dual-button hydraulic
- Max Cutting Width: 31.5” (800mm)
- Max Paper Stack Height: 4” (102mm)
- Knife/Clamp Speed: Up to 16 cycles/minute
- Programmable Jobs: Up to 100 jobs with 100 steps
- Length Behind Blade: 31.5” (800mm)
- Length in Front of Blade: 25.6” (650mm)
- Min Cut w/False Clamp: 1.97” (50mm)
- Min Cut w/o False Clamp: .98” (25mm)
- Table Size: 64.25” W x 25.6” D (1632 x 650mm)
- Clamp Style: Automatic, hydraulic
- Hydraulic Clamp Pressure: 700-4,500 psi (49 - 316kg/cm2)
- Back Gauge Adjustment: Electronic back gauge switch
- Dimensions Fully Assembled): 66” W x 75” D x 59” H (1676 x 1905 x 1500mm)
- Weight: 1,874 lbs (850kg)
- Power Supply: 3 Phase, 220V, 60Hz, 40A dedicated line
