Product Description

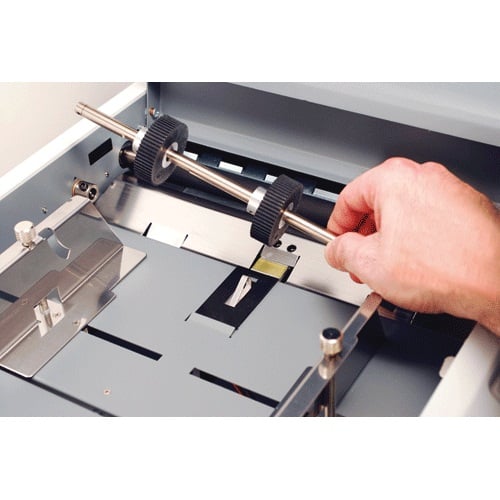

The AutoSeal FD 2054, an innovative tabletop that can provide the premium pressure sensitive one-piece documents. 5 pre-programmed standard folds like panel C, V, Z and uneven C and Z folds. Up to 35 custom folds can be programmed into the machine and even the fold types can be modified individually. In operation, the FD 2054 is capable to detect and adjust automatically to the variety of document forms. Feature a drop-in three-roller feed system capable to process at the speed of up to 16,450 per hour. An estimated monthly cycle can be up to 200,000 forms. Large, 2.8" LCD screen with an advance and incredible easy control panel system design for any inexperienced operators to begin with no instruction. Changing stacker wheels by hand is a thing of the past, with the AutoStack Wheels, switching form sizes and fold types are as easy as 1-2-3. To clear from distraction, the top and side covers are fully insulated to decrease the operating noise. Work smarter with the Formax FD 2054 AutoSeal Pressure Sealer.
Product Details

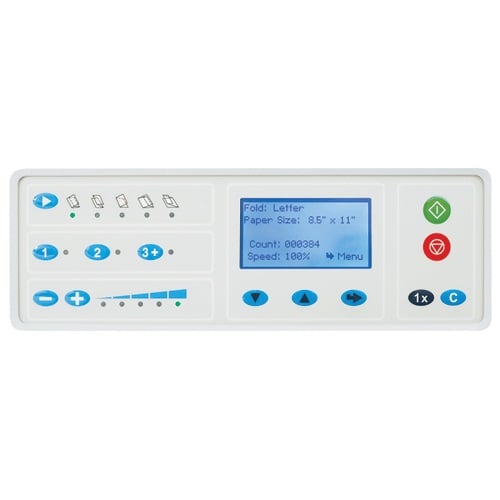

- LCD Control Panel: Large, 2.8" LCD screen with user-friendly controls
- Variable Speed Control: Up to 16,450 pieces per hour
- Pre-Programmed for 5 popular folds: Irregular "C" and "Z" fold, letter "C" fold and single half fold in 11" & 17" with a total of 11 programmed fold settings
- 17" Form Length Capability: Flexibility to process forms up to 17" in length
- Programmable Job Settings: Set and store up to 35 custom jobs
- AutoStack Wheels: Hands free sizes and fold types switching

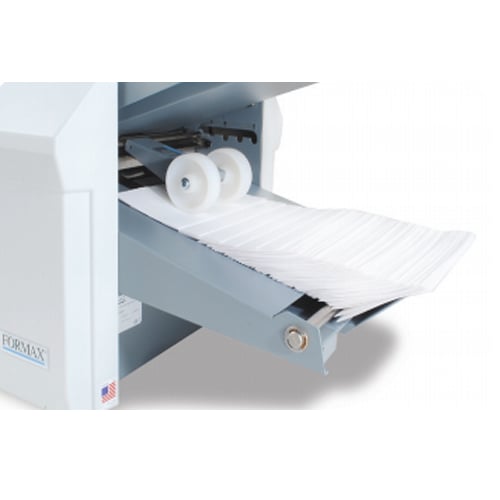

- Advanced Conveyor System: Adjustable conveyor from 14" to 36" in length to accommodate up to 500 folded pieces
- Fault Detector: Detects double feeding and any faults
- Six-Digit Resettable Counter: Provides maximum audit control
- AutoBatch Counter: Pre-set program of forms into sets with a delay
- Noise Reduction: Top and side covers are insulated to reduce operating noise
- Fold Types: Z, uneven Z, C, Half and custom folds
Specifications
- Hopper Capacity: Up to 500 sheets of 20lb
- Fixed Speed: Up to 16,450 sheets per hour, based on 11"(279mm) Z fold
- Paper Size: Up to 12.25" W x 18" L
- Power: 110-240 Volts AC 50/60Hz
- Duty Cycle: Up to 200,000 forms per month
- Closed Dimensions: 43" L x 21.28" W x 16" H
- Document Sequence: Standard sequence is A-to-Z input, Z-to-A output
- Weight: 127 lbs
- Certifications: UL and CUL Approved, CE applied for
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
