Product Description

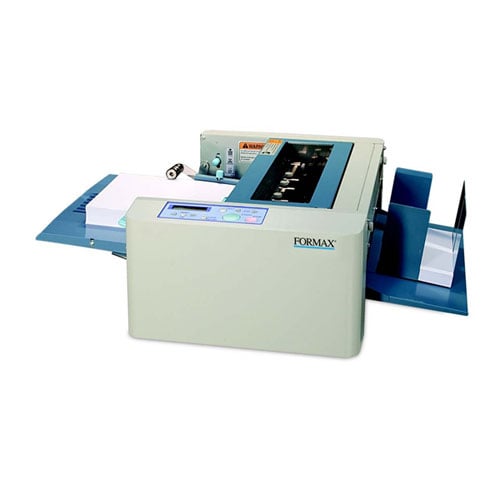

The FD 574 cut-sheet cutter is uniquely designed to process up to 44 cut-sheet forms, generated from a digital printer, per minute. Using transport rollers for accuracy and controls for fine-tuning, this machine automatically feed the forms and cut, slit, or perforate in the desired position. The FD 574 Cut-Sheet Cutter has a speed of up to 2,640 sheets per hour, and cutting accuracy of +/- 0.5 for precise and razor sharp edges on every finished piece. Its user-friendly control panel prompts you throughout the whole process to make it easy and quick. There is a counter to keep track of the number of papers fed and pieces cut. It can have over 100 jobs programmed for custom cutting operations. This is ideal for use with checks, coupons, tickets, notices, membership cards and labels.
Product Details

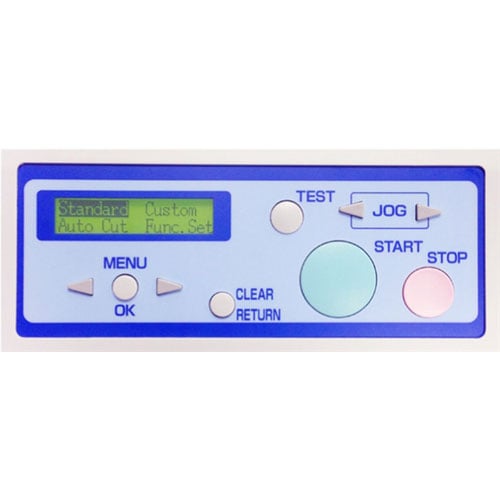

- User-Friendly Control Panel: Provides operator with helpful word prompts for effective and efficient operation
- 6 Pre-programmed Paper Cutting Sizes, including: 8.5" into 1, 2, or 3 even cuts 11" into 1, 2, 3 or 4 even cuts 14" into 1, 2, 3, 4 or 5 even cuts 11" x 17" into 1, 2, 3, 4, 5, 6, or 7 even cuts 12" x 18" into 2-up 8.5" x 11" (with optional slitter)
- 100 Programmable Jobs: Available for custom cutting operations
- Cutting Method: Guillotine Cutter
- Top-loading feed system
- Counter: Keeps track of the number of forms fed, as well as the number of pieces cut
- Automatic Setup: Measures sheet and sets cutting positions according to paper size
- Slitter
- Perforator
- Belt conveyor stacker: Provides neat, sequential stacking of burst forms
Specifications
- Speed: Up to 44 forms per minute (with 3 cuts)
- Form Size: 4.17" x 4.33" up to 14.34" x 18"
- Paper Weight: 58 - 157 gsm
- Minimum Cutting Length: 2"
- Cutting Tolerance: +/- 0.5
- Cutting Method: Guillotine cutter
- Feed Tray Capacity: Up to 500 sheets 64gsm
- Cut Size: 2.16" - 8.27"
- Stacker Capacity: Up to 800 sheets 64gsm
- Programmable Jobs: Up to 100
- Weight: 71 lbs.
- Dimensions: 32" L x 23" W x 10" H
- Power: 120 - 230V, 50/60 Hz, 0.5 - 0.3A
- Manufacturer's Warranty:
- 90 day limited Manufacturer's Warranty on parts.
- Excluding wearables and labor.
- Product Number: FD-574
- Spiral / Binding101 Part Number: 04FXFD574
