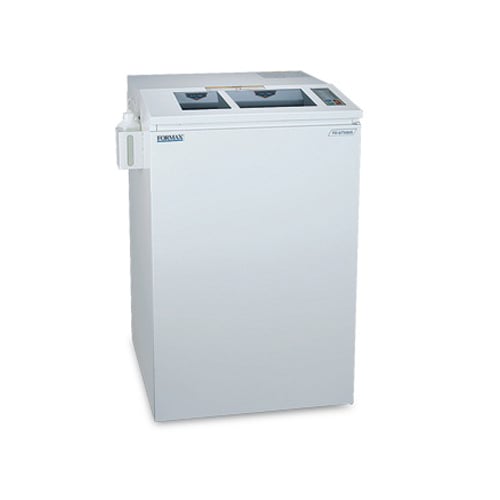

Formax FD 8730HS Level 6 Cross-Cut Paper and Optical Media Shredder

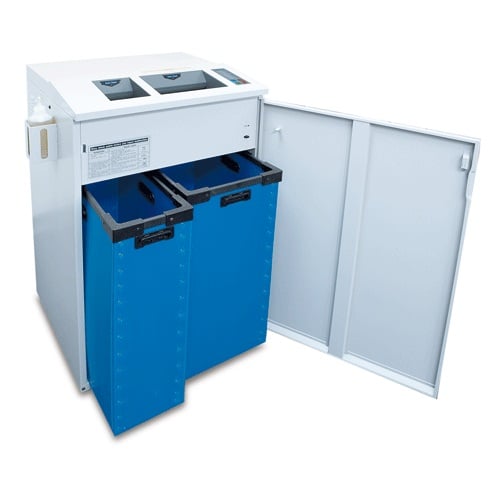

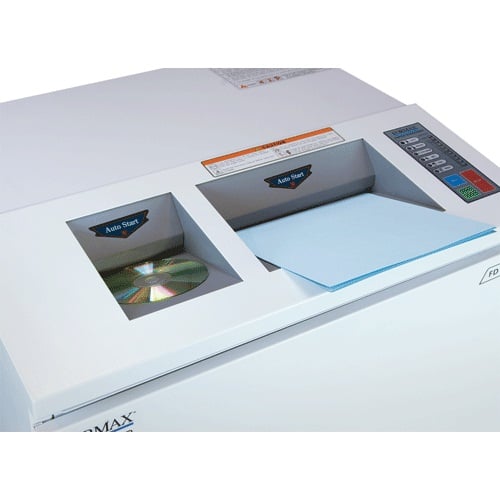

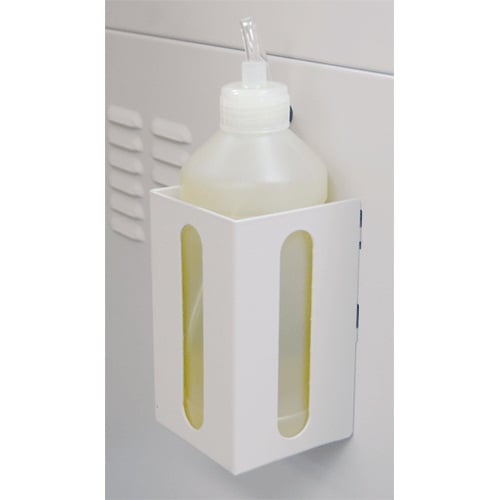

Hi and thanks for watching I'm Brandon with Formax, Iš™m sitting here with the FD 8730 HS high multimedia shredder. The shredderš™s NSA and CSS approved for eight sheets at 19 reams putting it on top of the EPL. One of the first things you'll notice about the machine sitting next to me is its physical presence, stands at 44 inches high and weighs almost 320 pounds, this is attributed to its all-metal construction; whether it's the cabinet, the top, or all the gears inside. Another thing you'll notice about the machine is its two independent slots, one for your optical media DVDs and CDs and one for paper, right next door to that you'll see the intuitive LED interface showing you a load indicator Auto Start and Stop as well as Eco mode, saving you energy when you're not using it. Looking back inside the machine you'll notice the two independent high-density plastic, lifetime guaranteed, waste bins. One for optical media one for paper. Let's take a closer look at the operation of the machine and what makes us so much different underneath the hood. One of the first things that you notice about the physical appearance of the FD 8730 HS is the external automatic oiler, name of the game here is that it's very easy to change out, you unscrew the cap insert a new bottle, screw the cap back on, and you're ready to keep running. Now there's also a slit in the side here that shows us when the machine is out of oil or you need to replace the bottle. The Evenflo system allows equal distribution automatically of oil across the cutting heads for the optical media slot as well as the paper slot. Opening up the top one of the first things that you'll notice here are the sensors on upon the input of media whether it's optical media and it's independent shoot or paper and it's independent shoot. This allows us to have automatic starts and stops as well as giving us eco mode so the machine will automatically shut itself off when there's nothing going through the sensors. Coming down here, you'll notice that this is a fairly large motor, this is an AC powered motor which we use over DC because it gives us greater torque instead of peak horsepower. Torque is the force that you need in order to start the blades churning through paper instead of peak horsepower which would be its maximum running capacity. Coming clockwise through here you'll see a steel chain, this is a chain and metal gear driven system that does not use nylon gears which are able to strip, therefore, it provides a great longevity of the product over its lifetime. Coming right through here you'll notice the high security blades independent. There's a divider here, this is in accordance with DEN 66 security specifications, providing you finished particle size of about 1/32 by 3/16-inch finished particle size. On the optical media side once again, independent slot that provides finished particle size of about 1/16 by 5/32. Overall, you can see everything's made of metal, whether it's the housing, the blades, the chain, anything like that. It's very well built, built like a tank. Now let's take a look inside the shredder while it's actually operating. Now important to note about this, you will approve shredder is that the top is usually fixed to the base and bolted down which doesn't allow anybody to introduce anything to this machine while it's powered up running or certainly shredding. Inserting paper into the paper slot i'll show that the machine starts on demand and also will stop automatically, this is called Eco mode, specifically limiting the amount of power that's required for the machine to initiate the shredding. Now you've seen the auto stop feature, the machine won't start shredding again until other media is introduced either into the paper slot or into the optical media slot. The last way that you can start it in Manual mode is by pressing the Start button located on the LED control panel. A smooth operation of the metal gears as well as the chain drive are obvious upon the first look. There's a light hum of the machine that gives you a really good sense of a well-oiled and precision manufactured all-metal machine. We'll go through the shredding and introducing the actual paper shortly, where you can actually see the EPL leading eight sheets and nineteen ream durability tests. But this should provide a pretty good idea of how the machine is able to outperform competitors who aren't using those metal gears, chain drive, or certainly the high torque AC powered motor. Taking a look at the auto oiler, naturally there are automatic settings which ask the pump to bring the oil to the cutting blades after a runtime specification is reached, otherwise, we can hold the reverse button down for three seconds and manually add oil to the cutting blades. A well-oiled shredder is able to reach its maximum performance standards. Having an industry-leading oiler system as well as excellent manufacturing and all metal parts really allow this machine to live out its life as advertised at a high durability rating. Let's finally take a look at the actual operation of the FD 8730 HS, you know whether it's the eight sheets at 19 reams NS EPL rating, the robust steel construction of the entire machine, or the automatic oiling system that allows this thing to run so well, everything comes together to make a really great package. The machine is ready to run as it's on auto mode so I can just introduce the sheets sensor will trigger it it'll start and also auto stop. Same thing applies for the optical media drive. Otherwise, I can run the machine in manual mode, manually telling it to stop and manually telling it to start. It's literally that easy. You notice the speed that comes off of the machine, we're introducing paper to it which gives us the ability to run those 19 reams in an hour, five hundred sheets. Same thing applies for the optical media drive, they basically take the disk as fast as you can put them in. That concludes our look at the FD 8730 HS thanks for joining us.

Model Name	FD 8730HS	FD 8300HS	FD 8400HS	FD 8500HS	FD 8650HS
Model
Part Number	FD8730HS	FD8300HS	FD8400HS	FD8500HS	FD8650HS
Cutting Type	Cross Cut	Cross Cut	Cross Cut	Cross Cut	Cross Cut
Shred Size	1/32" x 3/16" 1/16" x 5/32" (OM)	1/32" x 3/16"	1/32" x 3/16"	1/32" x 3/16"	1/32" x 3/16"
Sheet Capacity	14 - 15 sheets 1 CD (OM)	6 to 8 sheet	7 to 8 sheet	4 to 5 sheet	14 to 15 sheet
Speed	23 fpm 2,000 CDs per hour (OM)	23 fpm	23 fpm	35 fpm	24 fpm
Feed Opening	19 3/8" 4 7/8" (OM)	9.5"	10.25"	16"	16"
Dimensions:	28" W x 24" D x 43" H	18" W x 19" D x 26" H	20" W x 20" D x 34" H	24" W x 20" D x 35" H	28" W x 24" D x 43" H
Bin Capacity	31 gal 18.5 gal (OM)	15 gal	20 gal	26 gal	53 gal
Security Level	Level P-7 O-5 (OM)	Level 7 (HIPAA Compliant)	Level 6 (HIPAA Compliant)	Level 6 (HIPAA Compliant)	Level 6
Power Supply	110V, 50/60 Hz	110V, 50/60 Hz	110V, 50/60 Hz	110V, 50/60 Hz	110V, 50/60 Hz

Formax FD 8730HS Level 6 Cross-Cut Paper and Optical Media Shredder

Product Description

Product Details

Specifications

Compare to Similar Shredders

Video

Formax FD 8730HS High Security Optical Media Shredder Demo

Customer Reviews

Reviews in Other Languages

Resources

Staff Review
