Product Description

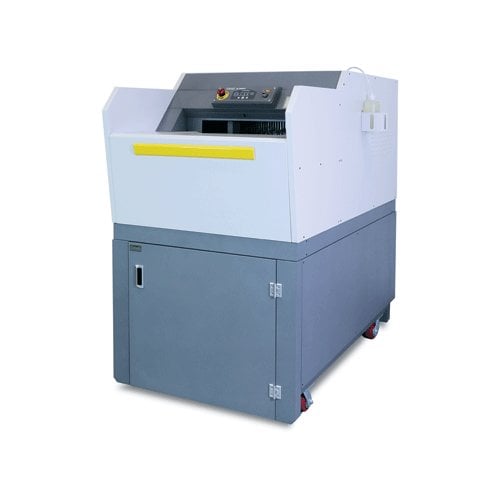

The Formax FD 8906CC Cross Cut Industrial Conveyor Shredder is a high-capacity conveyor-fed unit designed for large volume shredding in a central location and offers fully-automated features including Auto Start/Auto Stop, Auto Reverse and Auto Cleaning for ease of use. The FD 8906CC can shred stacks of computer forms, cardboard, tapes, ribbons, CDs, magnetic disks, and entire files up to 650 sheets, at a speed of up to 35 fpm. Its front-access metal waste bin on casters allows the shredder to be placed against a wall to save valuable space. Plus, its shredding blades can also be customized to meet your specific needs. This Formax FD 8906CC Cross Cut Industrial Conveyor Shredder is backed by a lifetime limited Manufacturer's Warranty on its cutting head and 1-year Manufacturer's Warranty on all other parts.
Product Details
- Designed to shred entire files, stacks of computer forms, cardboard, tapes, ribbons, CDs and magnetic disks
- Heat-treated solid steel cutters are specially ground for longevity and require minimal oil

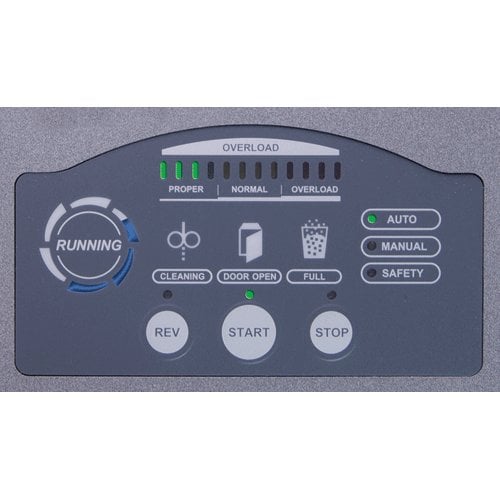

- LED Control Panel features visual load indicator
- Front access to steel waste bin allows the shredder to be placed against a wall
- Auto Start/Stop mode uses optical sensors to detect paper and start operation automatically
- Auto Reverse senses paper jams and automatically switches motor into reverse to clear jam
- Auto Cleaning allows the motor to run in reverse for one minute to clear shred particles

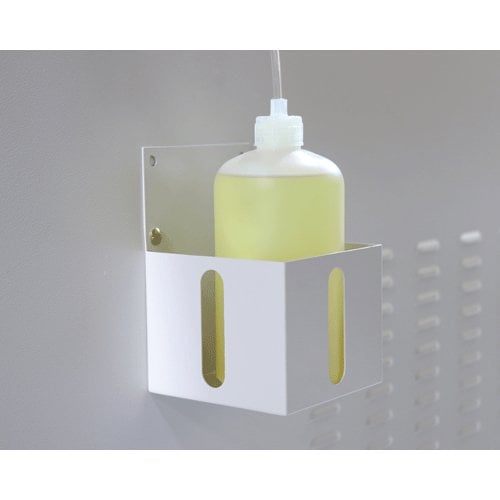

- EvenFlow Automatic Internal Oiling System: Lubricates cutting blades for optimal performance
- Large safety bar to stop operation
- All-metal gearing
- Thermal overload protection
- Safety Circuit Breaker ensures safe operation
- Auto Sensor stops motor automatically when waste bin is full
- Safety Key Lock provides maximum control
- Options: Output Conveyor Belt System: Rear conveyor belt transports shredded material for collection in an external waste bin Additional metal waste bin on casters
- Supplies: Reusable heavy-duty nylon bags, Cutting Head Lubricating Oil: #8000-15, four 1-gallon bottles per case
- Manufacturer's Warranty: Lifetime Limited on cutting head and 1-Year on all other parts
Specifications
- Cutting Style: Cross Cut
- Shred Size: 5/16" x 1 1/2" - 3"
- Sheet Capacity: Up to 650 sheets
- Speed: Up to 35 fpm
- Feed Opening: 21"
- Dimensions: 47" W x 81" L x 63" H
- Dimensions w/Conveyor Belt: 47" W x 125.5" L x 63" H
- Bin Capacity: 102 gal. bin
- Weight: 1,984 lbs.
- Delivery Requirements: Customer-supplied fork lift is required for installation
- Security Level: Level 2 (HIPAA Compliant)
- Power Supply: Three-phase, 220V, 50/60 Hz, 50 Amp dedicated line required, CS8365 plug included, CS8369 receptacle required
- Spiral / Binding101 Part Number: 04FXFD8906CC
Compare to Similar Shredders
| Model Name | FD 8906CC | FD 8806SC | FD 8806CC | FD 8850CC | FD 8906B |
|---|---|---|---|---|---|
| Model |  |
 |
|
 |
 |
| Part Number | FD8906CC | FD8806SC | FD8806CC | FD8850CC | FD8906B |
| Cutting Type | Cross Cut | Strip Cut | Cross Cut | Cross Cut | Cross Cut |
| Shred Size | 5/16" x 1 1/2" - 3" | 1/2" | 1/4" x 1.57" | 1/8" x 2" | 5/16" x 1 1/2" - 3" |
| Sheet Capacity | Up to 650 sheets | Up to 110" | Up to 90" | 70 to 80" | Up to 650 sheets |
| Speed | Up to 35 fpm | Up to 49 fpm | Up to 43 fpm | Up to 46 fpm | Up to 35 fpm |
| Feed Opening | 21" | 16" | 16" | 17.5" | 21" |
| Dimensions: | 47" W x 81" L x 63" H (w/ CB 47" W x 125.5" L x 63" H) |
28.3" W x 52.3" L x 48.5" H | 28.3" W x 52.3" L x 48.5" H | 36" W x 28" D x 63" H (with feed shelf open 40.5" D) |
47" W x 129" L x 63" H |
| Bin Capacity | 102 gal | 36 gal | 36 gal | 77 gal | 154 gal |
| Security Level | P-3 / Level 2 | Level 1 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | P-3 / Level 2 |
| Power Supply | Three-phase, 250V, 60Hz, 50A dedicated line required, NEMA CS8365 plug included, CS8369 receptacle required |
3-Phase 220V, 60Hz, 20A NEMA L15-20P plug included, NEMA L15-20R receptacle required |
3-Phase 220V, 60Hz, 20A NEMA L15-20P plug included, NEMA L15-20R receptacle required |
3-Phase, 20A, 208VAC NEMA L21-20P plug included, NEMA L21-20R receptacle required |
Three-phase, 250V, 60Hz, 50A dedicated line required, NEMA CS8365 plug included, CS8369 receptacle required |
Video

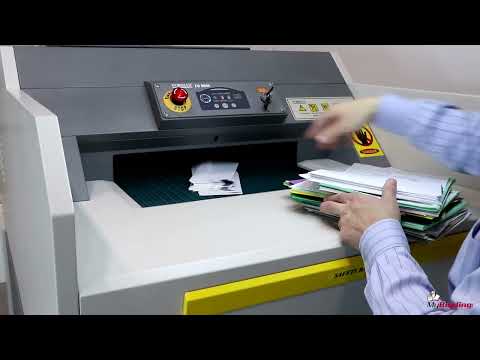

Formax FD 8906 Series Industrial Shredders Demo Video
Transcript :
