Formax FlashCard Tabletop Business Card Cutter

Name: Formax FlashCard Tabletop Business Card Cutter
Brand: Formax
SKU: FlashCard

$4,995.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FLASHCARD

Cuts up to 144 business cards per minute, 10-up per sheet with the standard cassette
Feeds 8.5" x 11" and 8.5" x 14" sheets up to 130 lb cover (350gsm), including laminated
Includes a 3.5" quick-change cassette, optional cassettes cut 5" x 7" and 3.5" x 10"
Double friction feed holds 40 sheets, plus register mark reader and 16 stored jobs

SKU

PRODUCT NAME

PRICE

QUANTITY

04FXFDFC05

Formax FC-05 3.5" Slitter Cassette for FlashCard Business Card Cutter

$875.00

04FXFDFC10

Formax FC-10 7" Slitter Cassette for FlashCard Business Card Cutter

$875.00

04FXFDFC20

Formax FC-05 8" Slitter Cassette for FlashCard Business Card Cutter

$875.00

Product Description

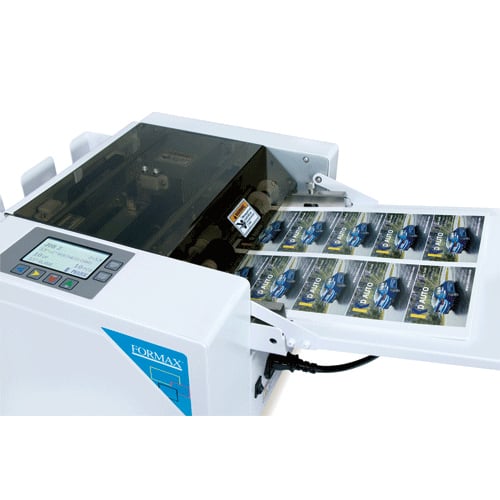

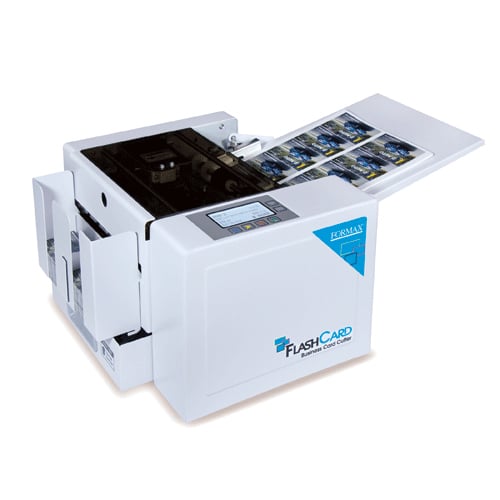

The Formax FlashCard Business Card Cutter is a compact, economical solution for on-demand production of full-bleed business cards, postcards, photos, and more, cutting up to 144 cards per minute. It features an intuitive LCD display with pre-programmed jobs and the ability to create and save custom settings for sheet sizes from 8.5" x 11" to 8.5" x 14". The automatic friction-feed system handles coated, uncoated, laminated, and card stocks up to 350gsm, feeding up to 40 sheets at a time. Its self-sharpening blade provides precise cuts down to 0.1mm accuracy, with an optional register mark reader for enhanced alignment. The FlashCard ships with a 3.5" cutting cassette for 10-up 2" x 3.5" business cards, and supports optional interchangeable cassettes for additional card sizes including 5" x 7", 4.25" x 8", 3.5" x 10", gift tags, stationery, mailers, and more. Ideal for print shops, small businesses, and schools needing fast, short-run card production.

Product Details

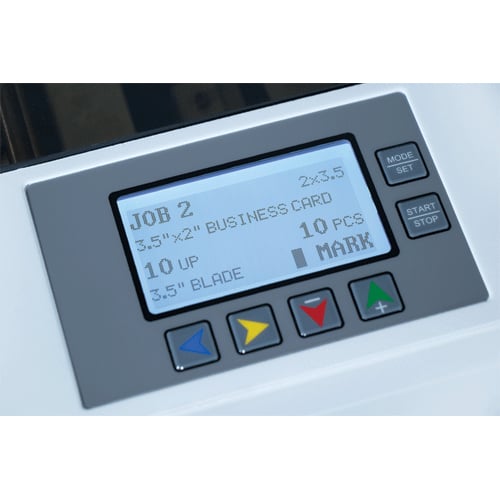

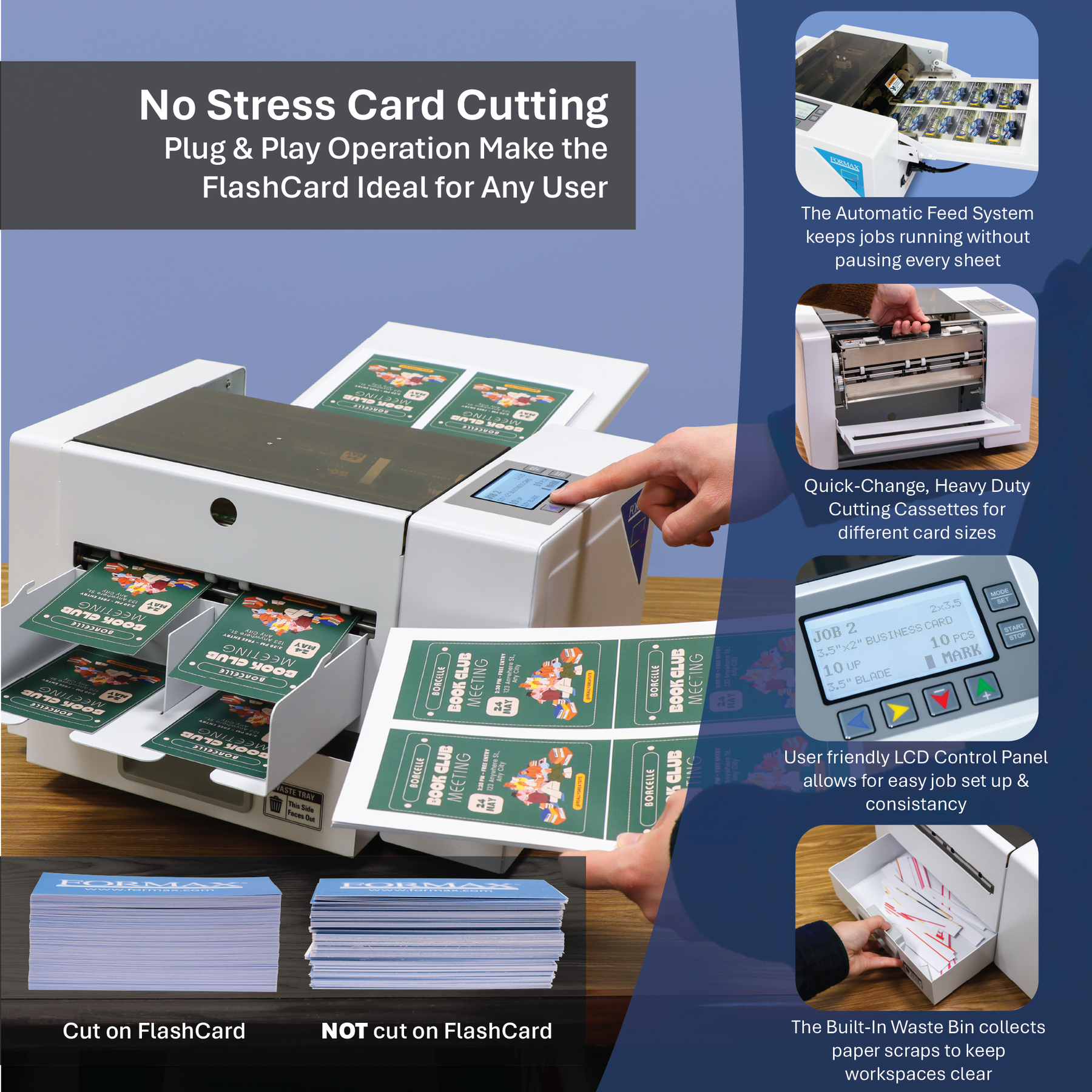

User-Friendly LCD Control Panel: Easily set up jobs, use programmed settings, or create custom cuts

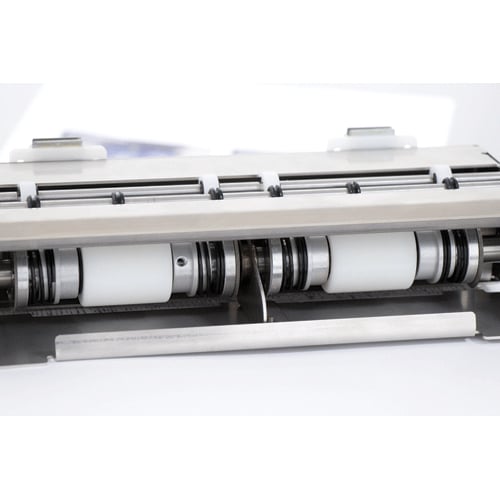

Heavy Duty Quick-Change Cutting Cassettes: Standard 3.5" cassette cuts 10-up business cards.

Double Friction Feed: Accurate feeding throughout job runs

Programmed/Custom Jobs: 5 programmed jobs, up to 11 custom job settings

Incredibly Accurate: Cutting tolerance of 0.1mm

Handles a Variety of Paper Stocks: Easily processes coated, uncoated and laminated sheets

Registration Mark Sensor: Reads printed mark on sheets to enhance accuracy

Paper Sizes: 8.5" x 11" and 8.5" x 14" sheets

Paper Weights: Accommodates paper up to 350gsm / 130# cover

Interlocking Plexi Cover: Users can see operation through the cover. Blade will stop if cover is opened.

Heavy Duty Quick-Change Cutting Cassettes:

FC-05: 3.5" Cassette, standard
FC-10: 7" Cassette, optional
FC-20: 8" Cassette, optional

Specifications

Speed: Up to 144 business cards per minute

Cutting Tolerance: 0.1mm

Paper Sizes: 8.5" x 11", 8.5" x 14"

Paper Weight: 180 - 350gsm

Paper Stock: Coated, non-coated, laminated

Programmable Jobs: Up to 16: 5 pre-programmed, 11 custom

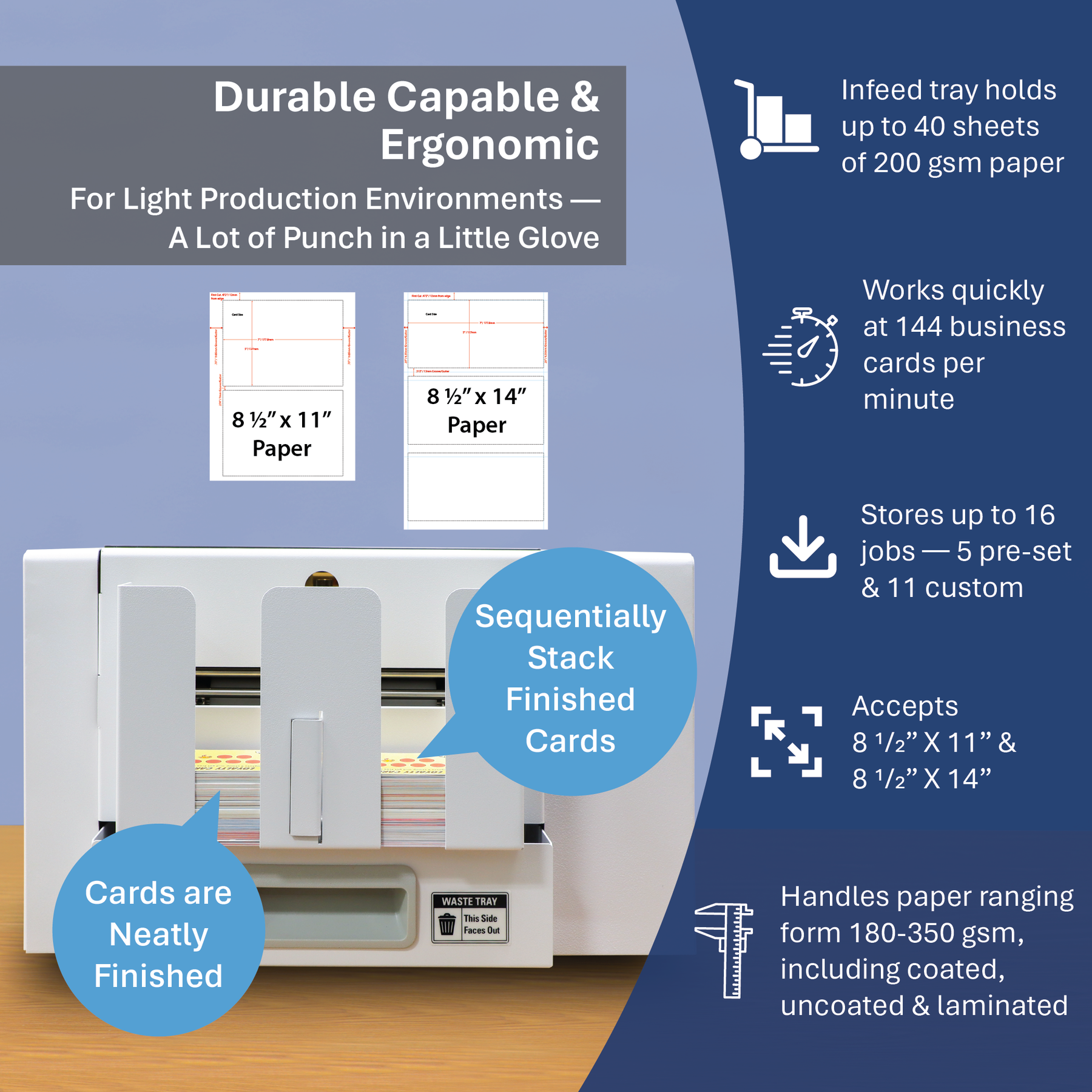

Feed Tray Capacity: Up to 40 sheets 200gsm

Minimum Cut Length: 40mm

Feeding Style: Double friction

Registration Mark Reader: Yes

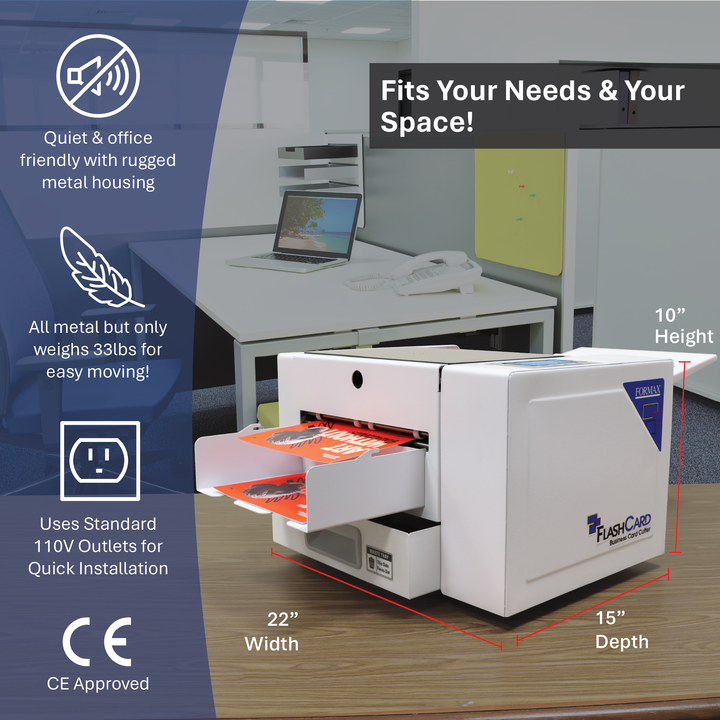

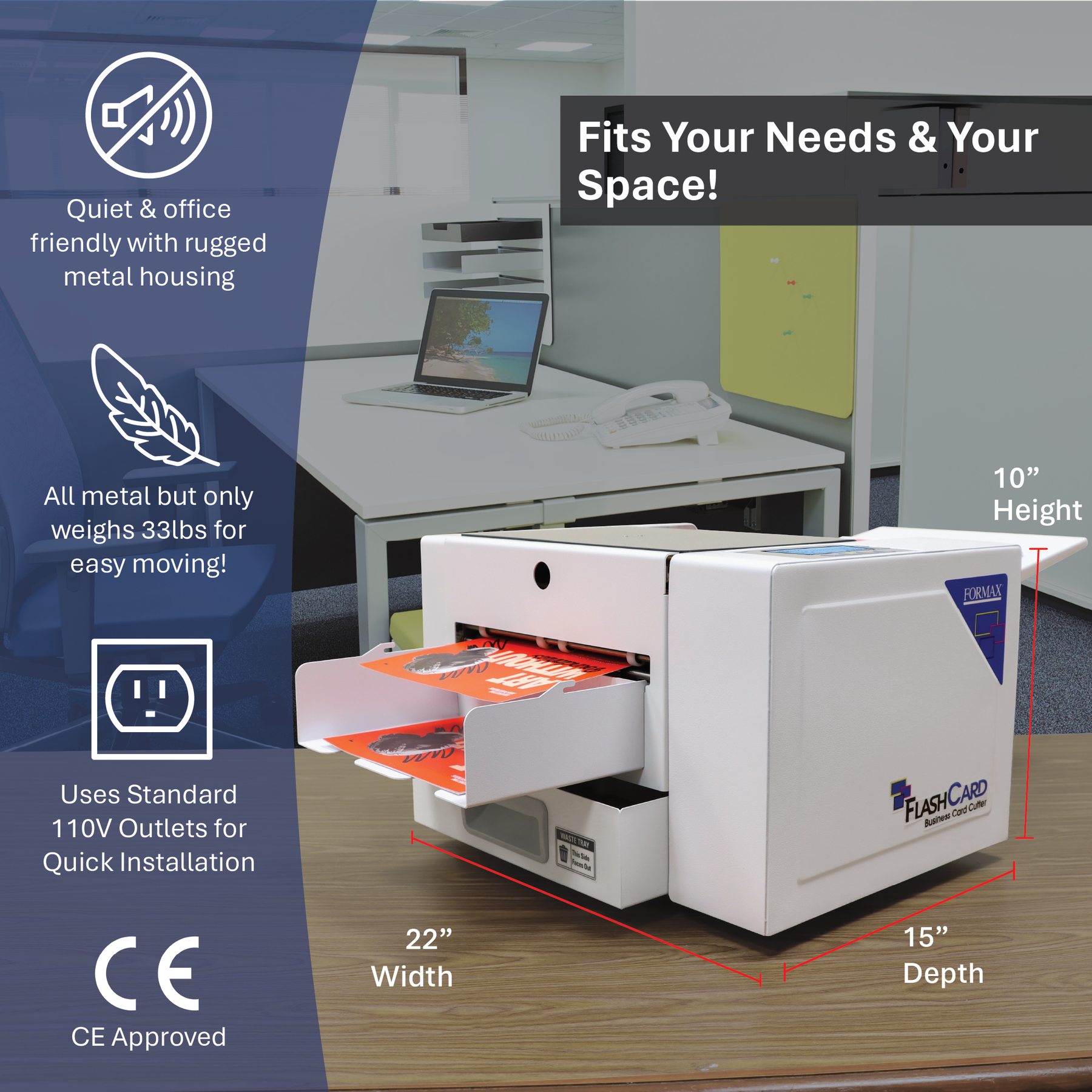

Dimensions: 22" L x 15" D x 10" H

Weight: 33 lbs. (15kg)

Shipping Method: Freight Truck Required (Cannot Ship via UPS)

Power: 110V, 50/60Hz, .6 Amp

Certifications: CE

Manufacturer's Warranty: 90 day Manufacturer's Warranty on parts and labor

Spiral / Binding101 Part Number: 04FXFDFCBCC

Video

Formax FlashCard Tabletop Business Card Cutter Set Up and Operation Demo Video

Transcript :

Formax Flash Card Setup and Operation
When setting up your new Formax Flash Card Business Card Cutter, check to be sure you have all the parts: the operator's manual, power cord, waste bin, catch tray, and the Flash Card cutter. The Flash Card comes with a removable 3.5-inch business card cutting cassette already installed. Optional 7-inch and 8-inch cassettes are available separately for producing larger card sizes.
Setting up the Flash Card is quick and easy. Begin by placing the Flash Card on a sturdy, level surface. Unfold the infeed tray from the top of the machine into place. Ensure the see-through top cover is aligned and in place. Slide the waste bin in until it is securely in place. Next, install the multi-directional catch tray on the outfeed side as shown here. The catch tray can be configured several ways based on the size of the cards being cut. In this position, it can accommodate cards up to two by four inches.

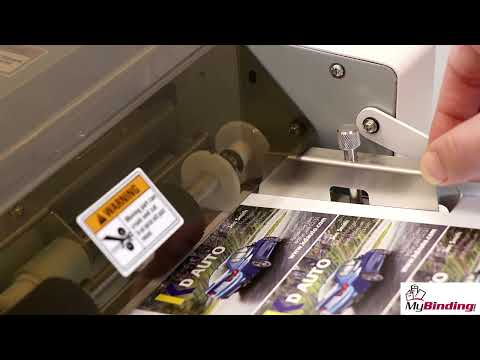

Finally, plug in the power cord and switch on the power. With the Flash Card set up and ready for operation, it's time to set the infeed paper guides. Loosen the thumb screws that hold the guides in place and insert a sheet of paper between them. Slide the guides in until there is about a millimeter between the edge of the paper and the side guides, then tighten the thumb screws to hold the guides in place. The paper should slide freely between the guides.

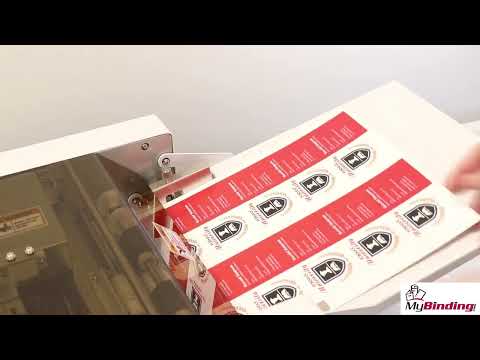

To load a stack of printed sheets, press down on the feed tray and slide the forms under the feed tires. Release the tray when in position. Next, choose one of the pre-programmed jobs on the screen or create and choose a custom job. With a job selected, input the number of pieces needed. If a 10-up business card sheet is being cut, 10 pieces equal one sheet. Increase the number of pieces based on the number of sheets (50 pieces equal five sheets, and so on). The auto setting can be selected to run all the sheets placed in the infeed tray. To begin, press the start button.
When cutting a job with a printed alignment mark, be sure the mark option is selected. If running without a mark, the edge option should be selected.

To change the cutting cassette, remove the top cover and remove the thumb screw shown here, which keeps the cassette in place. With the screw removed, lift the cassette up and out off the machine's alignment pins. Install the new cassette, making sure it rests on the alignment pins and that the gears are aligned. Then, replace the thumb screw to hold it in place. Finally, replace the top cover.

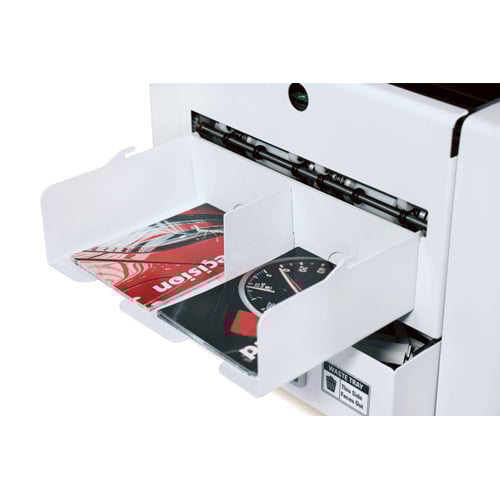

To change the catch tray to match your chosen cut, simply lift off the catch tray and switch the hanging position to accommodate the largest available cuts. Remove the center divider as shown. Please refer to the operator manual for further details.

Formax FlashCard Tabletop Business Card Cutter Video

Transcript :

Formax presents the FlashCard Business Card Cutter. For far too long, customers have had to decide between low price and low quality, or overpriced with dependability for on-demand card cutting, but no more. The Formax FlashCard is an industry breakthrough, proving to be the first high-quality, versatile tabletop card cutter with an economical price tag for the on-demand print market.
Utilizing Formax card production experience and Formax American Engineering, the FlashCard is ideal for producing business cards, postcards, photo cards, appointment reminder cards, laminated ID cards, greeting cards, and more. The FlashCard delivers fast, accurate cuts every time at speeds of up to 144 business cards per minute. This little machine packs a big punch, cutting paperweights up to 350 GSM and up to 14 inches long without hesitation.

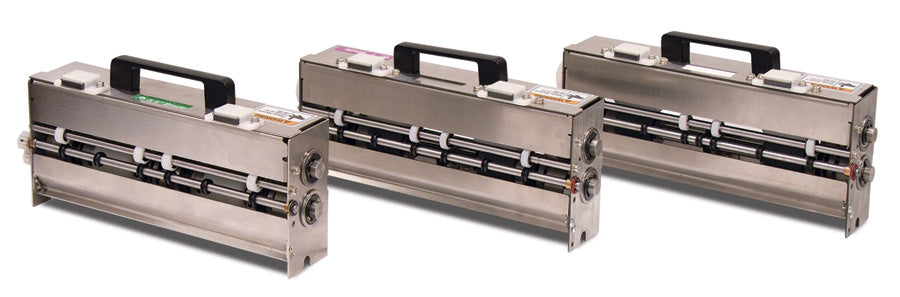

Three heavy-duty quick-change cutting cassettes are available with self-sharpening blades for enhanced output and minimal maintenance. The standard 3.5-inch business card cassette is included, with optional 7-inch and 8-inch-wide cassettes for larger card sizes. Users can choose up to 16 jobs stored in memory, 5 pre-programmed for common applications, and 11 programmable jobs for custom card sizes.
Horizontal and vertical gutter settings create full-bleed graphics for a professional finish. The registration mark sensor adjusts for slight print offsets, enhancing cutting accuracy and output quality. The automatic friction feed system includes adjustable paper guides and holds up to 40 sheets of 200 GSM paper.
