Product Description

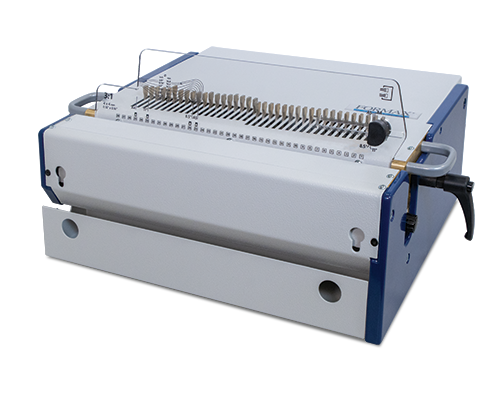

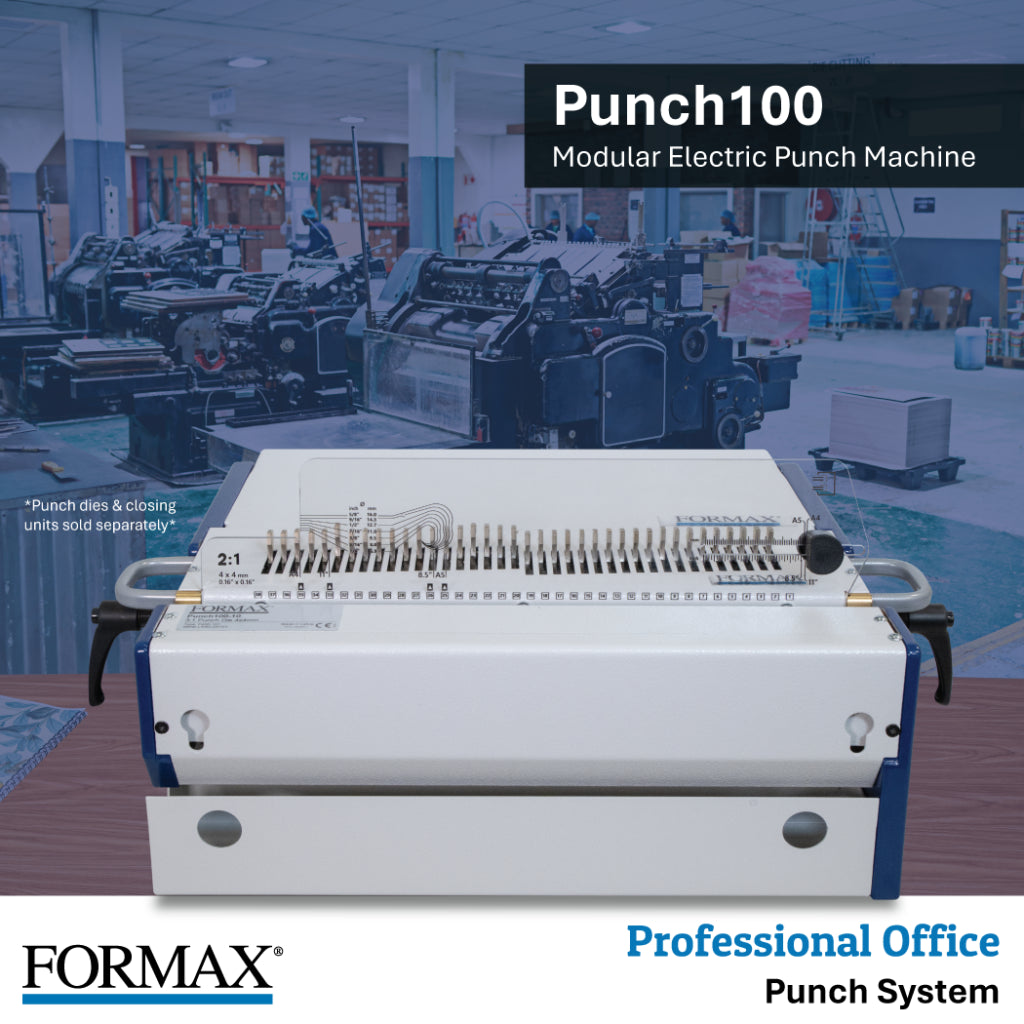

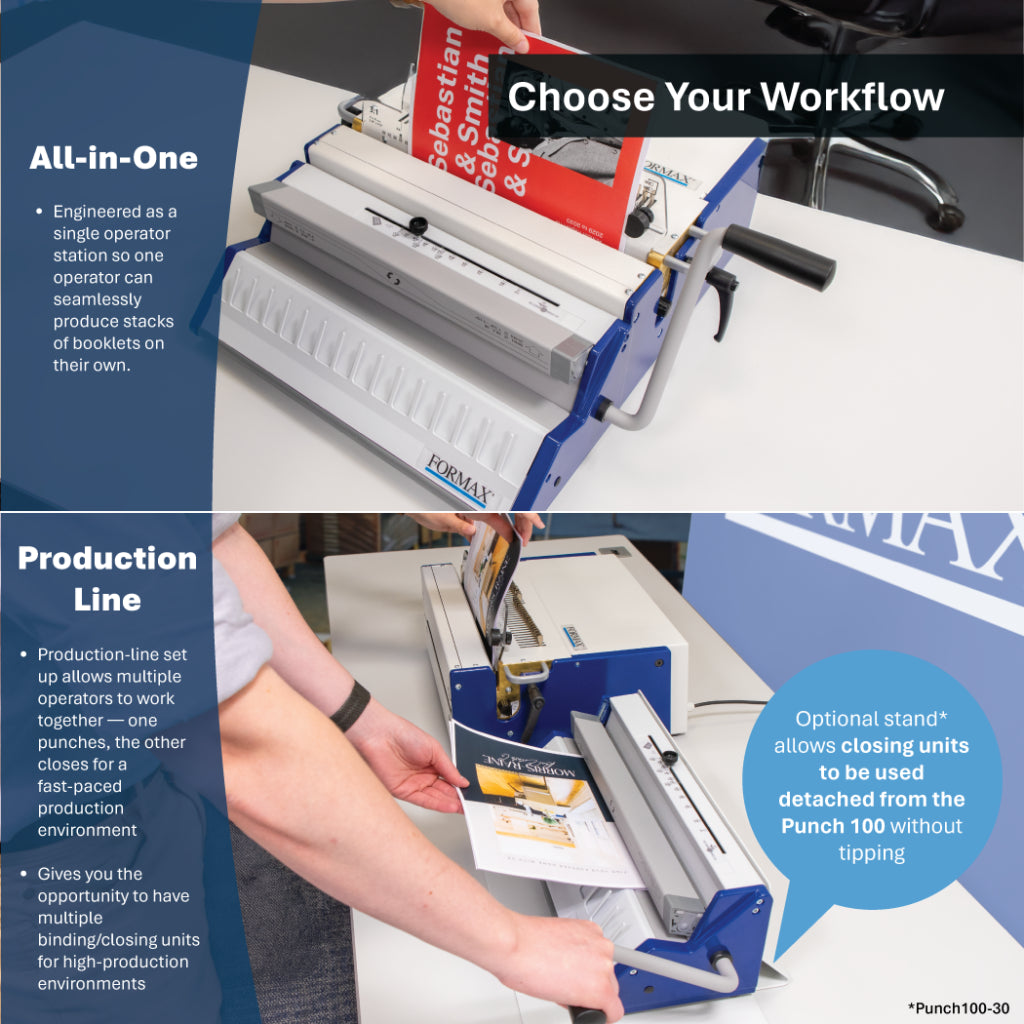

The Punch100 Electric Punching System is a versatile solution that grows with your business. Use it as a standalone punch or pair it with the Wire100, Comb100, or Coil100 Binding System to create professional-quality documents. Its precision vertical punching system keeps paper aligned for accurate hole placement, even with thick stacks. Disengageable punch pins allow quick setup, while the electric punch and convenient foot pedal make operation easy and efficient. Interchangeable dies can be changed without tools, allowing you to handle different binding styles with one machine. For higher productivity, multiple operators can work together, with one person punching and others binding.
Product Details
- Heavy-duty modular punching system

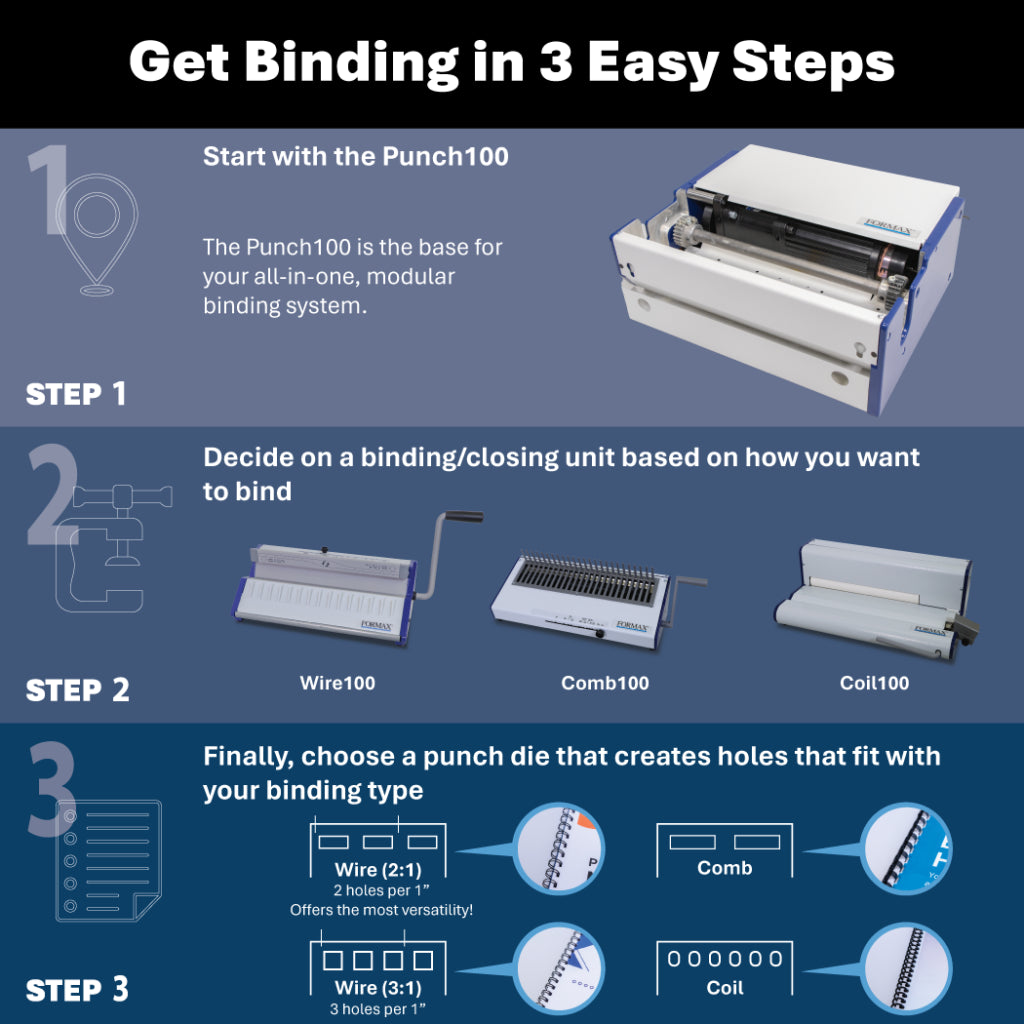

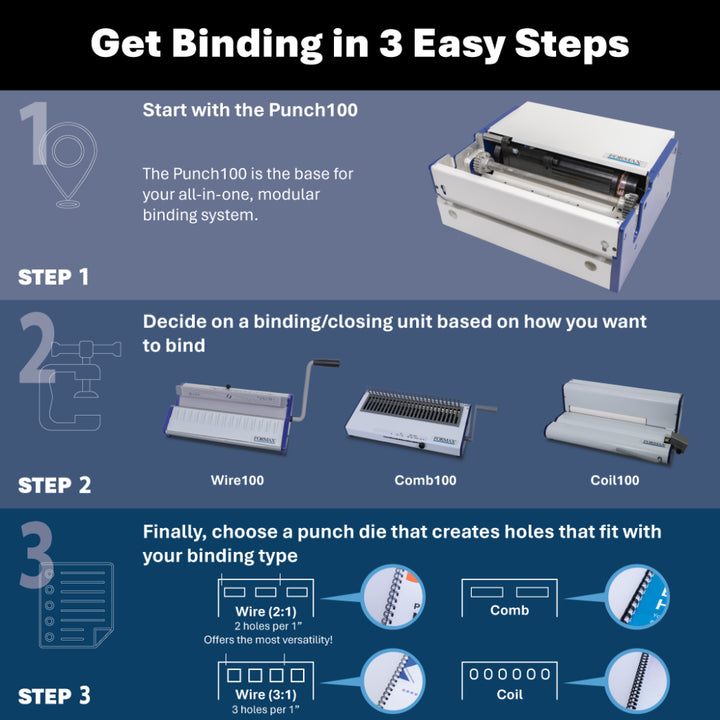

- Use as a standalone punch or with optional binding modules
- Supports wire, plastic comb, and spiral coil binding

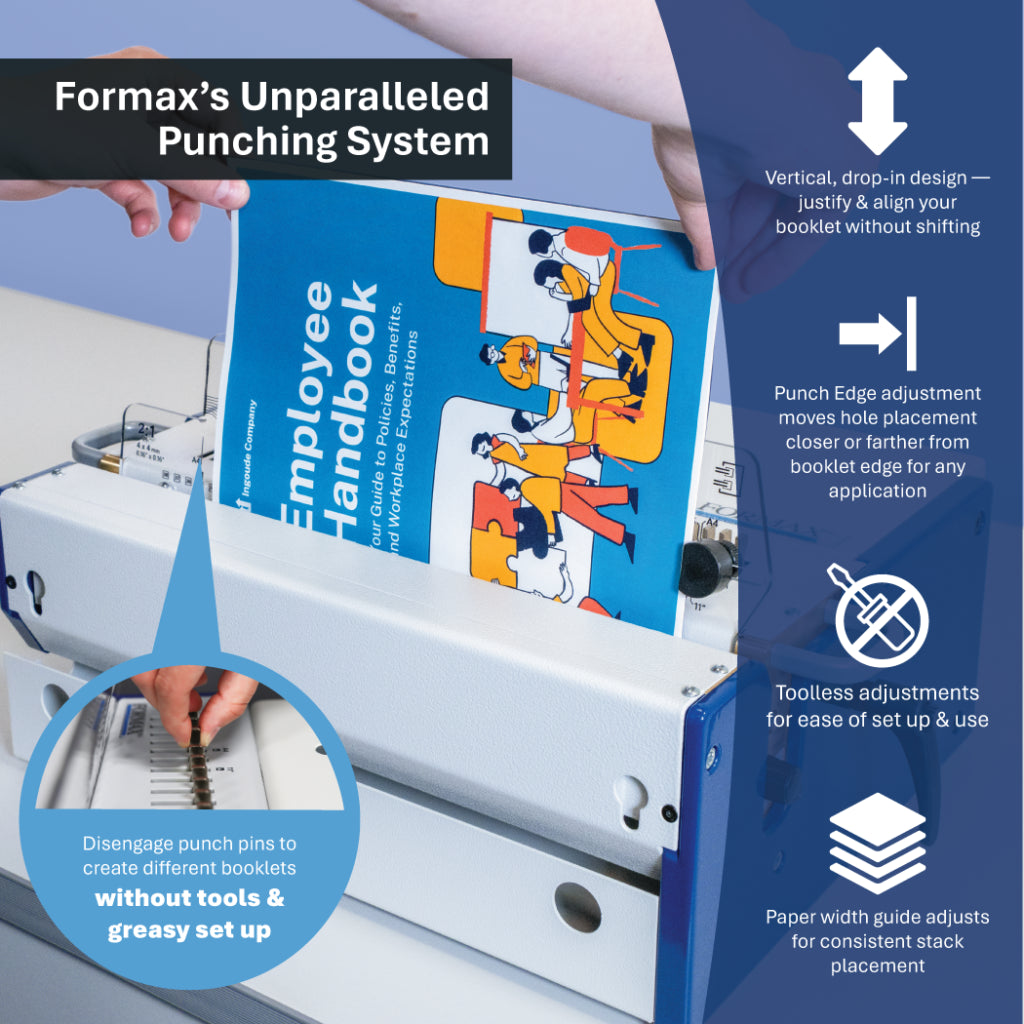

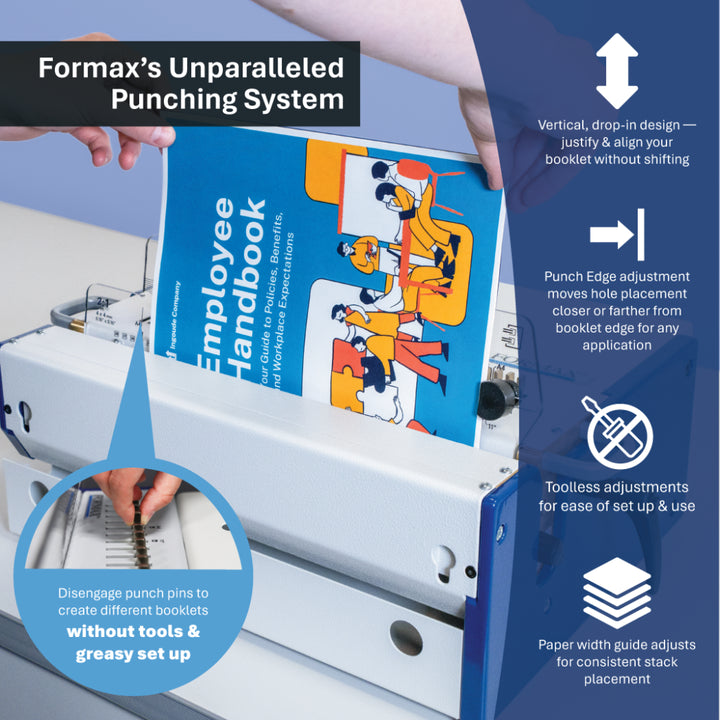

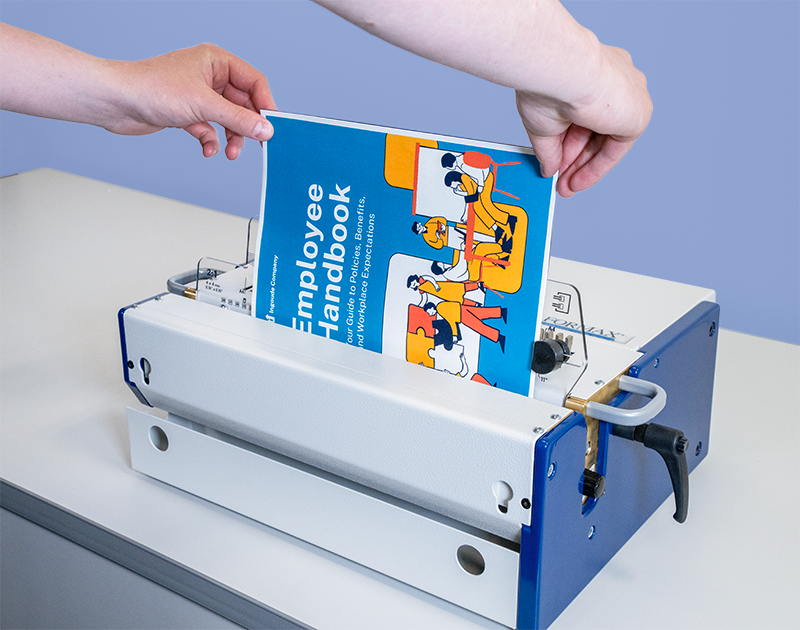

- Precision vertical punching for accurate holes

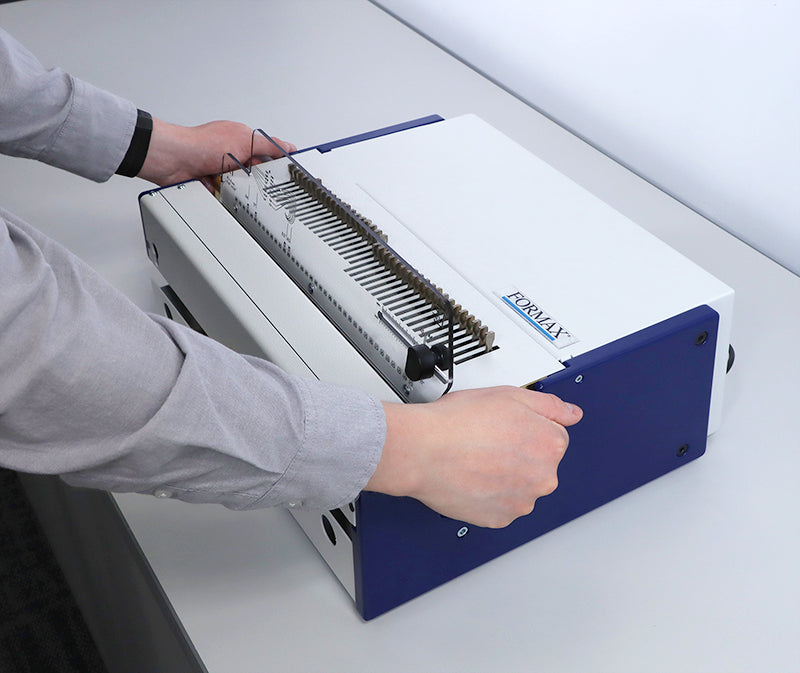

- Quick, tool-free die changes
- Adjustable punch pins for different paper sizes
- Handles various types of paper stock
- Durable, compact design
- Easy-access sliding waste tray
- Adjustable punching depth for stronger binding
- Multiple punch patterns available
Specifications
- Punching Speed: Up to 1,200 sheets/hr
- Modular: Yes
- Punching Width: .39” - 13.4” (10 - 340mm)
- Unpunched Length: 1.57” - 31.5” (40 - 800mm)
- Max. Punching Thickness: Up to 0.137” (3.5mm)
- Punching Operation: Electric, foot pedal
- Punch Dies Available in 2:1 or 3:1 Pitch: Formax Punch100 Binding Die Sets
- Disengageable Punch Pins: Yes
- Variable Margin Depth: Yes
- Dimensions: 22” W x 14” D x 9.8” H (559 x 356 x 250mm)
- Weight: 76 lbs. (34.5kg)
- Power Supply: 120V, 60Hz, 250W
- Spiral / Binding101 Part Number: PUNCH100
