Product Description
The Punch 100A Semi-Automatic Electric Punch is built for fast, reliable, heavy-duty punching across various binding applications. Its vertical punching system uses gravity to keep paper aligned for accurate hole placement, even with thick document sets. The adjustable paper stop and automatic sensor activate punching and eject finished sheets onto the catch tray for easy handling. Interchangeable dies can be changed quickly without tools. Designed for productivity, the Punch 100A can deliver up to three times the output of standard tabletop punching machines.
Product Details
- Semi-automatic tabletop punch for booklet making
- Vertical punching system for accurate hole placement

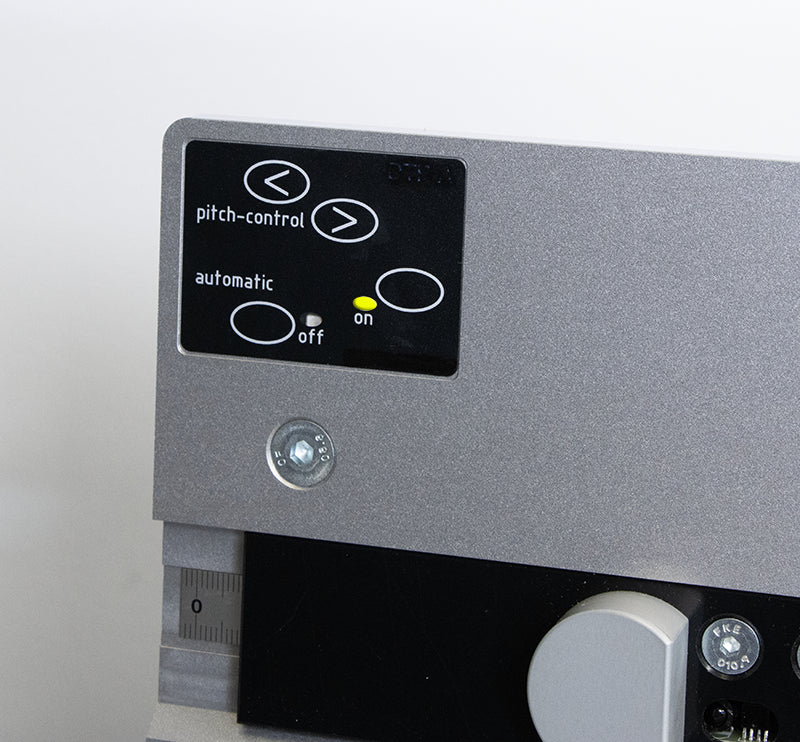

- Easy-to-use control panel

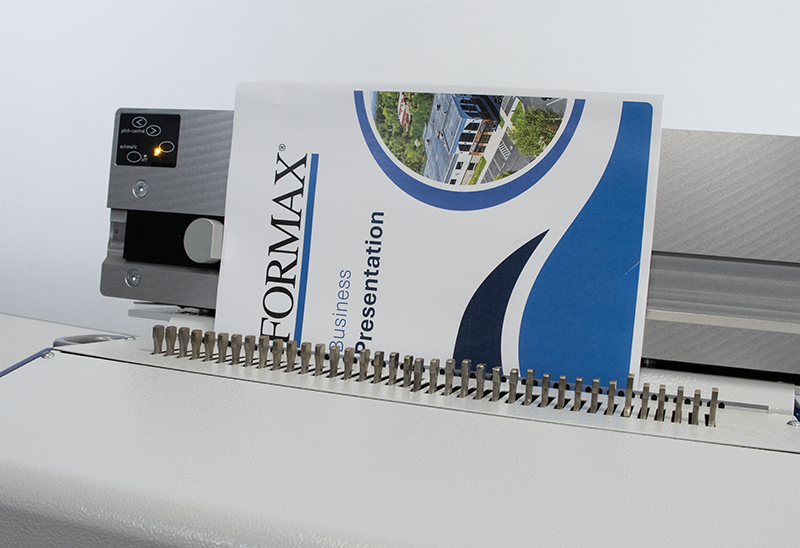

- Choose automatic sensor or foot pedal operation

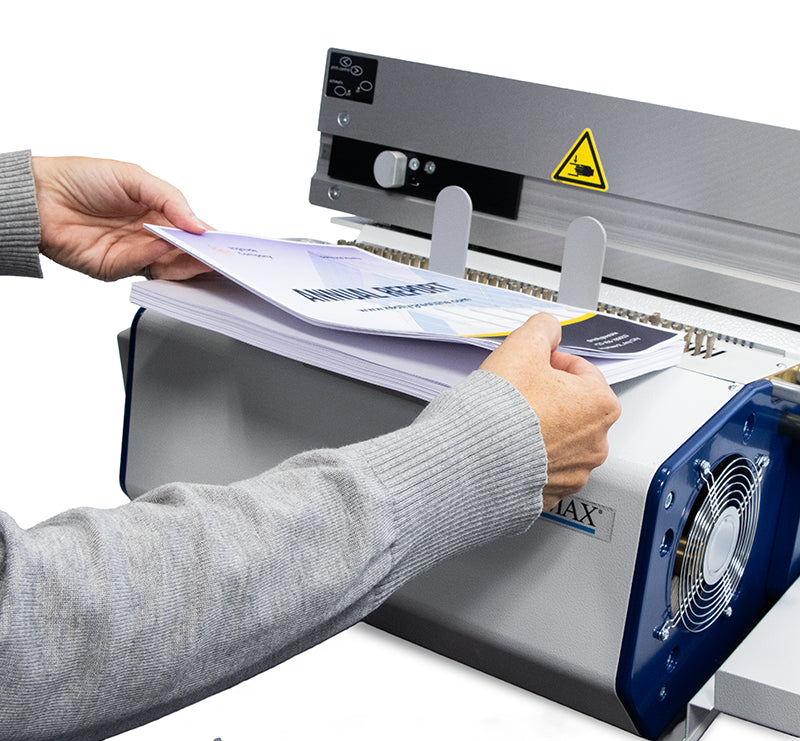

- Adjustable document shelf for easy paper handling
- Handles different types of paper stock
- Automatically ejects punched paper sets

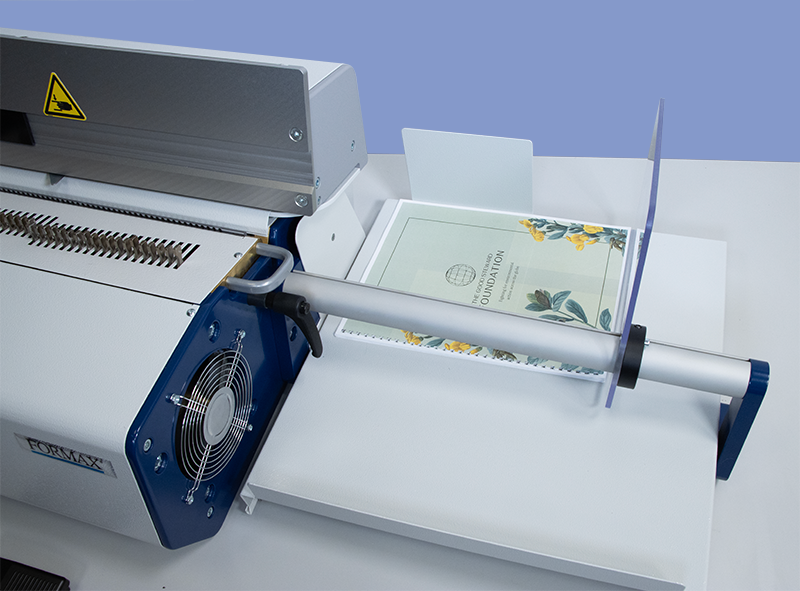

- Adjustable catch tray to collect finished sheets

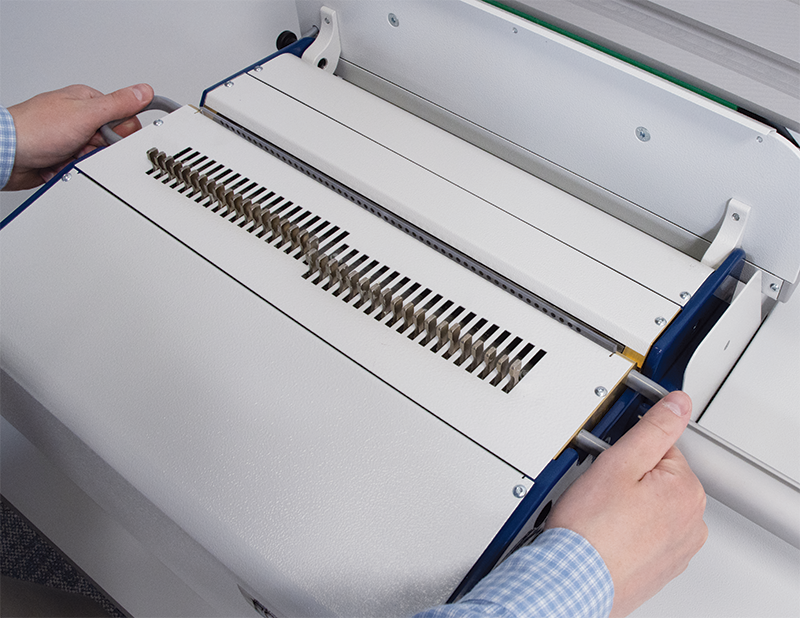

- Quick and easy punching die changes
- Dies available for wire, plastic comb, and spiral coil binding
- Compact design saves workspace

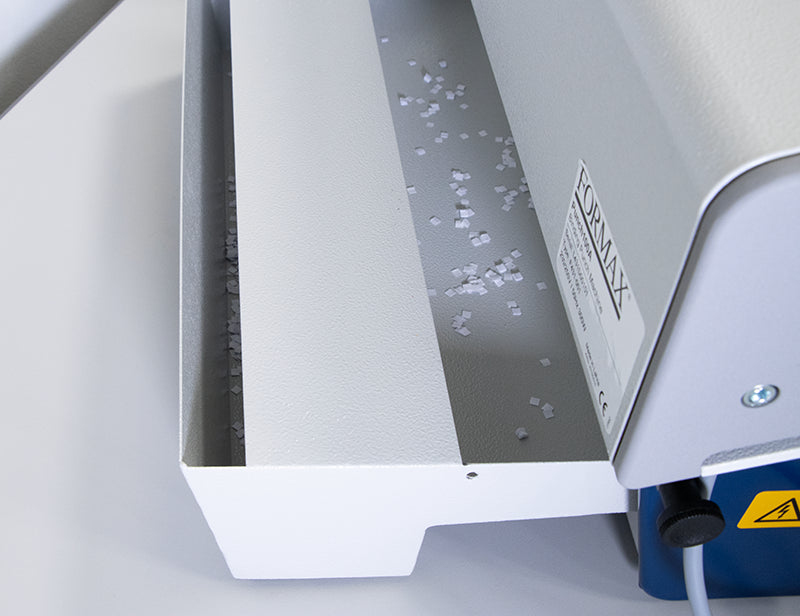

- Large, easy-to-remove waste tray
- Adjustable punching depth for different document sizes
- Multiple punch patterns available for various binding needs
Specifications
- Mechanical Cycles: 1,200/hr
- Max Punched Sheets: Up to 36,000/hr
- Punching Width: .39” - 13.4”(10mm - 340mm)
- Unpunched Length: 4.3” - 31.5” (110mm - 800mm)
- Max. Punching Thickness: .13” (3.5mm)
- Punching Operation: Automatic sensor or foot pedal
- Punch Dies Available: 3:1, 2:1 double-loop wire, plastic comb, spiral coil

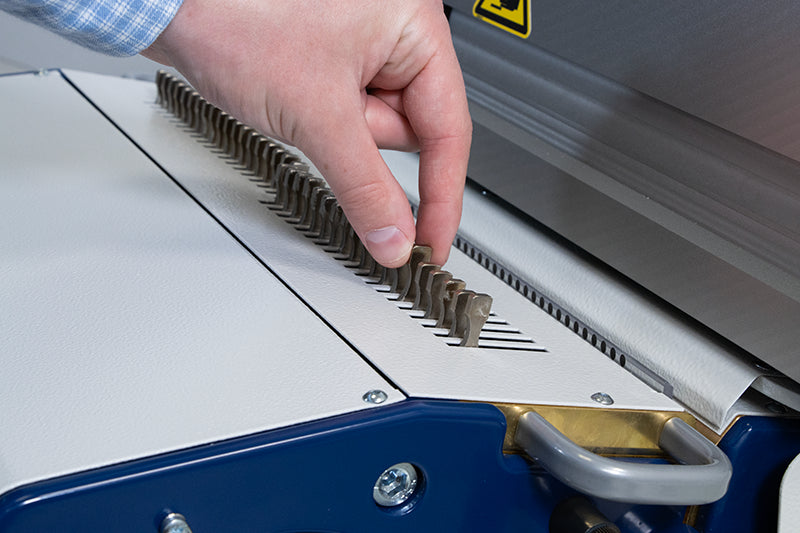

- Disengageable Punch Pins: Yes
- Variable Margin Depth: Yes
- Dimensions: 34.6” L x 25” D x 15” H (880 x 640 x 380mm)
- Weight: 116 lbs. (53kg)
- Power Supply: 115V, 60Hz, 300W
- Spiral / Binding101 Part Number: PUNCH100A
