Foster 16.4' Media Roll Lifter - 660 lbs Capacity, Ergonomic Design

Name: Foster 16.4' On-a-Roll Lifter (Low Profile) - 61574
Brand: Foster
SKU: 61574

$2,740.50

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 61574

Maximize Efficiency: Accommodates media rolls up to 16.4 feet wide, streamlining your workflow.
Compact Design: Ideal for tight spaces, ensuring easy maneuverability in any shop environment.
Durable Build: Constructed with rugged materials for long-lasting performance and reliability.
Comprehensive Warranty: Enjoy peace of mind with a 2-year warranty on key components and a 5-year warranty on cross bars.

Product Description

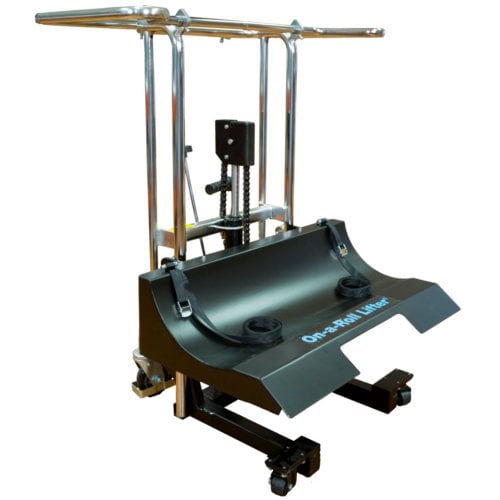

This low profile model Foster 16.4' On-a-Roll Lifter is designed specifically for sign makers and other businesses with the need to handle wide or heavy media rolls. This On-a-Roll Lifter can lift media as wide as 16.4ft(2.5m) or as heavy as 660lbs , with diameter as great as 15.75 inches. Its ergonomic pull bar allows users to maneuver around tight corners and through narrow passages. This Foster 16.4' Low Profile On-a-Roll Lifter is designed to operate even in shops with limited floor space.

Product Details

Easy-to-use operation reduces on-the-job injuries.

User-friendly operation avoids costly and dangerous handling mistakes that damage media.

Single-person operation saves labor and time.

Designed to operate even in shops with limited floor space.

Rugged construction ensures long lifter life.

Newly updated ergonomic pull bar and stronger media tray.

2-year Manufacturer's Warranty on all wheels, hydraulics and media tray. 5-year Manufacturer's Warranty on cross bars.

Specifications

Roll Weight Capacity: 300 kg (660 lbs)

Lift Height: 84 cm (33")

Max. Roll Width: 5 m (16".4")

Max. Roll Diameter: 40 cm (15.75")

Width x Depth: 111.6 cm x 85.5 cm (44" x 33.6")

Height: 119.4 cm (47")

Weight: 85 kg (188 lb)

Bottom Fork Clearance: 8.25 cm (3.25")

Manufacturer's Warranty: 2-year Manufacturer's Warranty on all wheels, hydraulics and media tray and 5-year Manufacturer's Warranty on cross bars

Video

The Foster Low Profile On-a-Roll Lifter Video

Transcript :

The Foster Low Profile On-a-Roll Lifter

The rugged new Foster On-a-Roll Lifter is designed to make loading large media rolls on superwide format printers quick and effortless.
Foster is proud to be an HP Partner.

Position the On-a-Roll Lifter in front of the roll
Lock the rear caster wheel brakes
Pull the nylon straps, moving the media into the securing tray
Pull the nylon straps towards you into the securing tray
Lock the straps securely around the media
Raise the media with the easy-to-use foot pump
Unlock the brakes
Large and heavy rolls up to 16.4 ft (5m) and 660 lb (300 kg) are easily transported
Easily move rolls around corners and into tight spaces
Move the roll to the printer
Media rolls may be lifted as high as 33.5 in (89.1 cm)
A handy release valve permits easily lowering the media roll
The Foster On-a-Roll Lifter also fits through standard doors
