Name: GBC Catena 105 40" Roll Laminator - 1715850
Brand: GBC
SKU: 1715850

We're sorry, but we no longer offer this item.

Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit

GBC Catena 105 40" Roll Laminator - 1715850

We're here for you!

Please call
1-800-944-4573
for help finding a comparable solution

Need Shopping Advice?
Call - (800)944-4573

Item# 1715850

40" thermal & cold roll laminator
Compatible with film up to 10mil thick (1 or 2.25" core) & boards up to 3/16" thick
Adjustable heat settings from 0��-300�� F
18-60" per minute adjustable speed

Product Description

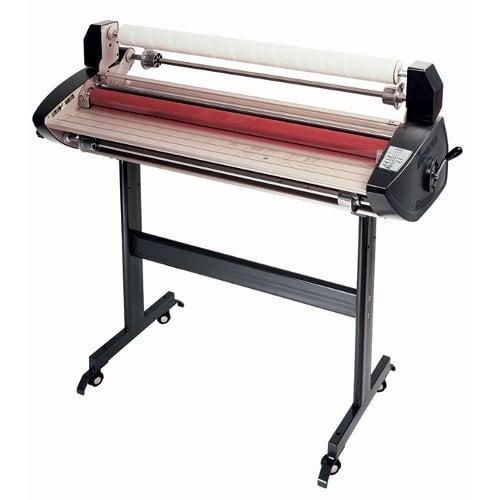

The GBC Catena 105 Roll Laminator is a versatile 40" laminator capable of freestanding lamination, encapsulation and mounting of digital inkjet output using thermal films or pressure sensitive (PSA) films. This is an excellent entry-level production unit to complement wide format inkjet printers. (thermal or PSA)

Product Details

Model: GBC Catena 105

Maximum Doc Size: 40"

Speed: 1.5' - 5' per minute

Compatible Film: 1.5 - 10mil

Core Diameter: 1" or 2.25" (3" Core Adaptor Available)

Compatible Supplies: 1" or 2.25" Core Roll Laminate 1.5-10mil Thick & Up to 40" Wide
Mounting Board - Up to 3/16" Thick

Weight: 154lbs

Warmup Time: 10 minutes

Adjustable Speed: Yes

Manufacturer's Warranty: 90 Day Manufacturer

Safety Approval: UL, CE, CSA Listed, TUV Certified

Power Requirements: 220v, 50/60 Hz, 15 amp

Specifications

LCD Display indicates temperature, speed and Ready/Wait condition

Silicone rubber rollers ensure timely clean-up

Interlocking feed tray and magnetic safety shield for safe operation

Designed for thermal or pressure sensitive film up to 10 mil

Roller gap adjustment handles mounting boards up to 3/16" (5 mm) thick

Rewind roller peels away pressure sensitive release liner

Infrared heating coil distributes heat evenly and improves lamination quality

8 bit microprocessor temperature control guarantees fast response time

Cooling fan ensures smooth, flat output

Exclusive preset temperature and speed settings for each film thickness

Fine tuning override controls for both temperature and speed for variations in paper conditions

Infrared heat detection provides instant reaction to heat changes on the silicone rollers

Max. Roll OD 5"

Compare to Similar Laminators

Model

Maximum Document Width

40"

44"

64"

Laminating Speed

1.5' - 5' per minute

20' per minute

Core Diameter

1" and 2.25"

Accessories Included

Yes

Cold Lamination

Yes

Thermal Lamination

Yes

Temperature Control

Yes

Visual Ready Alert

Yes

N/A

Warm-up time

10 min

N/A

Dimensions

51" x 17" x 21"

61.5" X 31.5" X 55.9"

81.2" X 31.5" X 55.9"

Warranty

Limited 90 Days Manufacturer's Warranty

Resources

Staff Review

GBC Catena 105 Roll Laminator Review

Roll laminators offer the perfect solution for when you need to laminate very large documents. One roll laminator you should consider is the GBC Catena 105. Here are its strengths and weaknesses.

Strengths:

The Catena 105 is the perfect laminator to use when working with wide-format documents. It can laminate items that are up to 40 inches wide, so it's perfect for posters, signage, and other large displays.
This machine is compatible with film that's up to 10 mil thick. Ten mil film is the thickest available and it's perfect for items that will be handled a lot or exposed to the elements. You can use both thermal and pressure-sensitive film with this device. (When using pressure-sensitive film, the rewind roller will peel away the backing so you don't have to.)
The Catena 105 is compatible with rolls of laminating film that have cores either 1” or 2.25”: thick. There's a special adapter you can use if your film has 3” core.
This device operates at speeds ranging from 1.5 to 5 feet per minute. Whatever the size of document you're laminating, it'll will definitely be processed quickly.
This device has adjustable speed and temperature settings so you'll be able to get the right results for no matter which document you're laminating. The temperature and speed settings are all shown on an LCD display. (The display will also let you know when the device is ready for use.)
The Catena 105 has silicone rollers so you can be sure you're getting the smoothest results possible. There's also a cooling fan that ensures things will look great and that the machine as whole won't overheat.
If you want to use mounting board to prepare visual aids or displays, you can so with the Catena 105. There are roller gap adjustment handles that you can manipulate so the machine will be able to accommodate boards that are up to 3/16” thick.

Weaknesses:

This laminator takes a long time to warm up. It will probably take about 10 minutes before it's ready for use.
It almost goes without saying that roll laminators tend to be large and the Catena 105 is no exception. It has dimensions of 51" (width) x 48" (height) x 21" (depth) and it weighs just over 150 pounds, so you'll need to exercise caution when moving it.
Unfortunately, this device has a shorter warranty than the majority of GBC's products. It only comes with 90 days of coverage.

The GBC Catena 105 is definitely a good choice if you're looking for a roll laminator. It has a lot of great features, such as its compatibility with both thermal and pressure-sensitive films. You'll be able to laminate all kinds and sizes of documents with this device, and you'll also find it easy to do. You'll just need to give the device ample time to warm up as well as be careful when moving it. If you do, you'll find that the Catena 105 may be the perfect roll laminator for you.
