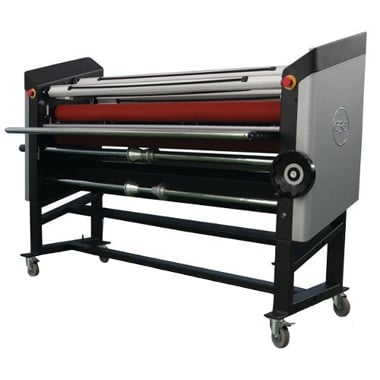

GBC Spire III 44T 44" Wide Format Laminator - 1737174

Introducing the Spire III 44T and 64T from GBC, the feature rich, low priced thermal laminators available in both 44" and 64" that proves performance doesn't have to be expensive. With the price and feature combination unmatched by the competition, the Spire III 64T and 44T allow you to create both thermal and pressure-senstiive applications including trade show graphics, signage, banners, and window displays. The sleek design and durable all steel construction of the Spire line promise reliability and performance. Equipped with an oversized two inch mounting gap, mounting to thicker substrates is effortless giving you the ability to create even some of the most challenging applications. Setup is easier than even for operators of any skill level. Two drop in auto-grip supply shafts and one multi-core media supply shaft require no adjustment and allow you to easily load media in core sizes from 2" to 3" plus additional auto-grip and multi-core media shafts can be added later when demand requires. Swing out front feed table and extra large fixed rear feed table make changing rolls and feeding hassle free. After the film is loaded, the simple intuitive control panel is visible from all sides of the machine letting you set the proper adjustments for your project easily and without strain. The infinite crank handle with scale indicator for gap and LED pressure readout guarantee operator comfort and quality output. Equipped with an infrared safety device in the main rollers, there's no need to worry about operator injury during the lamination process. 4" heated rollers ensure the machine retains heat even during longer runs and the chill idler roller allows you to created heat sensitive applications without waves or wrinkles. The Spire III 64 and 44T come with one upper front unwind, one upper front rewind, and one bottom front unwind. Additionally, you can add one lower front unwind, one top rear rewind, and one lower rear rewind. The upper front rewind removes release liner on pressure-sensitive applications and the bottom rear rewind allows for roll-to-roll applications such as long banners and vehicle graphics. It is also equipped with side brakes and clutch to create the proper tension for your film and media. Independently controlled upper and lower heat rollers allow for multiple film gauges and PSA films to be running concurrently to save you time and energy. And at 20 feet per minute, the Spire III 64T and 44T help you get the job done quickly and efficiently. The Spire III 64T and 44T from GBC, the best in class thermal laminators that proves performance doesn't have to be expensive.

Model Name	GBC Catena 105	GBC Spire III 44T	GBC Spire III 64T
Model
Maximum Document Width	40"	44"	64"
Laminating Speed	1.5' - 5' per minute	20' per minute	20' per minute
Core Diameter	1" and 2.25"	3"	3"
Accessories Included	Yes	No	No
Cold Lamination	Yes	Yes	Yes
Thermal Lamination	Yes	Yes	Yes
Temperature Control	Yes	Yes	Yes
Visual Ready Alert	Yes	N/A	N/A
Warm-up time	10 min	N/A	N/A
Dimensions	51" x 17" x 21"	61.5" X 31.5" X 55.9"	81.2" X 31.5" X 55.9"
Warranty	Limited 90 Days Manufacturer's Warranty	Limited 90 Days Manufacturer's Warranty	Limited 90 Days Manufacturer's Warranty
