GBC HeatSeal Ultima 35 EzLoad 12" Laminator - Quick & Versatile

Name: GBC HeatSeal Ultima 35 EzLoad 12" Roll Laminator - 1701680
Brand: GBC
SKU: 1701680
Rating: 5.0 (2 reviews)

$966.68

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 1701680

Patented EzLoad technology for effortless film loading, eliminating upside-down loading mistakes.
Quick warm-up time of under one minute, allowing you to start laminating almost immediately.
Built-in trimmer for clean, professional edges without the need for additional tools.
Auto shutoff feature after one hour of inactivity to enhance safety and prolong machine life.

Product Description

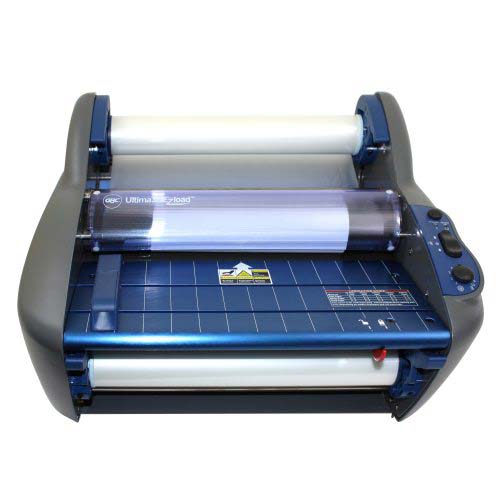

With its patented EzLoad technology, the Brand New GBC Ultima 35 EzLoad Laminator is the next generation of roll laminating machines. The innovative design greatly reduces film-loading time and prevents the user from loading the film upside down, thus eliminating costly service calls. Packed with features including a mil thickness range of 1.7 mil to 5 mil NAP II Lo-melt laminating films, one minute warm up and more, the GBC Ultima 35 EzLoad roll laminator provides a quality laminating experience. The GBC Ultima 35 EZLoad laminator is ideally suited for new users, multiple users, and schools.

Product Details

Photo Quality: Yes

Warm Up Time (3mil): One Minute

Temperature Control: Variable

Cold Lamination: No

Speed Control: Fixed

Heating: Ceramic Heated Shoe

Max Document Width: Letter

Film Thickness: 1.7 to 5mil

Ready Indicator: Yes

Rollers: Four Motor Driven

Cooling Fans: Yes

Reverse Function: Yes

Auto Shut off: Yes (1 Hour)

Time to Laminate Letter Size Document: 18 Seconds

Built In Trimmer: Yes

Paper Guide: Yes

Compatible Supplies:
GBC Ultima 35 EZload Laminating Film - 5mil 12" x 100'
GBC Ultima 35 EZload Laminating Film - 1.7mil 12" x 300'
GBC 5mil 11.5" x 100' NAP II Sprint EZload Roll Film

Actual Machine Dimensions: 23.38"x15.38"x21"

Actual Machine Weight: 41.75lbs

Shipping Length: 23.38"

Shipping Width: 21"

Shipping Height: 15.38"

Shipping Weight: 41.75lbs

Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Voltage: 120V - 60hz

Specifications

Desktop Size. 12" wide format laminates letter-sized documents and more

Versatile. 1.7 mil to 5 mil NAP II Ez-Load roll film

Reduce Downtime. EzLoad technology provides fast film loading and prevents loading the film upside down

Improve Productivity. Laminates at a fixed speed of 36" per minute

No Waiting. Warm-up time of less than one minute

Extended Machine Life. Auto shutoff after one hour of non use

Integrated Trimmer. No more searching for scissors with built-in trimmer

Motor Reverse-Function. Reversible motor assists in removal of film wraps.

GBC Quality and Service. Limited 1 Year Manufacturer's Warranty and available Equipment Maintenance Agreement (EMA)

Primary UPC. 033816054516

Compare to Similar Laminators


Product Name	New GBC Catena 35 12" Roll Laminator - 1715835	GBC Ultima 65 EZload 27 Inch School Roll Laminator - 1710740B	GBC Pinnacle 27 EZ Load 27" Thermal Roll Laminator - 1701720EZA	GBC Pinnacle 27 Standard 27" Thermal Roll Laminator - 1701700A	GBC HeatSeal Ultima 35 EzLoad 12" Roll Laminator - 1701680
Product code	1715835	1710740B	1701720EZA	1701700A	1701680
Core Diameter	1" and 2.25"	1"
Dimensions	27" x 13" x 18"	35" (W) x 21" (D) x 14" (H)	42" x 15" x 24 1/2"	42" x 15" x 24 1/2"	18.11" x 11.14" x 16.92"
Thickness (mil)	Up to 10 mil				Up to 10 mil
Warm-up time (minutes)		10	8-10	8-10	1
Warranty	None	Limited 90-day	Limited 1-year warranty	Limited 1-year warranty	Limited 1-year warranty

Product Name

New GBC Catena 35 12" Roll Laminator - 1715835

GBC Ultima 65 EZload 27 Inch School Roll Laminator - 1710740B

GBC Pinnacle 27 EZ Load 27" Thermal Roll Laminator - 1701720EZA

GBC Pinnacle 27 Standard 27" Thermal Roll Laminator - 1701700A

GBC HeatSeal Ultima 35 EzLoad 12" Roll Laminator - 1701680

Product code

1715835

1710740B

1701720EZA

1701700A

1701680

Core Diameter

1" and 2.25"

Dimensions

27" x 13" x 18"

35" (W) x 21" (D) x 14" (H)

42" x 15" x 24 1/2"

18.11" x 11.14" x 16.92"

Thickness (mil)

Up to 10 mil

Warm-up time (minutes)

8-10

Warranty

None

Limited 90-day

Limited 1-year warranty

Video

GBC HeatSeal Ultima 35 EzLoad 12 Inch Roll Laminator Demo Video

Transcript :

Welcome to MyBinding video. Today we look at the HeatSeal Ultima 35 EzLoad, a 12-inch roll laminator by GBC. Easy and super fast, the Ultima 35 is a great roll laminator. The side fence helps keep your projects consistent as you send them through. Simple forward and reverse knob keeps things quick and to the point, and spin the dial to set the heat level. This is on ten mil thickness, so it's as slow as it possibly can go and you can see it's pretty fast. Your project comes out the backside. When it's all set, turn the machine off and cut it. You can do so with scissors or with the razor tool on the backside of the machine, which is very convenient for tight spaces. Switching out the laminate rolls is quite easy. Simply lift up the lever on each side of the roll and pull it off. You can thread it right out by pushing the forward or reverse button. You get to the bottom roll by unlocking the table, pushing the two levers again, and remove it and replace it the same way. There it is, the HeatSeal Ultima 35 EzLoad by GBC. For more demos, reviews, and how tos on this product and many more, check out MyBinding.com.

Staff Review

GBC Ultima 35 EZload Product Review

The GBC Ultima 35 was introduced to the laminating machine market as an answer to a couple of needs. First, it was designed to be a low-cost roll laminator that just about any business, church or school could afford. Second, they wanted to address the ongoing problem of users feeding roll laminators incorrectly and damaging their machines. Here we take a look at the Ultima 35 and list what we consider to be its strengths and weaknesses.

Strengths:

One of the first things we noticed (and liked) about the Ultima 35 is the extremely fast warm-up time of one to two minutes. This compares extremely favorably to almost any other machine on the market, and should be a big boost to productivity.
The big shining feature of the Ultima 35 is that it finally addresses the problem of inexperienced or distracted users loading the laminating film backwards on roll laminators. In other words, users who, quite by accident, load their laminators with the adhesive side facing toward the rollers. We don't know of you have ever done this on a roll laminator, but rest assured all it does is create a huge mess, and usually a service call is required at that point. The Ultima 35 has solved this problem by use of a specialized type of laminating film that has a different sized core on each side of the film. This makes it absolutely impossible to load the film the wrong way.
The Ultima 35 is pretty versatile, accepting roll film from 1.7 to 10mil thick. This means that you will be able to laminate just about any sort of document in all of the available rigidities. In theory, that is. For the first year that this machine was on the market 10mil film was not available. However, GBC recently released both 7mil and 10mil film for use with the Ultima35. Also, in 2008, GBC made available some matte films for the Ultima 35 in addition to their standard gloss films.
Some of the other things that we really liked about the Ultima 35 were that you can adjust the speed at which it laminates, which is great for laminating different paper styles and materials. Also, this machine has both forward and reverse functions helping with any wraps or jams that may occur. And finally, we really appreciated the inclusion of a handy built in trimmer to help with the finishing process.

Weaknesses:

We suppose one could consider it weakness that all of the supplies intended to be used with the Ultima 35 (such as laminating rolls) are proprietary. This means is that the user will be required to buy and use the rolls that are specifically designed by GBC to work with this machine. Unfortunately, these supplies are a little bit more expensive than other similar supplies that are available. However, this machine is so much lower in price (not to mention feature-rich) than most other similarly equipped laminators on the market, it may be well worth it in the end.
Though, as we mentioned above, you can't load the Ultima 35 the wrong way, loading it the right way is not the easiest thing in the world, and may take you a time or two to master. Once you've got the hang of it, however you should be breezing along.
