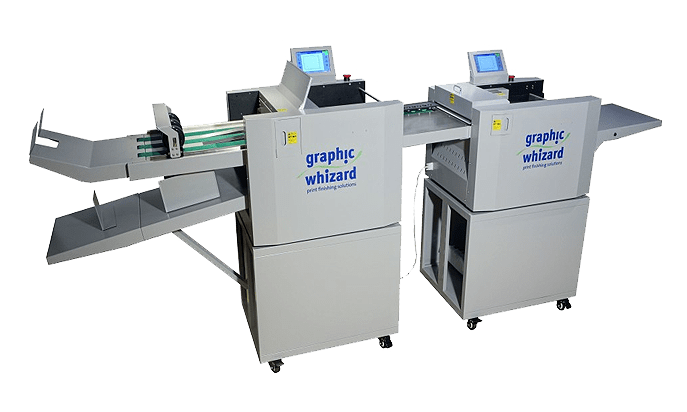

Product Description
The PT 335CKF is a complete crease/perf/fold finishing equipment that is designed to provide users professional quality finished pieces while eliminating inefficient set-up time. The PT 335CKF feeds up to a maximum sheet size of 13" x 35.4" with an effective 4" pile feeder and can run up to 32 creases or perforations per sheet. It has s strike perf capabilities that can "T" perf or box "perf", and then either fold or output onto the bypass tray. The PT 335CKF has an automated set-up through touchscreen control, and has a quick job changeover when using the 64 job memory, even for one time jobs. The PT 335CKF eliminates cracking, offer more versatility, reduce set up times, and deliver high quality results all with less operator intervention. With fold speed at over 7,000 sheets per hour, the PT 335CKF is the ideal solution to all the production level creasing/perfing/folding demands in the digital market today.
Product Details
- Electrical: 110-130v, 50/60hZ, 15a
- Speed: 7,040 sheets/set per hour (11" x 8.5" half fold)
- Maximum Sheet Size: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m)
- Minimum Sheet Size: 5.5" wide x 8.5" long(13.97cm x 21.59cm)
- Stock Weight: 150-350 gsm
- Tabletop/Floor: Floor
- Max Number of Creasing Positions: 32
- Program Memory: 64
- Feeder: 4” vacuum pile feed
Specifications
- Fold speeds of over 7,000 sheets per hour
- Fold paper from 150 to 350 GSM
- No limitations between creases/perfs
- Partial perforation in Both directions
- Self adjusting automated smart delivery
- Three years parts electronics warranty
- Automated, or manual set up for custom jobs
- Fold bypass tray for creasing/perfing without folding
Compare to Similar Graphic Wizard Creasers
| Model Name | PT-335 A Plus | PT-335 CKF | PT-335 AKF | PT-331S | PT-335-B | PT-330 Mini |
|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
| Electrical | 220-240V 50/60Hz, 20A | 110-130v, 50/60hZ, 15a | 110-130v, 50/60hZ, 15a | 110-130V, 50/60Hz, 15A | 110-130V, 50/60Hz, 15A | 110-130V, 50/60Hz, 15A |
| Speed | 4,800 sheets/set per hour | 7,040 sheets/set per hour (11" x 8.5" half fold) | 6,500 sheets/set per hour (11" x 8.5" half fold) | 2,800 sheets/set per hour | 4,500 sheets/per hour | 1,800 sheets per hour |
| Stock Size | Min: 4.75" x 3.25" (12.06cm x 8.25cm), Max: 12.95" x 25.5" | Min: 5.5" wide x 8.5" long(13.97cm x 21.59cm), Max: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m) | Min: 5.5" wide x 6" long (13.97cm x 15.24cm), Max: 13" wide x 35" long (33.02cm x 88.90cm) | Min: 1.97" wide x 3.94" long (5cm x 10.01cm), Max: 13" wide x 25.6" long (33.02cm x 65.02cm) | Min: 4.7" wide x 5.5" long (11.93cm x 13.97cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm) | Min: 2.5" wide x 4" long (6.35cm x 10.16cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm) |
| Stock Weight | 26# bond - 16 pt | 150-350 gsm | 150-350 gsm | 150-350 gsm | 150-350 gsm | 100-350 gsm |
| Tabletop/Floor | Floor | Floor | Floor | Tabletop | Tabletop | Tabletop |
| Max. # Creasing Positions | 16 | 32 | 32 | 6 | 32 | 6 |
| Program memory | 50 | 64 | 64 | 30 | 30 | 30 |
| Feeder | Airfeed | 4" vacuum pile feed | 4" vacuum pile feed | Manual | 4" vacuum pile feed | Manual |
| Manufacturer's Warranty | 3 Year Mechanical Parts and Electronics | 3 Year Mechanical Parts and Electronics | 1 Year Mechanical Parts and Electronics | 3 Years Mechanical Parts and Electronics | 1 Year Mechanical Parts and Electronics |
