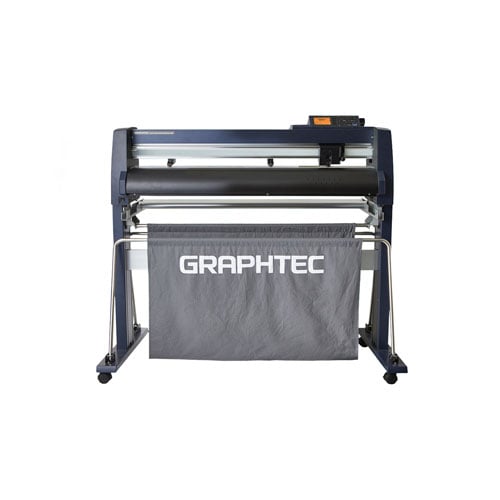

This Graphtec FC9000-75 30" Roll Fed Vinyl Cutter and Plotter is Graphtec's most advanced, versatile roll fed cutting plotter to date, and replaces the FC8600 series cutting plotter. This cutting plotter is featured with 58.5 inches per second cutting speed, a 600gf (5.88 Newton) cutting force, and a 30" cutting width. Respected and admired around the world as for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC9000 is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically. The FC9000 has a new media basket system that includes a flange kit (roll holder) and optional auto take up roller for improved tracking. The FC9000-75 30" Vinyl Cutter comes complete with floor stand, media roll rack, media catch basket, Graphtec Pro Studio, Cutting Master 4 plugin for Adobe Illustrator and CorelDraw, and Graphtec Studio for Mac. Also available in other models with 42", 54", 64" cutting widths.
Applications:
Features:
| Model Name | FC9000-75 | FC9000-100 | CE7000-130 | FC9000-140 | FC9000-160 |
|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
| Max. Cutting Speed | 58.5 inches per second (45 degree direction) 41.3 (axis direction) | 58.5 inches per second (45 degree direction) 41.3 (axis direction) | 39 inches per second (45 degree direction) | 58.5 inches per second (45 degree direction) 41.3 (axis direction) | 58.5 inches per second (45 degree direction) 41.3 (axis direction) |
| Cutting Force | Max. 600 gf in 48 steps | Max. 600 gf in 48 steps | Max. 4.41N (450gf) | Max. 600 gf in 48 steps | Max. 600 gf in 48 steps |
| Axial Acceleration | Max. 39.2 m/s2 (4 G) in 8 steps | Max. 39.2 m/s2 (4 G) in 8 steps | Max. 45.6' per second at 45° direction | Max. 39.2 m/s2 (4 G) in 8 steps | Max. 39.2 m/s2 (4 G) in 8 steps |
| Max. Cutting Area (W x L) | 30 in x 164 ft (762 mm x 50 m) | 42 in x 164 ft (1067 mm x 50 m) | 50" × 164' | 54 in x 164 ft (1372 mm x 50 m) | 64 in x 164 ft (1626 mm x 50 m) |
| Guaranteed Precision Cutting Area | 29.21 in x 50 ft | 41 in x 32 ft, 35.2 in x 50 ft | 50" x 79" (50" x 16.5') | 53 in x 32 ft, 35.2 in x 50 ft | 63 in x 32 ft, 35.2 in x 50 ft |
| Mountable Media Width | Min. 1.96 in / Max. 36.22 in | Min. 1.96 in / Max. 48.19 in | Min. 2 in / Max. 54 in | Min. 1.96 in / Max. 60.20 in | Min. 1.96 in / Max. 72.83 in |
| Max. Cross Cut Width | 30 in | 42 in | 54 in | 64 in | |
| Number of Push Rollers | 2 rollers | 3 rollers | 4 rollers | 4 rollers | 4 rollers |
| Blade Types | Supersteel (0.9 mm or 1.5 mm diameter) | Supersteel (0.9 mm or 1.5 mm diameter) | Supersteel (0.9 mm or 1.5 mm diameter) | Supersteel (0.9 mm or 1.5 mm diameter) | Supersteel (0.9 mm or 1.5 mm diameter) |
| Pen Types | Water-based fiber-tip pen, Oil-based ballpoint pen | Water-based fiber-tip pen, Oil-based ballpoint pen | Water-based fiber-tip pen, Oil-based ballpoint pen | Water-based fiber-tip pen, Oil-based ballpoint pen | Water-based fiber-tip pen, Oil-based ballpoint pen |
| Pouncing Tool Type | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | |
| Media types | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick | Up to 25 mil (.63 mm) cutting Graphtec Rhinestone Stencil material GRS 1510 Marking film (PVC film / fluorescence / reflective), Polyester film (under certain conditions) | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick |
| Buffer Memory | 2 MB | 2 MB | 2 MB | 2 MB | 2 MB |
| Included Software | Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac | Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac | Graphtec Pro Studio(Windows)(*6), Graphtec Studio(Mac), Cutting Master 4(*6), Windows Driver | Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac | Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac |
| Compatible OS | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14 | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14 | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14 | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14 | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14 |
| External Dimensions (W x D x H) | Approx. 50" x 28" x 48" (1270 x 711 x 1219 mm) | Approx. 61.8" x 28" x 48" (1570 x 715 x 1219 mm) | Approx. 67" x 32" x 48" (67" x 45.2" x 48") | Approx. 73.6" x 28" x 48" (1870 x 711 x 1219 mm) | Approx. 84" x 28" x 48" (2130 x 711 x 1219 mm) |
