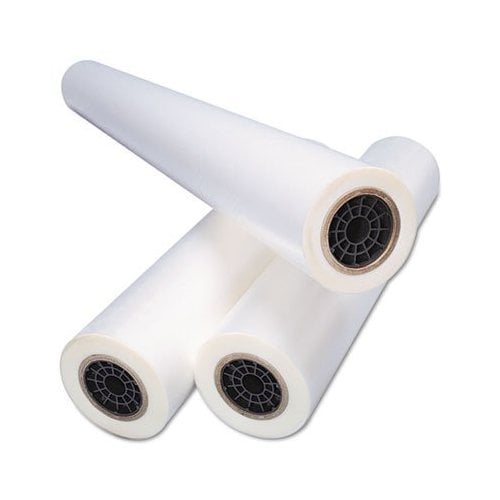

This Interlam Pro Glossy UV Overlaminating Film is a flexible monomeric soft calendared PVC laminating film with a glossy finish, coated on one side with a pressure sensitive, aqueous acrylic adhesive that prevents silvering and produces a strong bond to UV inks as well as latex and other ink technologies. The gloss finish of Interlam Pro Glossy film enhances image colors, and provides UV protection for outdoor graphics. This overlaminating film is suitable for internal and external use on flexible media substrates . The Interlam Pro Glossy UV Overlaminate is perfect for high-volume photographic prints, POP displays, architectural renderings, promotional displays, and event signage.
| Part Number | Size (W x L) | Thickness | Core Size | Finish |
| ILG38150 | 38" x 150' | 3" Core | 4 mil | Gloss |
| ILG38164 | 38" x 164' | 3" Core | 4 mil | Gloss |
| ILG51150 | 51" x 150' | 3" Core | 4 mil | Gloss |
| ILG51164 | 51" x 164' | 3" Core | 4 mil | Gloss |
| ILG54150 | 54" x 150' | 3" Core | 4 mil | Gloss |
| ILG61150 | 61" x 150' | 3" Core | 4 mil | Gloss |
| ILG61164 | 61" x 164' | 3" Core | 4 mil | Gloss |
| Film | Gloss Monomeric Soft Calendared PVC |
|---|---|
| Adhesive | Acrylic (Pressure Sensitive) |
| Release Liner | 2 Side PE Coated, 1 Side Siliconized Kraft |
| Film Thickness | 3 mil (75µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 3:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | 3 years |
| Service Temperature Range | -13°F to 302°F (-25°C to 150°C) |
| Peel Strength (20 min, FTM1) | 11 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
| Equipment Type | Temperature | Speed |
|---|---|---|
| Roller Laminator | Room temperature to 104°F (40°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | Not recommended | |
