Product Description

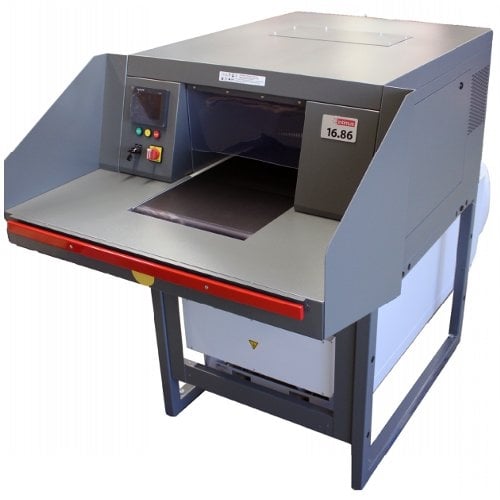

The Intimus 16.86 Smartshred Industrial Shredder/Baler Combination is proven to be the cornerstone for the privacy-friendly disposal of disused media. It is featured with SmartShred Touchscreen Controls, with session logging, maintenance reminders, and increased cutting efficiency. With SmartShred electronic automation, the 16.86 will perform longer and have far fewer service calls than competitive products. This large document shredder has a shredding capacity of up to 330 sheets (70 g/m2) and up to 290 sheets (80 g/m2) of paper at a time. It can also shred paper clips, CDs/DVDs, credit cards,and floppy disks. The Intimus 16.86 6mm x 50mm has a working width of up to 19.5" that is suitable for all standard computer formats. The spacious feed table with integrated infeed conveyor belt provides controlled, effortless, safe and fast loading. The Intimus 16.86 is equipped with a standard safety feature which is the chest bar that shuts down the conveyor and cutting head when the chest of the user leans too close the cutting head. This is a great safety feature for users not accustomed to the power of an industrial shredder. The 16.86 combines the shredder with a press baler for immediate fully automatic compaction of the cut material into compact bales. Reduction effect compared to the loose collection of the cuttings is about 70%. Secure the most sensitive data in your workplace with this Intimus 16.86 Smartshred 6mm x 50mm Level P-3 Cross-Cut Industrial Shredder with Baler.
Product Details
- Shred Size: 0.24" x 1.97" (6 x 50 mm)
- Number of Users: 50+ persons
- Security Level DIN 66399: P-3/ O-3 / T-3 / E-2
- Shredding Capacity: 300-330 sheets 70 g/m² (260-290 sheets 80 g/m2)
- Cutting Speed: 78.7 ft/s (0.24 m/sec)
- Throughput: 1058.2 lbs/h (480 kg/h)
- Noise Level: 61 dB
- Also Shreds: Paper Clips, CDs/DVDs, Credit Cards and Floppy Disks
- Weight: 2769 lbs (1.256 kg)
- Dimensions (W x D x H): 111.4"/134.6" x 47.2" x 61" (283/342 x 120x 155 cm)
Specifications
- Features:
- Shredder features see Model 16.50 SmartShred.
- Electronic compacting chamber level monitoring.
- Shredder loading can be continued while baler is compressing the material.
- Pushbutton control for bale ejection.
- Alternative of bale ejection into plastic sack forvclean, dustfree transport and weatherproof packaging.
- Shredder and baler operate in tandem.
- Audible "bale completed" signal and accompanying the cutting process is halted.
- PLC Control:
- More Information.
- Exact error display.
- Display when service would be benefi cial.
- Useful information such as operating hours or blocking notifi cation.
- All possible accessories are saved in the software and only need to be activated.
- Via an USB-stick or a SD card the customer can change the software of the PLC.
- The display can also be adjusted to customer requirements.
- For 16.86, a further supply, like the feed conveyor, is prepared from point of hardware.
