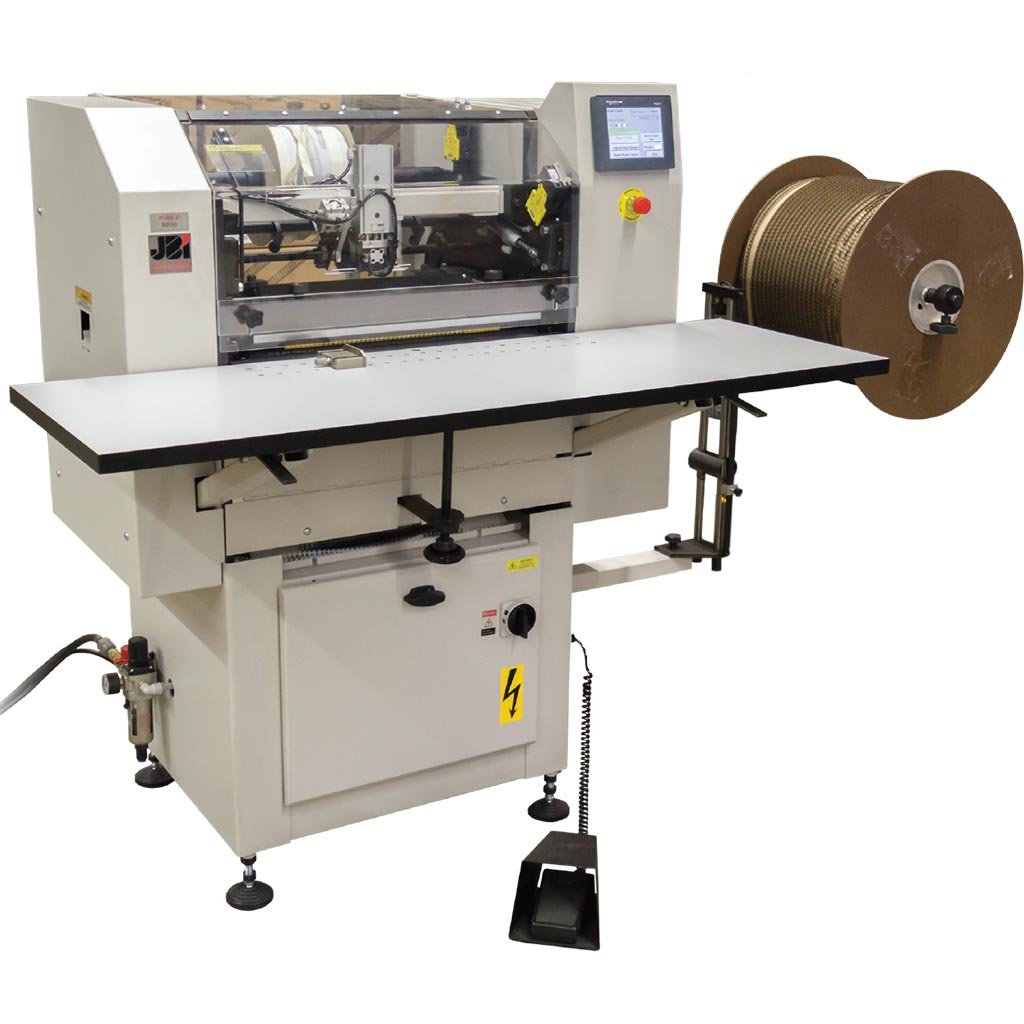

The James Burn BB50H-M3 High Speed Semi-Automatic Wire Binding Machine finishes documents and calendars up to 20" wide, with variable output of 600-1200 books/hour. It can skip bind and includes a central hanger feed system which can be disengaged. The BB50H automatically finishes hand fed pre-punched documents with wire sizes from 1/4" up to 1", using either standard or jumbo spools in 3:1 and 2:1 pitches. Size, pitch and format changes are electronically controlled from the user-friendly 'Touch Key' pad. This James Burn BB50H-M3 High Speed Semi-Automatic Wire Binding Machine is designed to produce perfectly bound books and calendars all day long.
Product Details
Versatile: BB50H-M3 Finishes documents and calendars up to 20" in width.
Productive: High output speeds of 600-1200 books per hour, depending on finishing type and operator skill.
Easy to Use: Automatically cuts wire to length, feeds and positions wire for insertion, and finishes hand fed pre-punched documents and calendars.
Adaptable: Accommodates all Wire-O sizes from 1/4" up to 1", using either standard or jumbo spools in 3:1 and 2:1 pitches.
Skip Binds: With or without calendar hangers.
Hanger Features: Central hanger feed system on both models, which can be disengaged. "Missing Hanger" detectors. Uses #’s 2, 3 & 4 Standard and Euroslot-style hangers from 4"-16".
Touch Keypad Control: Most functions variable and keypad controlled including size, pitch and format changes.
Accessible: All tool changes and adjustments made easily from front of machine.
Efficient: Finishes from economical Wire-O spools. Automatic features reduce make-readies.
Ergonomic Design: Operator-friendly with large table-top working surface helps reduce fatigue.
Hanger Features:
Central hanger feed system on both models, which can be disengaged.
"Missing Hanger" detectors.
Uses #s 2, 3 & 4 Standard and Euroslot style hangers from 4"-16".
Specifications
Air Required: 80 PSI using 15 CFM max.
Voltage Requirements: 115 V 60 Hz
Dimensions (BB50H): 52" H x 58" W x 45" D
Weight (BB50H): 1437 lbs.
Dimensions (Spool Unwind Unit): 49" H x 20" W x 28" D
