04JBWOCHK10
$5,861.21
Product Description

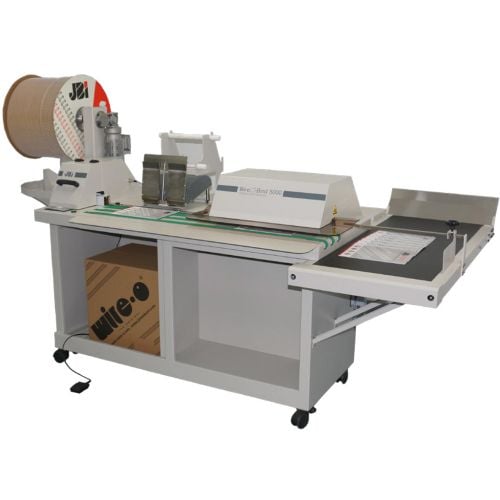

Find efficiency and convenience with semi-automated wire finishing using the James Burn WOB5000 finisher. This commanding wire binding system offers semi-automatic operation that is perfect for digital printers, print finishers, and others who bind a various metal wire documents. The Wire-O Bind 5000 finishes documents at impressive speeds up to 920 cycles per hour. It is easy to set up and operate, accepting various formats with quick changeover from the touch screen control panel. This automatic industrial wire binding machine was also manufactured with operator safety in-mind. Compatible with James Burn Wire-O® spools and cut wire cut with easy formatting and no mechanical adjustments required. Optional accessories expand the capabilities; an automatic hanger module allows for wall calendar making.
Product Details
- Fast – Run speed up to 920 documents per hour with automatic set up that helps reduce waste. 2 types of plug & play reception available (standard or conveyor) to accommodate most workflow modes. Optional plug & play automatic hanger feeder with table extension for large wall calendars.
- Efficient – Two types of plug & play reception available (standard or conveyor) to accommodate most workflow modes. Optional plug & play automatic hanger feeder with table extension for large wall calendars.

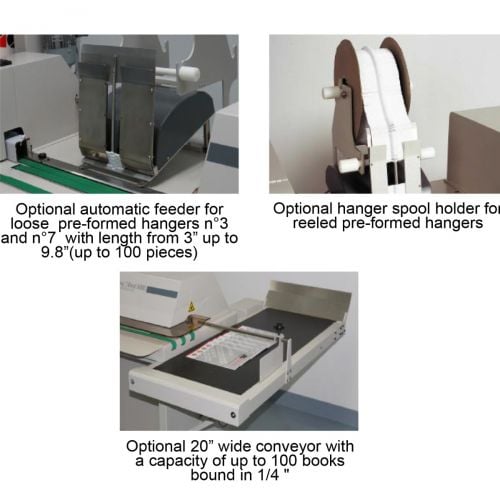

- Optional Accessories – Optional plug & play automatic hanger feeder accessory with table extension available to accommodate large wall calendars.
- Versatile – Accepts all Wire-O® binding sizes in 3:1 and 2:1 pitch for compatibility with many document types and sizes. Also handles flush-cut and overhanging covers, including index tabs and large wall calendars, using Wire-O® spools or cut wire spines.
- Spools & Cut Wire – Accepts Wire-O® spools or cut wire spines.

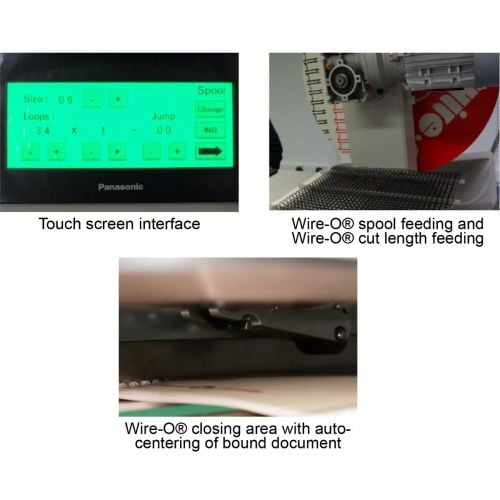

- User Friendly – All size and format setups are instantly adjustable by touch screen digital keypad with no mechanical adjustments necessary. Wire- O® size changeovers are done in 2-5 minutes including spool replacement.
- Ergonomic – Large workstation table-top helps reduce operator fatigue.
- Small Footprint & Mobile – A small footprint takes up little room and rolling caster wheels allow for easy mobility.
Specifications
- Item #: 04JBWOB5000-GRP
- Manufacturer: James Burn
- Manufacturer Item #: WOB5000US
- Model: WOB 5000 (Wire-O Bind 5000)
- Maximum Document Size:
- 20” (500mm) Binding Edge up to 9/16’’ x 20”
- 14” (350mm) Binding Edge for all other wire sizes x 20”
- Minimum Document Size: 2.5” (65mm) Binding Edge x 1.5” (38mm)
2” (54mm) Binding Edge x 1.5” (38mm) with Wire-O® cut length - Document Thickness: Up to 1-1/8” (28mm)
- Cycle Speed: Up to 920 books/hour
- Wire-O® Sizes:
- 3:1 Pitch from 1/4” - 9/16"
- 2:1 Pitch from 5/8” - 1-1/4”
- Oversize Covers:Yes, Possible
- Skip Binding:Multiple (up to 4 jumps of 2 loops min each). Only in spool mode.
- Optional Hanger Feeder:Using loose (up to 100pcs) or reeled pre-formed hangers n°3 and n°7 with length ranging from 76mm up to 250mm
- Reception Capacity:Standard tray: 50mm, Optional conveyor reception: up to 100 books 1/4’’
- Spool Change Over:In less than 5 minutes; integral storage space for one spool
- Control Panel:Touch screen
- Format Set Up Time:Fully automatic in less than 2 minutes
- Power:220/240 V (50Hz) 1ph - 110/120 V (60Hz) 1ph
- Actual Machine Weight : 320 lbs
- Shipping Length: 210
- Shipping Width: 96
- Shipping Height: 153
- Shipping (Web) Weight: 448 lbs
- Shipping Method: Freight Truck
- Compatible Accessories: Reception Conveyor
Calendar Hanger Feeder
WOB Spool Holder Kit - Compatible Supplies: 3:1 & 2:1 Wire-O Spools
Twin-Loop Wire - Spiral / Binding101 Part Number: 04JBWOB5000
