Product Description

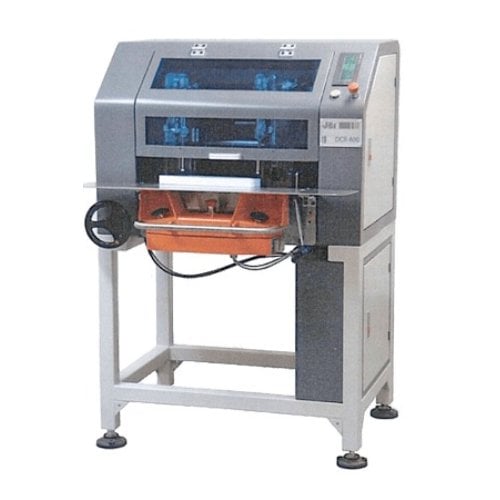

The DRC-400 is a compact machine designed to make round corners on any material ranging from books, note pads, diaries, cards. Right and left corners can be cut simultaneously in a single stroke. The cutting thickness of up to 100mm combined with a mechanical speed of up to 24 cycles / minute provide optimum output for a one man operation. It is the ideal solution for medium to long runs with a regular output.
Product Details
- Productivity : the right and left corners can be cut simultaneously in a single stroke. The cutting thickness of up to 100mm combined with a speed of up to 24 cycles / minute provide optimum output for a one man operation.
- Versatile : The DCR 400 can accommodate a wide range of dies with radius ranging from 1/8" to 1". It can also be operated as a single corner rounding machine.
- User-friendly : easy adjustments and adjustable work table angle ensure optimum working conditions.
Specifications
- Feeding Mode: Manual
- Max Paper Sizes: 400 x 297 mm
- Min Paper Sizes: 88 x 55 mm
- Speed: 24 cycles/minute
- Max Cutting Thickness (paper only): 100 mm
- Die Radius from: 1/8" to 1"
- Work Table Adjustable Angle: Up to 20°
- Voltage: 200/240 V (50 Hz) 1 ph - 110/120 V (60 Hz) 1 ph
- Power Consumption: 0.25 kW
- Air Pressure: 6 to 8 bars
- Dimensions: 0.84 x 0.83 x 1.31 (H/a) m
- Net Weight: 220 kg
