Product Description

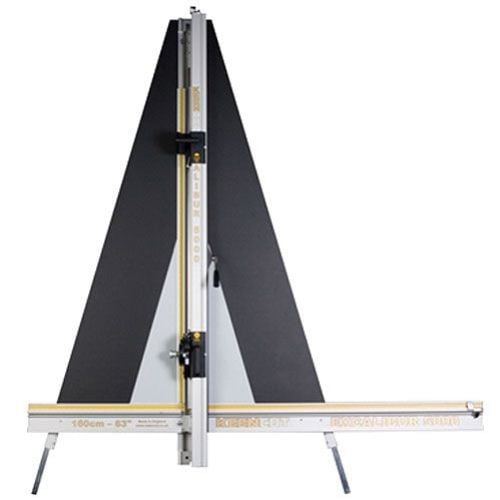

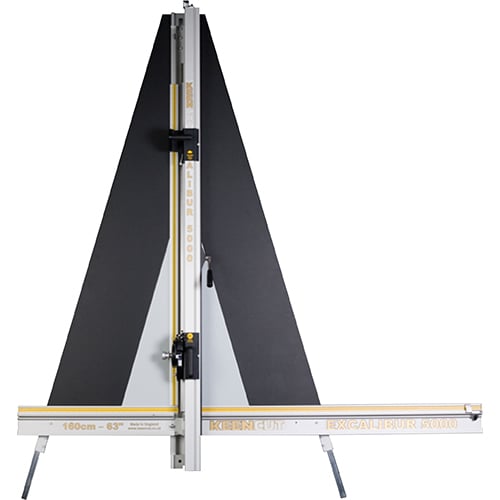

The Keencut Excalibur 5000 finishing substrate cutter is the perfect solution for print, graphic, sign, photo, and framing shops. Designed as four precision cutters in one, the Keencut Excalibur 5000 can easily trim a wide range of materials accurately and perfectly square with minimum effort. The Excalibur easily saves your business time and money by being an easy to use cutter with features like counter balancing, telescoping legs, a wall mounting kit, precision controls, and much more. The Keencut Excalibur 5000 finishing cutter is one of the best purchases your business can make to increase productivity. Check it out on MyBinding.com today and save. This product is currently only available to our customers in the United States of America. If you are located internationally, you will need to contact a local dealer to purchase this particular product.
Product Details
- Cuts all framing sheet materials easily
- Consistent perfect cuts
- Integral interchangeable tools
- One piece squaring arm
- Balanced weight to reduce user fatigue
- No dust or debris
- Robust aluminium construction to withstand long term use
- Quick payback through reduced waste and cutting time
- Safety by design
- Space saving
- Manufactured with premium quality materials
- Guaranteed for 5 years
Consistent perfect cuts every time The Excalibur 5000 cuts all materials down the same line, so there is no need to alter production stops for different materials. After a simple initial set-up, the cutter maintains permanent 90-degree accuracy. A one-piece, horizontal squaring arm ensures positioning and rigidity either side of the cut line and accuracy is assured with a clear sightline strip acting as your guide to precise alignment. Materials are then held firmly by a unique pressure-sensitive clamp, which is designed to protect delicate surfaces from damage. |
Saves time and money By reducing set-up and cutting time the Excalibur 5000 increases your productivity. All tools are permanently mounted for instant selection, allowing you to switch between cutting mount board, hardboard, glass and acrylic in seconds. All four blades cut along the same line, so you only prepare one stop setting and one measurement. Everything has been designed to save you time, reduce costly mistakes and reduce waste. |
Multiple tools The two heads house four cutting tools. The lower multi-tool head has a unique ratchet system that provides incremental cutting of thicker materials. The upper twin wheel cutter cuts 3mm (1/8″) MDF in a single pass producing a clean edge. A balance weight parks the twin wheel head at the top when not in use and cutting is achieved without noise, dust or debris. |
|||

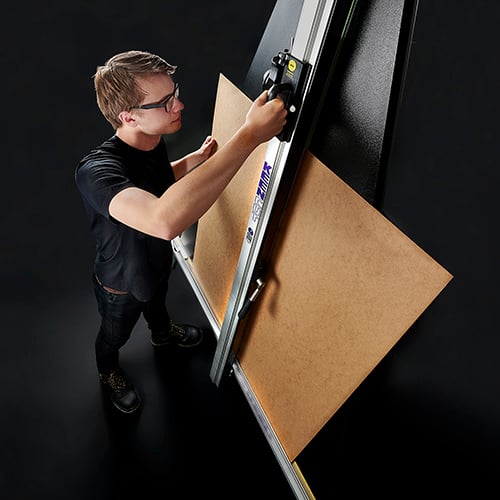

Reduces fatigue The counterbalance weight, upright profile and the low friction bearing system combine to produce an easy, smooth cut and reduce user fatigue. The integral counterbalance can be attached to either the multi-tool or twin wheel tool allowing the head to be left in place when loading and unloading materials. Telescopic legs can be adjusted to ensure the most comfortable working height for the user. |
Safety by design To ensure your safety, glass can be scored and broken on the machine. A slightly recessed left-backing panel is designed to break out glass with minimal effort and no need for additional tools. All blades are automatically disengaged when not in use and are securely mounted within the cutter head. |
Space saving To minimise the required floor space, the Excalibur 5000 comes complete with wall mounting brackets. For those with limited wall space or requiring more flexibility a free-standing kit is also available. |
|||
Five year guarantee By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Excalibur 5000 will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee. |
In the box 100 medium duty utility blades |
||||
Specifications
- Materials cut:
- Mountboard
- Conservation board
- MDF ≤ 3mm (3/32")
- Cast acrylic / Plexiglas ≤ 3mm (3/32")
- Glass ≤ 6mm (1/4")
- Foam centred board ≤ 13mm (1/2")
- Cardboard ≤ 13mm (1/2")
- PVC Foamboard (Forex)
- Corrugated plastic
- Dimensions:
- Cut Length cm ("): 160cm (63")
- A cm ("): 244cm (96")
- B cm ("): 213cm (84")
- Wall Mounted - Standard - C: 30-40cm (12-16")
- Free Standing - Optional - C: 80-90cm (32-36")
- Packed Weight : 67kg (147lbs)
- Packed Dimensions cm ("): 231x40x30cm (91x16x12")
- Manufacturer's Warranty: 5 year Comprehensive Guarantee
Replacement Blades and Accessories
| Product Name | Item Number |
| Free-standing kit for Excalibur | FSK160 |

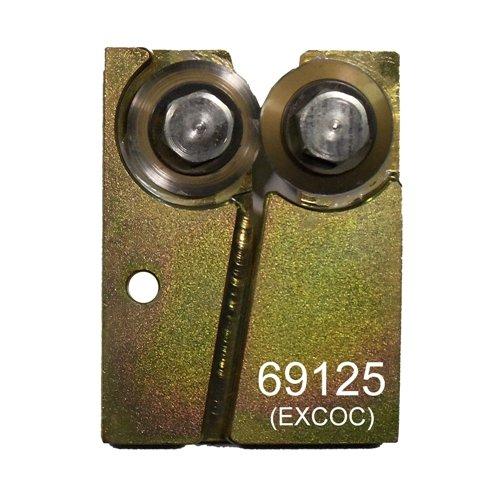

| Composite/Masonite twin wheel cutter head for Excalibur | EXCOC |

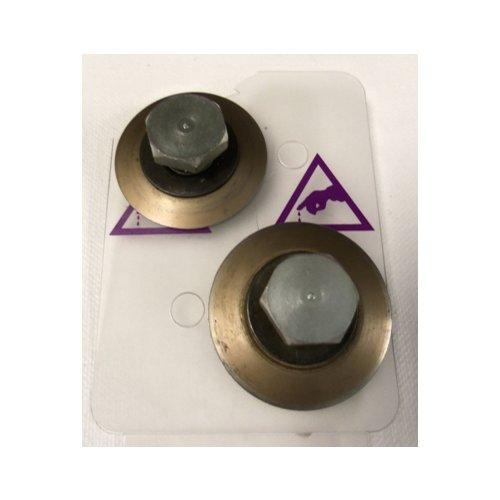

| Tungsten carbide glass cutting wheel (each) | CA50-015 |
| Medium Duty Blades (Box of 100) | CA50-019 |
| Composite/Masonite twin wheel blade set for Excalibur | EXCOW |
| Superior Quality Blades (box of 100) | CA50-010 |
