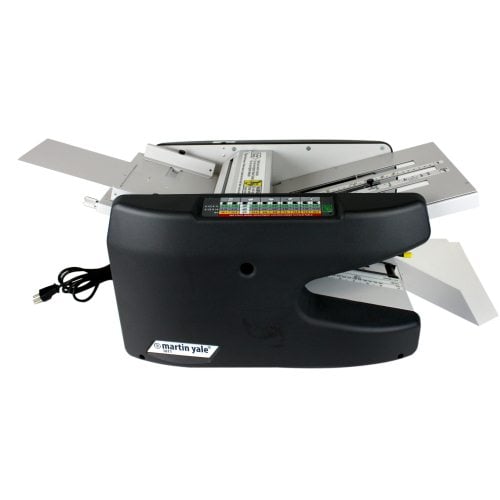

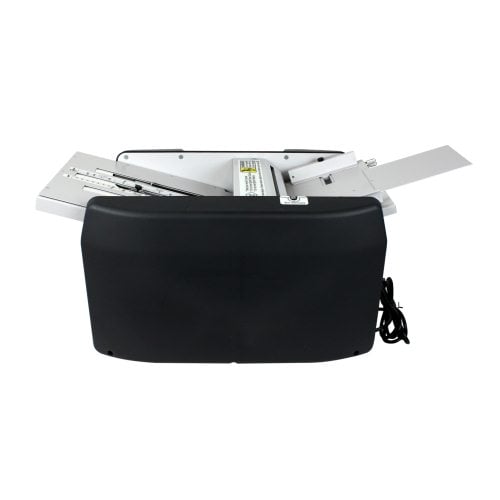

Martin Yale 1611 AutoFolder Paper Folding Machine

Name: Martin Yale 1611 AutoFolder Paper Folding Machine
Brand: Martin Yale
SKU: 1611
Rating: 4.5 (4 reviews)

Product Description

The 1611 AutoFolder automatically folds and stacks documents from 3 1/2" x 5" up to 8 1/2" X 14". This new paper folding machine from Martin Yale holds a capacity of 150 sheets and can fold up to 9,000 sheets an hour. You can fold up to 5 stapled sheets by hand-feeding the documents into the Martin Yale 1611 feed table bypass. With this new autofoler, there isn't even the need to fan the sheets and the retarder is self adjusting. The Martin Yale 1611 AutoFolder paper folding machine allows you to fold up to 5 types of folds: Letter, half, z-fold, double parallel and right-angle. All of these features make the Martin Yale 1611 the ideal machine for a small office or organization that needs to do moderate volumes of paper folding.

Product Details

It has electronic fold table adjustment.
No fanning is needed-just put the paper in and fold.
Handles and automatically feeds and folds a stack of documents, 3.5" x 5" to 8.5" x 14".
60GSM to 131GSM; 16lb to 90lb bond.
Auto jam detect and Auto shut-off.
Improved feed system, removable fold tables, easy access to rollers, improved stacking wheels and self-centering paper guides.

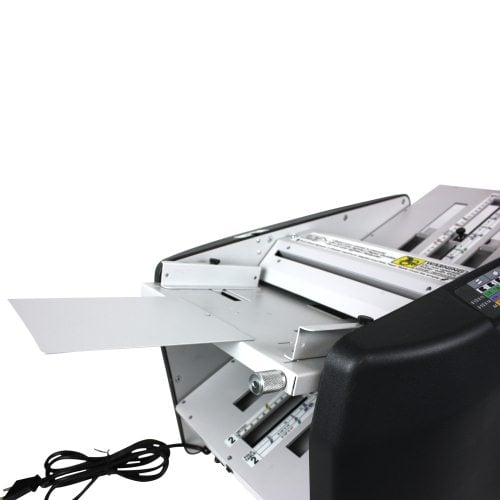

Stapled/unstapled sets of up to 5 sheets can be folded by hand-feeding documents into the feed table bypass.

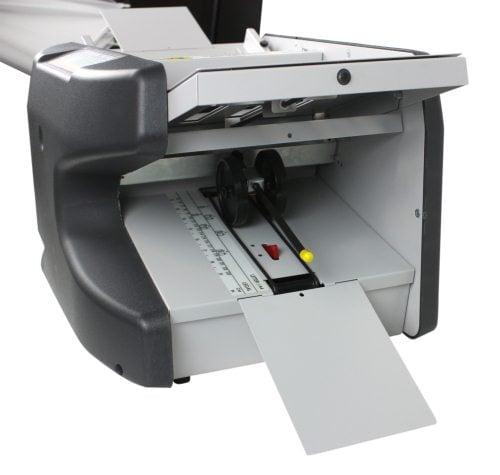

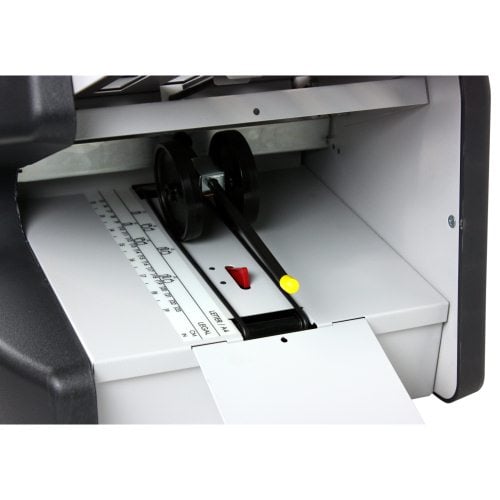

Conveyor exit table makes convenient easy to handle stacks.
High speed machine automatically feeds and folds a stack of documents up to 8.5" x 14".
Enhanced precision paper skew adjustment.
Easily fold 8.5″ x 14″ in letter fold style or other popular folding patterns
Creates six different fold types: Letter fold, Half-fold, Z-fold, Double-Parallel, Gate and Church.
Made in U.S.A

Specifications

Folding Capacity: 9,000 per hour
Electrical: 115V/60HZ , 230V/50HZ
Dimensions: 21" x 15.5" x 13.2"
Weight: 40 lbs.
Manual Paper Feed: up to 5 sheets using manual bypass
Feed Tray Capacity: up to 150 sheets
Manufacturer's Warranty: 180 Day Manufacturer's Warranty (Extended Warranties Available)

Compare to Similar Paper Folding Machines


Model	2051 SmartFold Automatic Paper Folder	1812 Variable Speed AutoFolder	1811 AutoFolder	1711 Electronic Ease-of-Use AutoFolder	1611 Ease-of-Use AutoFolder
Setup Type	Fully Automatic Setup	Manual Setup	Manual Setup	Semi Automatic Setup	Manual Setup
Speed (Shts/Hr)	3,000 to 15,000	5,000 to 12,000	5,000 to 12,000	9,000	9,000
Fold Types	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate	Ltr, Half, Z, Double, Church
Sheet Size Range	Min: 2 1/2" x 5 1/8" Max: 12" x 18"	Min: 2 1/2" x 5 1/8" Max: 12" x 18"	Min: 4" x 4" Max: 11.75" x 18"	Min: 4 3/4" x 5" Max: 8 1/2" x 14"	Min: 4 3/4" x 5" Max: 8 1/2" x 14"
Feed Table Capacity	500 Sheets of 20# Paper	500 Sheets of 20# Paper	300 Sheets of 20# Paper	150 Sheets of 20# Paper	150 Sheets of 20# Paper
Exit Conveyor	Yes	Yes	Yes	Yes	Yes
Skew Controls	Yes	Yes	Yes	Yes	Yes
Automatic Off	Yes	Yes	Yes	Yes	Yes
Variable Speed	Yes	Yes	No	No	No
Auto-Jam Detect	Yes	Yes	Yes	Yes	Yes
Size (W x D x H)	43 1/5" x 22 1/5" x 17 4/5"	43 1/5" x 22 1/5" x 17 4/5"	41" x 19 1/2" x 14"	32 1/2" x 15 1/2" x 13 1/5"	32 1/2" x 15 1/2" x 13 1/5"
Shpg. Wt	105 lbs.	105 lbs	81 lbs.	45lbs.	42 lbs.
Mfr. Warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty
Paper Weight Range	Min: 18# bond Max: 90# index	Min: 18# bond Max: 90# index	Min: 16# bond Max: 135# Index	Min: 18# bond Max: 28# bond	Min: 18# bond Max: 28# bond
Maintenance Kit Number	WRA2051SP	WRA2051SP	WRA1811SP	WRA1711SP	WRA1711SP
Maintenance Kit Contents	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner	Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner

Video

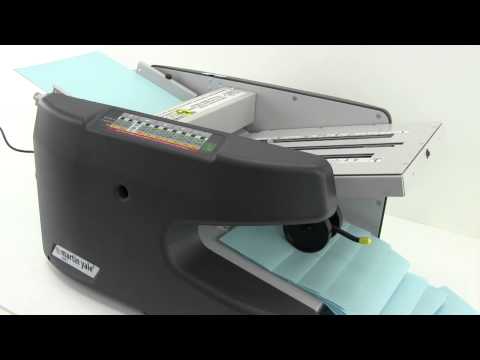

Martin Yale 1611 AutoFolder Paper Folding Demo Video

Transcript :

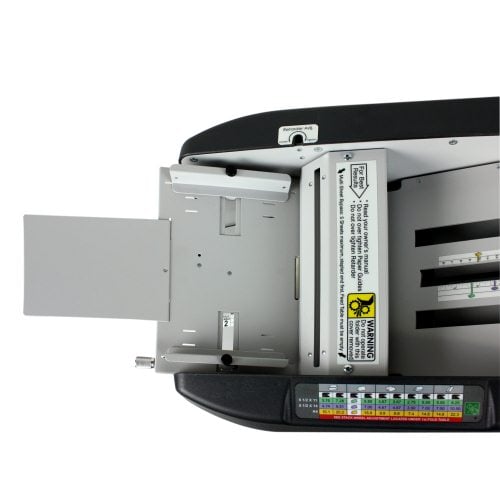

Welcome to MyBinding video. Letš™s take a look at the Martin Yale 1611 AutoFolder. This is an automatic paper folding machine. The 1611 AutoFolder automatically folds and stacks documents from 3.5 x 5 up to 8.5 x 14š.This great new machine from Martin Yale has a capacity of 150 sheets and can fold up to 9000 sheets an hour. Thatš™s fast. On the top of the machine is the feed table bypass and you can fold up to 5 stapled sheets by hand-feeding them there. The Martin Yale 1611is definitely made to make your life easier and to be shared within an office. And adjustments are incredibly easy with the table right here on the front as well as guides on both the front and the back tray for the first fold and the second fold. Simply follow the lines. The measurements are clear as day. And there it is. Thatš™s the Martin Yale 1611 AutoFolder. For more demos, reviews and how-toš™s, check out MyBinding.com.

Works great!

Only tried on a few hundred pieces so far but all works great! Charlie "TUNA"

Works great!

Only tried on a few hundred pieces so far but all works great!

Charlie "TUNA"

Very pleased

We were very pleased with the product to this point. We have used it only for a short time. Ordering was easy and staff was great working with us. Set-up was easy. Output speed is good, but a little loud. Overall, wonderful to date. We are looking forward to using the machine regularly.

Very pleased

We were very pleased with the product to this point. We have used it only for a short time. Ordering was easy and staff was great working with us. Set-up was easy. Output speed is good, but a little loud. Overall, wonderful to date. We are looking forward to using the machine regularly.

Reviews in Other Languages

Resources

Staff Review

Martin Yale 1611 AutoFolder Paper Folding Machine Review

The Martin Yale 1611 AutoFolder is a quick and efficient paper folding machine designed for the moderate needs of small to medium businesses. Whether it's a large mail room, school, or church, any place looking for ease of operation in a paper folding machine will benefit from the 1611. With automatic features and a variety of fold options, this device is both efficient and convenient. Let's take a closer look.

Strengths:

This device is mainly designed to fold letter and legal size documents. Five different folds can be produced from these two paper sizes, including a half fold, "C" fold, "Z" fold, double parallel, and French or right angle fold. Unfortunately legal size items cannot fold into a "C" fold. Even so, these folds can create a wide variety of items, including newsletters, flyers, invoices, letters, and bulletins.

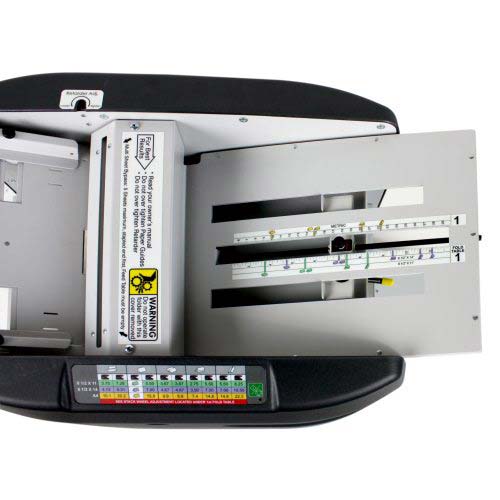

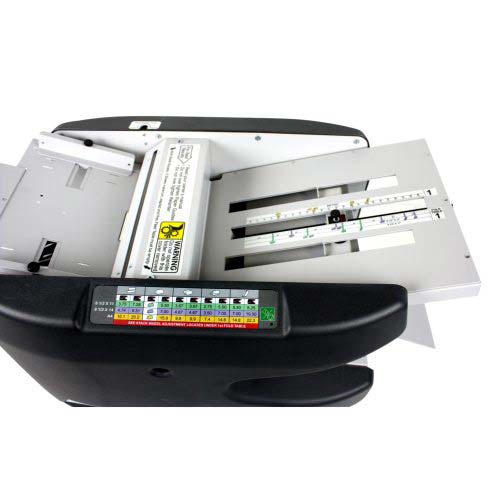

Since the plates are manually adjustable, customizable folds can be created for items as small as 3-1/2" x 5". Adjustments are easily set with the precision paper skew system to aid in the accuracy of the plates. Though this helps keep items straight, the device still requires careful attention.
The feed tray has a self-adjusting retarder which allows items to simply be inserted into the tray without needing to be fanned out as with similar folders. Up to 150 sheets can sit in the feed tray at once and are automatically fed into the device and folded. Finished items exit via conveyor belt and are collected in the high capacity stacking tray. A manual entry allows up to four loose or stapled sheets to be hand-fed into the device for combined folding.
Papers ranging from 16lb-28lb bond can be folded by this device. The motor is rated for a maximum of 9000 sheets per hour, though consistently using it at this rate will quickly wear out your machine.
An automatic jam detection shuts off when things get clogged, allowing the user to fix the problem before it gets worse.
Martin Yale offers a one year warranty against defects. However, you should know that doesn't include consumable parts, labor or shipping.

Weaknesses:

Because the plates are manually adjusted, there is a greater chance for imperfect folds. By upgrading to the Martin Yale 1701, you can avoid this and enjoy the luxury of automatically adjusted fold plates.
This machine can't fold cardstock, glossy, or coated paper. Many offices don't use these items and won't notice the limitation. If your business does need to fold a large amount of heavier mediums, we suggest investing in a device with this specific capability.
Legal size documents are the largest able to fold in this machine. Again, many businesses don't need to fold anything larger. But the ability to fold 11" x 17" is a necessity for some offices and can be found in the Martin Yale 1217A.

This would be an excellent machine for all kinds of small to medium business with moderate folding needs. The efficiency provided can save you time and money. If yours is one of those offices minimally affected by the weaknesses, then we think you'll be very happy with a Martin Yale 1611 as your next automatic paper folder.
