Product Description

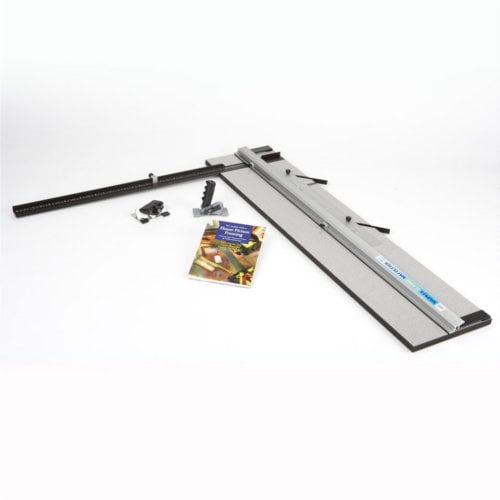

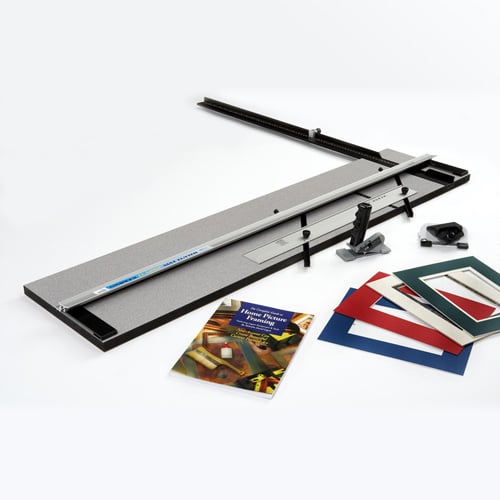

The Logan Simplex Classic is a full featured artist's level mat cutter with an economy price and is the all-purpose Logan mat cutting tool used by thousands of artists worldwide. The Simplex Classic Mat cutter is a base board mounted mat cutter with either 40" (101cm) capacity. It features a hinging guide rail with production stops, parallel mat guide in aluminum channels, 32" (81cm) squaring arm with stop, pull style bevel cutter and 701-1 Straight Cutter Elite .
Product Details
- 40" (101 cm) capacity
- Offers professional features at a economical price
- Mat cutting system with parallel mat guide in aluminum channels
- Hinged guide rail
- Pull style bevel cutting head
- #701-1 Straight Cutter
- Production stops = faster repeat mat cutting
- 32” (81cm) scaled squaring arm with stop for downsizing
- Two guide rail production stops
- 84 page fully illustrated Home Picture Framing Book
- Mid level mat cutter for medium to higher volume artists
- Includes 5 extra blades, uses blade #270
Specifications
- Usage Level: Medium
- Capacity: 40" (101cm)
- Squaring Mechanism Included: Yes 32" (81cm) Squaring Bar
- Minimum Border Using the Mat Guide: 3/4" (1.9cm)
- Maximum Border Using the Mat Guide: 5 1/2" (14cm)
- Parallel Mat Guide Included: Yes
- Production Stops:Two
- Bevel Cutting Head Style:Push Style
- Straight Cutting Device:Yes - 701-1 Straight Cutter
- Primarily Designed for Cutting: 4 Ply Standard Mat Board and 3/16" (5mm) Foam Board
- Replacement Blades: 270-10 (10pk), 270-50 (50pk), 270-100 (100pk)
Logan Mat Cutters
-
Model NameModelUser LevelCapacitySquaring Mechanism IncludedMinimum Border using the Mat GuideMaximum Border using the Mat GuideParallel Mat Guide includedProduction StopsVevel Cutting Head StyleStraight Cutting DevicePrimarily Designed for CuttingUses Bladed
-
301-1
Compact Classic
Light32" (81cm)No3/4" (1.9cm)4 1/2" (11.4cm)YesNoPush StyleYes - 500 Mat Knife4 Ply Standard Mat Board and 3/16" (5mm) Foam Board -
350-1
Compact Classic
Moderate32" (81cm)Yes (Squaring Bar)3/4" (1.9cm)4 1/2" (11.4cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board and 3/16" (5mm) Foam Board -
450-1
Artist Elite
Medium40" (101cm)Yes (Squaring Bar)3/4" (1.9cm)5 1/2" (14cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board and 3/16" (5mm) Foam Board -
550-1
Simplex Classic
Medium40" (101cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board and 3/16" (5mm) Foam Board -
560-1
Simplex Classic
Medium60" (152cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board and 3/16" (5mm) Foam Board -
650-1
Framer's Edge Elite
High40" (101cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board269, 268 -
655-1
Framer's Edge Elite
High48" (121cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board269, 268 -
660-1
Framer's Edge Elite
High60" (152cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board269, 268
-
Model NameModelUser LevelCapacitySquaring Mechanism IncludedMinimum Border using the Mat GuideMaximum Border using the Mat GuideParallel Mat Guide includedProduction StopsVevel Cutting Head StyleStraight Cutting DevicePrimarily Designed for CuttingUses Bladed
-
750-1
Simplex Elite
High40" (101cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board and 3/16" (5mm) Foam Board Sizing Glass, Plexi Acrylic, and Paper270, 271, 786, 2038 -
760-1
Simplex Elite
High60" (152cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwoPush StyleYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board and 3/16" (5mm) Foam Board Sizing Glass, Plexi Acrylic, and Paper270, 271, 786, 2038 -
850
Platinum Edge Elite
High40" (101cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)5 1/2" (14cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board267 -
855
Platinum Edge Elite
High48" (121cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)8" (20.3cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board267 -
860
Platinum Edge Elite
High60" (152cm)Yes 32" (81cm) Squaring Bar3/4" (1.9cm)8" (20.3cm)YesTwo (Movable)Push Style Dual Purpose Bevel and Straight CutterYes - 701-1 Straight Cutter4 Ply Standard Mat Board, 8 Ply Mat Board, 3/8" (10mm) Foam Board267
