Product Description

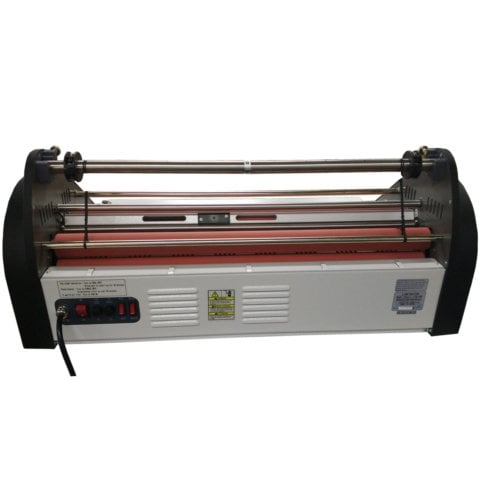

The Phoenix 27" Professional Dual Heat Production Roll Laminator is an economical easy-to-use roll laminator that is perfect for production environments. Designed to offer maximum flexibility, this laminator allows the use of either 1" or 2-1/4" core laminating films in thicknesses of 1.5 mil to 10.0 mil. The Phoenix 27" Production Model can also be gapped incrementally at settings of 1/16", 1/8", 3/16" and 1/4" to accomplish mounting on a large variety of substrates. This roll laminator can laminate documents up to 27" wide. The Phoenix 27" Production Model includes the latest in safety innovations and energy saving technology. Safety measures include: an advanced safety shield, a safety feed table, as well as a standby mode. To conserve energy, the machine will drop into a sleep mode (175°) if unit has been idle for 1/2 hour. If there is no activity on the unit for 2 hours, the heaters turn off. This Phoenix 27" Professional Dual Heat Production Roll Laminator is backed by a 1-year manufacturer's warranty.
Product Details
- Laminates up to 27” wide.
- Accepts 1.5 to 10.0 mil.
- Cooling fans for heavier films.
- Clear polycarbonate safety shield.
- Reverse feature.
- Silicone heated laminating rollers.
- Feed tray with paper guide.
- Adjustable supply roll tension.
- Roller can gap from 1/16” to 1/4” for mounting.
- Auto shut-off with 175° hold temperature.
- Chain and sprocket drive.
- Heavy-duty 24V DC motor.
- Easy alignment of top and bottom rolls with standard widths marked on supply shaft.
Specifications
- Film Width Capacity: 27"
- Speed: 0 - 10 feet per minute
- Warm-up Time: 20 minutes
- Film Supply Core Size: 1" & 2-1/4"
- Compatible Supplies: 1" or 2.25" Core Thermal Roll Film - 1.5-10mil Thick & Up to 27" Wide
Mounting Board - Up to 1/4" Thick, Stand for Phoenix 2700 Series Laminators - Actual Machine Dimensions: 37" x 16" x 18"
- Actual Machine Weight: 135
- Shipping Length: 43
- Shipping Width: 22
- Shipping Height: 21
- Shipping (Web) Weight: 160
- Heater Wattage: 1600 watts
- Power Requirements: 13.3 amps, 120VAC, 60Hz
- Manufacturer's Warranty: 1 year from manufacturer's warranty
