Product Description

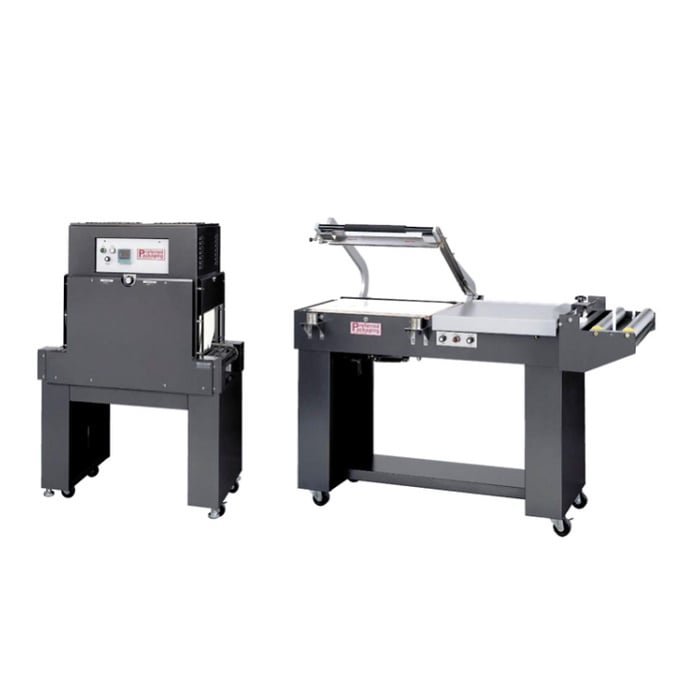

For increased packaging efficiency, this bundle coupled the semi automatic P1622Wire L-Bar Sealer and a shrink tunnel. This system creates a smooth and seamless workflow for unmatched productivity. The PP1622Wire L-Bar Sealer is a semi-automatic sealer that features a cylinder arm return and a magnetic clamping hold down that assists to keep products in place during the sealing process. Adding to packing efficiency and sorting is the powered takeaway conveyor that moves products from the sealing area to the exit. The sealer takes advantage of the Teflon coated Micro Knife Seal System which offers a stronger and more durable sealing blade that can deliver tens of thousands of seals. The shrink tunnel is designed to deliver outstanding results with the lowest electricity consumption. Heat-shrinking operation is adjusted by setting the tunnel temperature and speed and can work with all types of heat-shrinking films.
Product Details
Standard L' Sealer Features:
- "Micro-Knife" Band Ribbon.
- Power Belted Discharge Conveyor.
- Dual Manet Clamping.
- Pin Perf. Hole Punch.
- Variable Dwell/Seal Time.
- Variable Conveyor Time.
- Stainless Steel Compensators.
- Seal Size is 16"W x 22"L.
- Seal Head Return Cylinder.
- Stainless Steel Film Clamps.
- Locking Casters.
- Linear Bearings Allow Movement Forward or Backward.
- Easy Load Film Cradle with Brake.
Standard Shrink Tunnel Features:
- Fully Re-Circulating Air Chamber.
- Live or Dead Roller Rod Conveyor.
- Digital Temperature Control.
- Adjustable Air Velocity Control.
- State-of-the-art AC Variable Speed Drive.
- Chromed Conveyor Rollers and Shafts (No Rust).
- Automatic Tunnel Cool Down with Shut Off.
- Sealed Bearings on Drive and Idler Shafts.
- Chamber Size 18"W x 8"H x 28"L.
- Quietest Tunnel on the Market.
- Heats Up to 300 Degree F in Less than 10 minutes.
- Thermal Overload Protection on All Motors.
- Locking Casters with Leveling Screws.
- Anti-jam Safety Feature on Conveyor.
- Easily Adjustable Crank Handle Allows for Tunnel Height Adjustment.
Specifications
- Dimensions (L x W x H): 103" x 32" x 62"
- Seal Size: 16"W x 22"L
- Tunnel Opening (L x W x H): 28" x 18" x 8"
- Max Film Width: 20"
- Product Speed: 10-20 PPM
- Power: 220V 45A 1 Phase
