Product Description

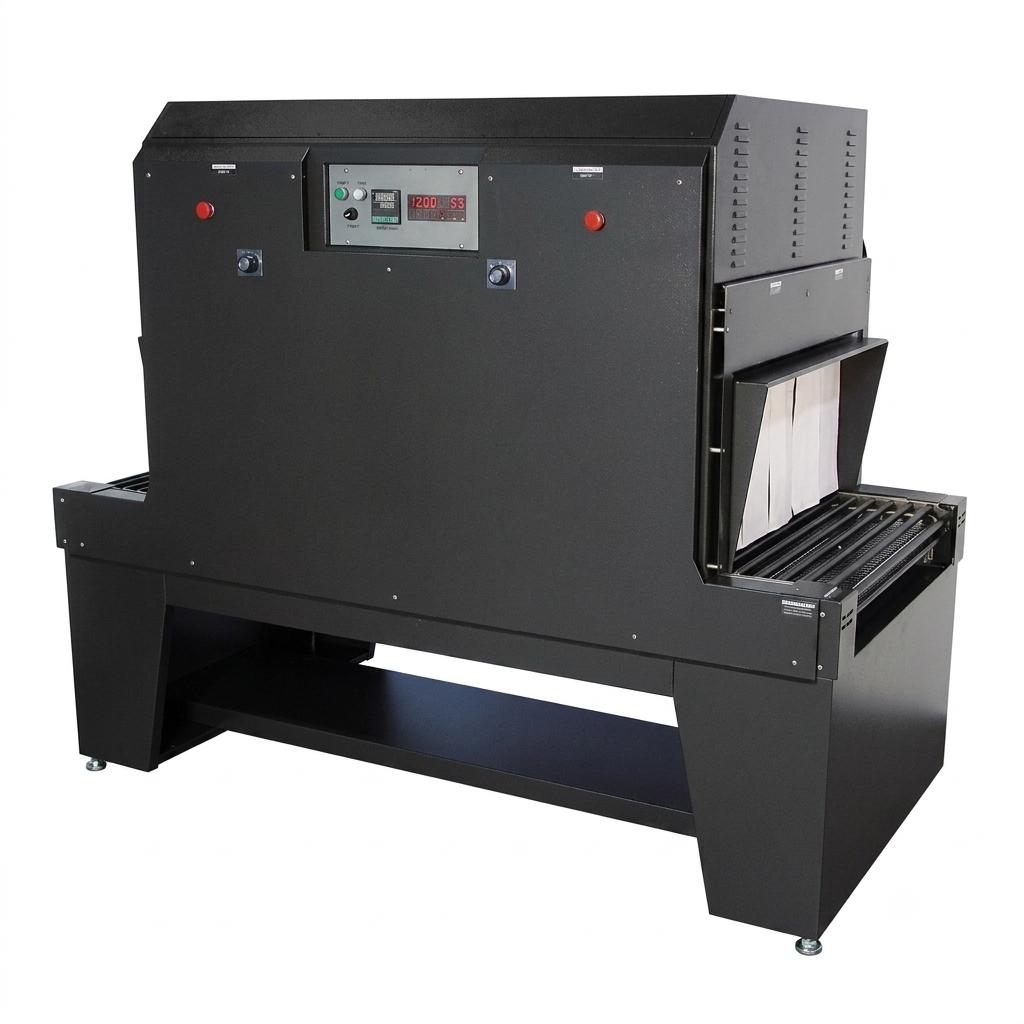

The PP3612-60 Shrink Tunnel is a versatile, high-capacity shrink tunnel designed for a wide range of packaging applications. It works with shrink bands, neck bands, full-body sleeves, and shrink films, and can also be used for drying and curing processes. Built for demanding production environments, it features a 60-inch long chamber, dual recirculating air chambers, dual 1 HP blower motors, dual heater banks, and adjustable airflow controls for consistent shrink results. Additional features include digital temperature control, a heavy-duty live roller conveyor, variable conveyor speeds from 0–100 FPM, and an automatic cool-down system with shut-off for safe and efficient operation.
Product Details
- Fully recirculating air chamber
- Live roller conveyor system
- Digital temperature control (0°–400°F)
- Adjustable airflow and conveyor speed
- Rust-resistant chrome rollers
- Automatic cool-down with shut-off
- Powerful 1 HP blower motor
- Sealed, low-maintenance bearings
- Large 36" × 12" × 60" chamber
- Quiet operation
- Heats to 300°F in under 15 minutes
- Thermal overload protection
- Locking casters and leveling feet
- Anti-jam conveyor safety
- 15 kW heating system
- 2-year warranty
Specifications
- Model: PP3612-60
- Machine Type: Shrink Tunnel
- Chamber Size (L x W x H): 60" x 36" x 12"
- Power: 220 Volts – 50 Amps – 3 Phase
- Shipping Weight: 1400 lbs
- Machine Dimensions (L x W x H): 64" x 76" x 34"
