Product Description

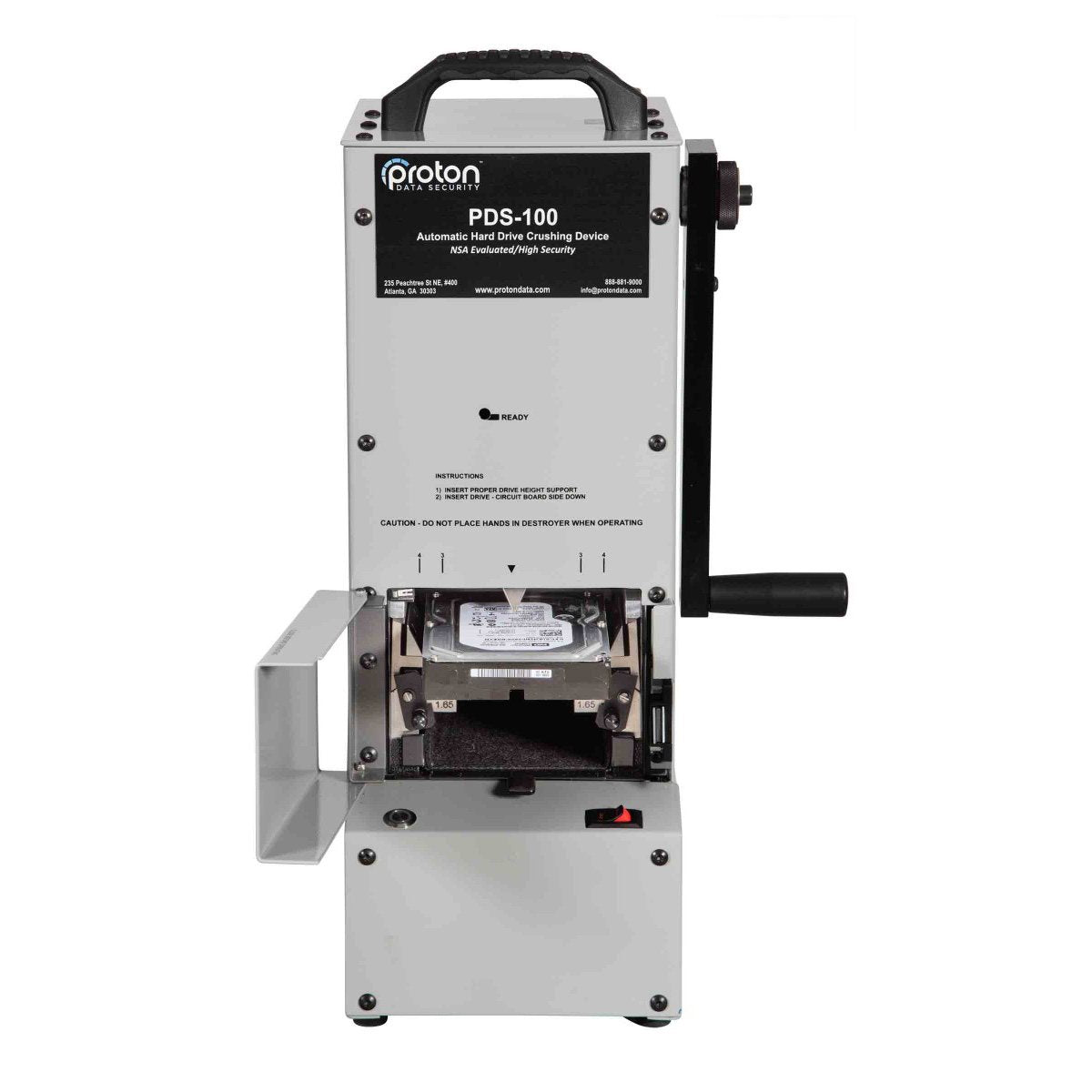

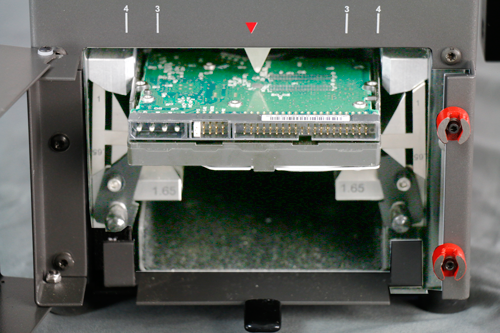

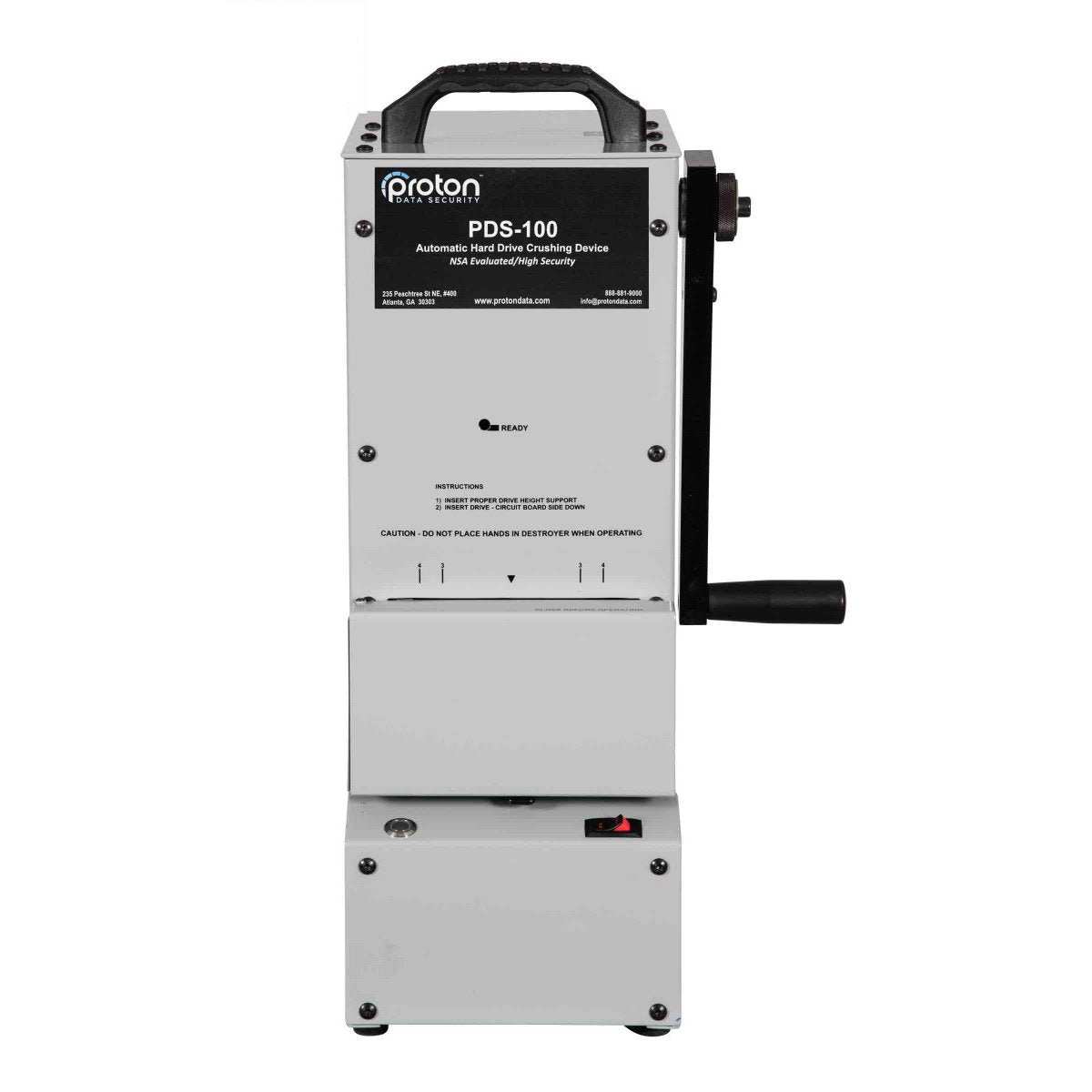

The PDS-100 takes physical hard drive destruction one step further than the PDS-75 by providing an automatic, motor driven operation. Simply insert the hard drive and sensors will automatically start an eight (8) second cycle. A unique feature of the PDS-100 is its ability to operate manually if power is ever interrupted or unavailable. Simply grab the crank handle to continue securely destroying hard drives. No stoppage or setup necessary.
Product Details
- Weight: 60 lbs (27.2 kg)
- Dimensions: 11.625" (29.5 cm) D x 7.25" (18.4 cm) W x 21" (53.3 cm) H (11" or 28 cm wide with handle)
- Media Destroyed:
Handles all 3.5-inch Form Factor Drives including .65-inch, 1-inch and 1.65-inch high drives.
Handles 2.5-inch Laptop hard drives with Laptop Holder option.
Handles SSD (Not NSA evaluated for SSD) drives in 3.5 Form Factor and 2.5 Form Factor with the Laptop Holder option - Power Supply: 115 VAC, 60 Hz; 220 VAC, 60 Hz, 230 VAC, 50 Hz (specify voltage and frequency when ordering)
- Destruction Method: Bends/ breaks platters, damages heads, motor and circuit board
- Cycle Time:
60 HZ units: 10 seconds or less
50 HZ units: 12 seconds or less (dependent on operator)

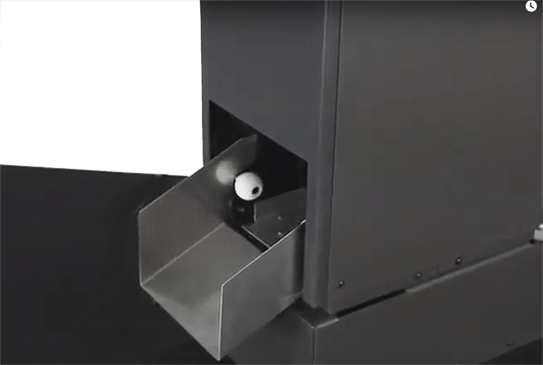

Hand Crank: 8 seconds or less (dependent on operator) - Maintenance: Occasional vacuuming of debris drawer and internal housing
- Options: Laptop; Rear Output Option; Rackmountable Slide-out Shelf Option (for 19” EIA racks, 19” to 28” deep)(Includes Slides); Remote Control Communication; Universal Screw Down Mounting Kit; Deployment Case with wheels
- Manual Operator Exertion:
Typical Commercial Drives (3.5”) – Typ. 4 lbs. exertion
Hardened (Heavy Shielded) (3.5”) – Typ. 12 lbs. exertion
Specifications
- Compact and rugged design is portable and easily deployable.
- Automatic cycle provides fast, safe and reliable hard drive destruction in 10 seconds or less.
- Can operate with or without power (manually for emergency situations).

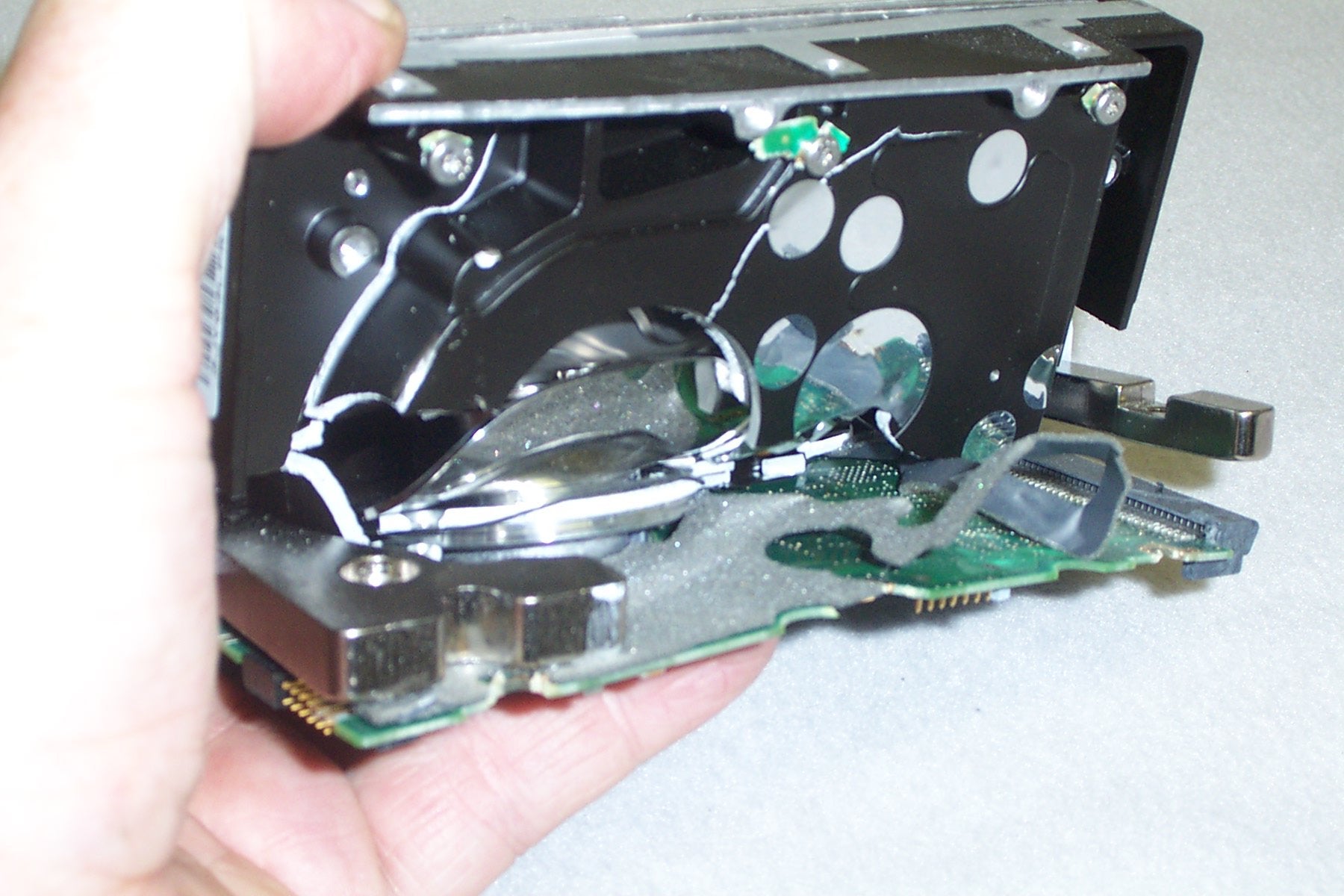

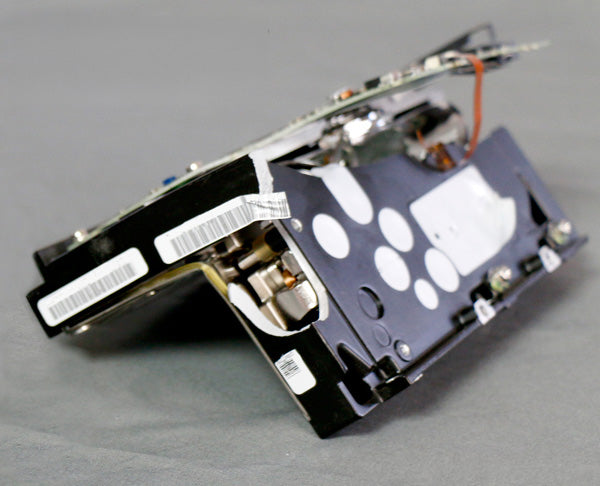

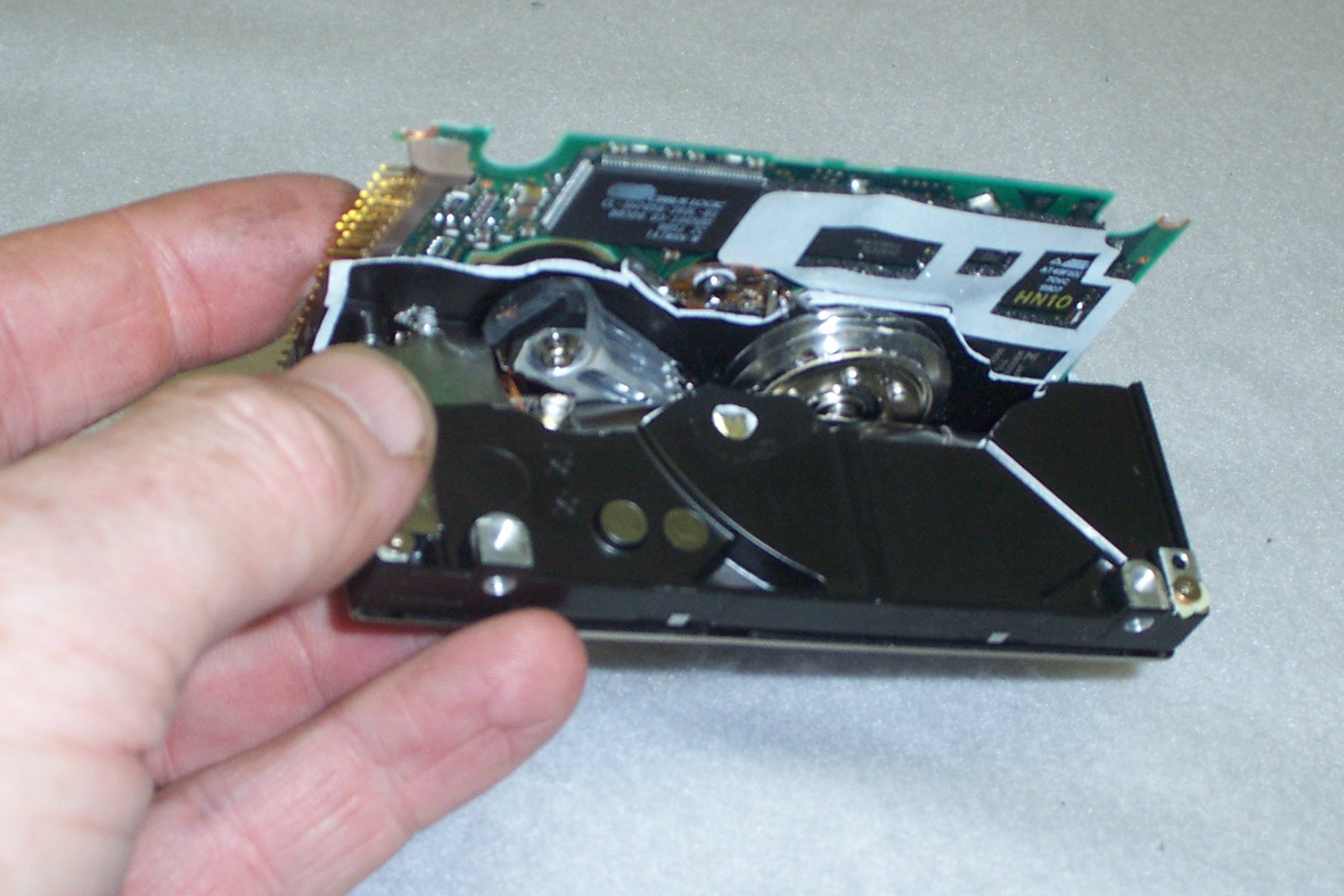

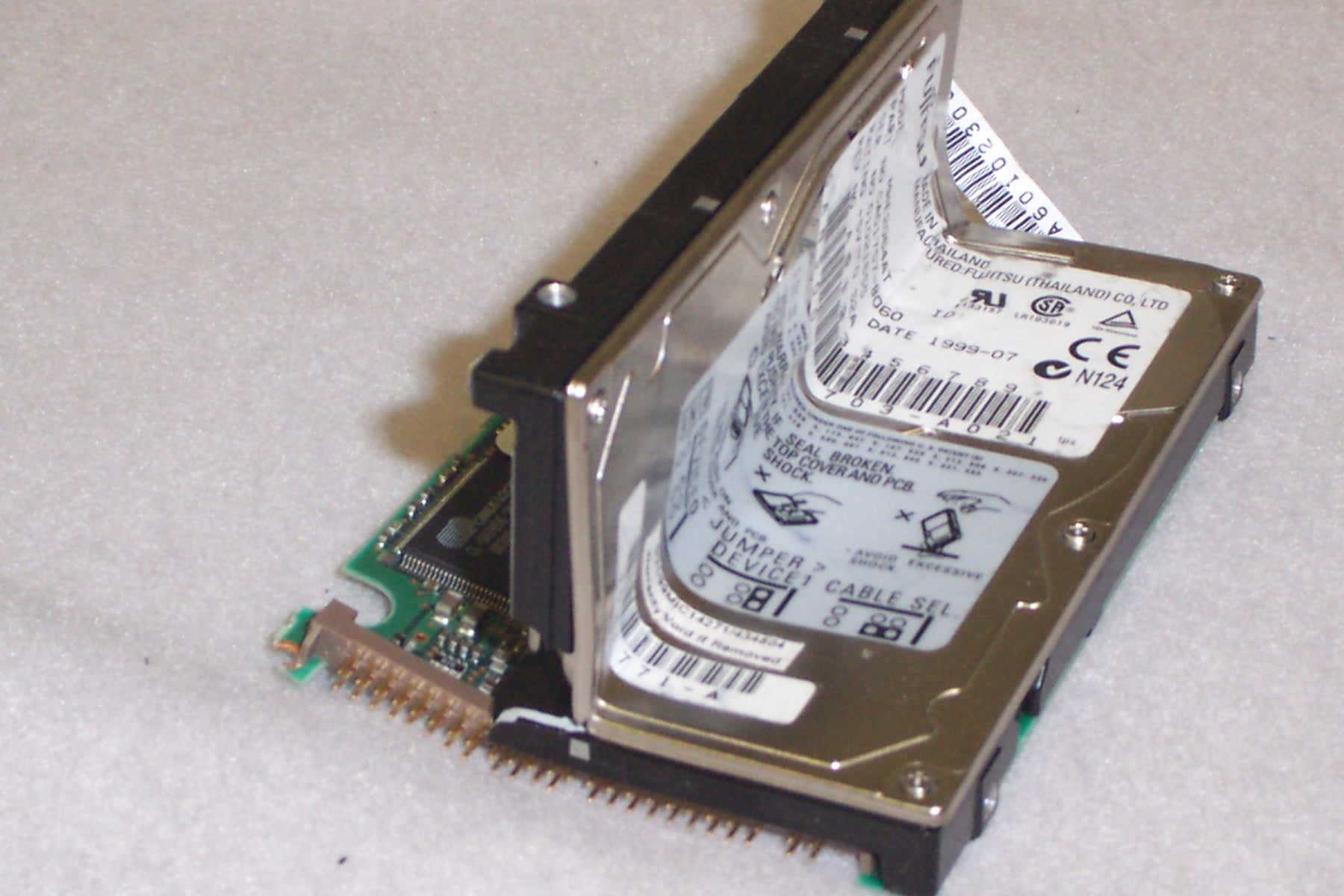

- Hard drives are bent approximately 90 degrees, which bends/breaks the platters and damges the heads, motor and circuit board.
- Maintenance free and completely self-contained. No messy fuilds or external components to deal with and no adjustments or calibration necessary.
- Tested and used by NSA and DoD for destroying hard drives.
- Customization is easy with additional options.
Video

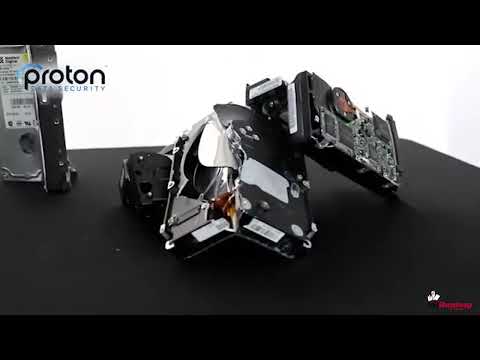

Proton DS-100 Hard Drive Crusher Demo
Transcript :
