Product Description

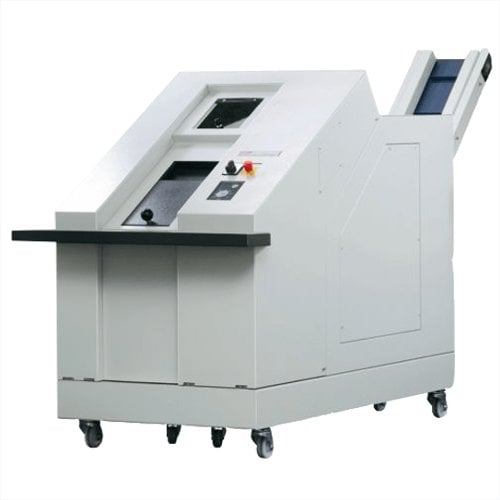

The Proton PDS 105 Multimedia Shredder is equipped to destroy hard drives, solid state drives, CDs, DVDs, flash media sticks and magnetic tape. It is an industrial shredder equipped to handle continuous shredding of mixed media. With easy to use controls and enclosed cutting heads, this shredder is safe and efficient for the workplace. The Proton 105 Multimedia Shredder allows compliance with NIST, HIPAA, FACTA, & PCI. The optional conveyor belt attached to the back of the unit takes the shredded e-waste conveniently to a receptacle for disposal or recycling. Secure your business with Proton PDS 105 HD/SSD Multimedia Shredder.
Product Details
- Destroys hard drives, solid state drives, credit/store cards, CDs/DVDs, floppy disks, USB sticks and magnetic tapes.
- Continuous operation with optional conveyor belt.
- Automatic stop and reverse to clear jams.
- Multi-function control panel for operation status and usability.

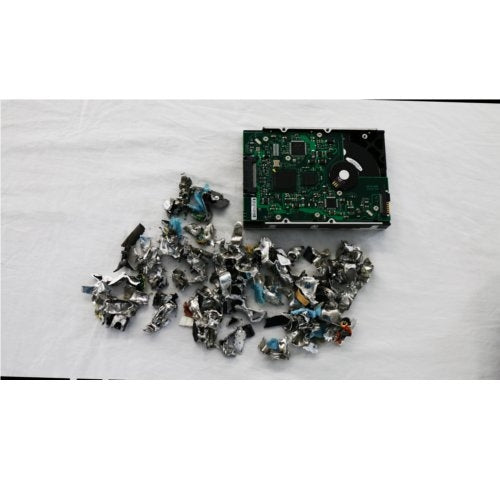

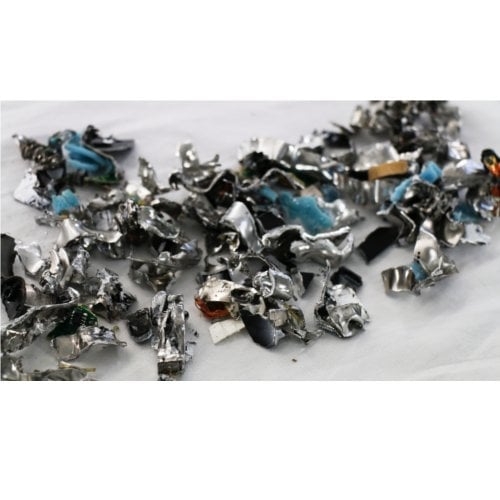

- Shreds to .39" (.99 cm) particle size.
- Options:
- Conveyor Belt for automatic e-waste disposal.
- Other cut sizes and electrical requirements available.
Specifications
- Shred Capabilities: Hard drives, solid state drives, USB sticks, Credit Cards, CDs/DVDs, Floppy Disks, USB Sticks and Magnetic Tapes up to 3.5"
- Shred Size: Cross Cut: 0.39" x 1" - 1.18" max (Other cut sizes available upon request)
- Throughput per hour: 2,500 items
- Weight: 2,777 lbs
- dB rating:65-78
- Motor Power (Horsepower):4 + 4 + 1.34 hp
- Voltage / Frequency:3 x 208V / 60Hz (Other electrical requirements available upon request)

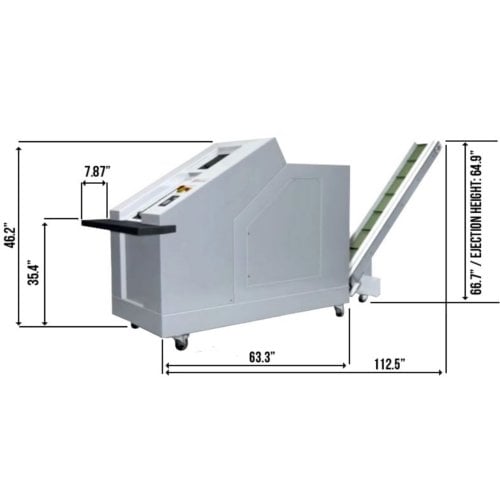

- Dimensions (H x W x D):67" x 41" x 121"
- Throat Size:10"
- Spiral / Binding101 Part Number: 04PDSPROTON105
Compare to Proton Media Shredders
| Model Name | Proton PDS-88 | Proton PDS 105 | Proton 104 |
|---|---|---|---|
| Model |  |
 |
 |
| Particle Size | 0.15"W x 0.598"L (3.8 mm x 15.2 mm) | Cross Cut: 0.39" x 1" - 1.18" max (Other cut sizes available upon request) | 104.14cm |
| Feed Opening | 7 in (17.78 cm) | Lower level feed slot: 9”L x 6”W x 1.5”H Upper level feed chute: 8.5”L x 8”W |
11.5"D x 2.4"H x 6.5"W (27.94cm x 6.09cm x 16.51cm) |
| Cutting Capacity/Hour | 75-80 SSDs (approximately) 500 USB sticks/drives 100 Cell Phones 1500 CD/DVDs |
2,500+ items per hour dependent upon hard drive size, thickness, and proper power supply | 20 Amp: Up to 750 hard drives/hr 30 Amp: Up to 1250 hard drive/hr (dependent on hard drive size, thickness, and proper power supply) |
| Motor | 2.6 HP | 8 HP (optional conveyor 1.75 HP) | 2 Horsepower (HP) |
| Power | 120 V/60 Hz/20 Amps or 220 V/50 Hz | 3 x 208V / 60Hz (Other electrical requirements available upon request) | 120V/Dedicated 20 Amp Option: 120V/Dedicated 30 Amp |
| Collection Volume | 14 Gallons (53 Liters) | ||
| Dimensions | 37.5" H x 22.6" W x 24"D (95.25 cm x 57.40 cm x 60.96 cm) | 46"H x 41"W x 72"D (104.14cm x 116.84 x 182.88cm) | 43.5"H x 46.8"W x 31.3"D (79.5cm x 118.87cm x 110.49cm) |
| Warranty | 1-Year Manufacturer's Warranty | 2-years parts, 90 days labor. | 2-years parts, 90 days labor. |
