Name: Refurbished Akiles CoilMac EPI Heavy Duty Electric Coil Punch & Inserter
Brand: Akiles
SKU: R4AEPI41ELEC

Product Description

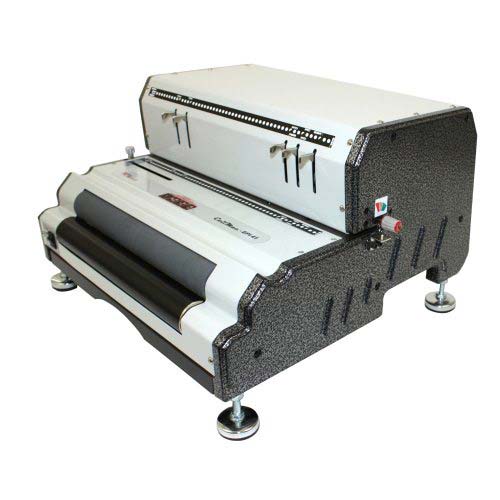

With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI Coil Binding Machine makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads. The Akiles CoilMac EPI Heavy Duty Electric Coil Binding Machine with Electric Coil Inserter is one of the best electric coil binding machines on the market. The CoilMac EPI includes a heavy duty electric binding punch and a high quality electric coil inserter. The CoilMac EPI can punch up to 20 sheets per lift and includes a foot pedal control for easier punching and inserting. The Akiles CoilMac EPI truly is the ultimate in Combination Coil Binding Machines.

Product Details

Heavy-duty electric punch for up to 20 sheets

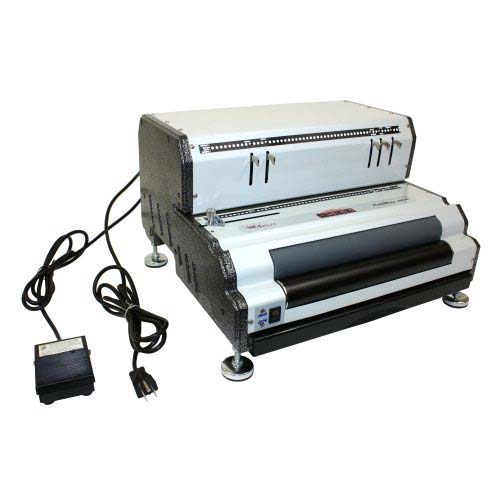

Electric coil inserter with foot pedal operation for hands-free binding

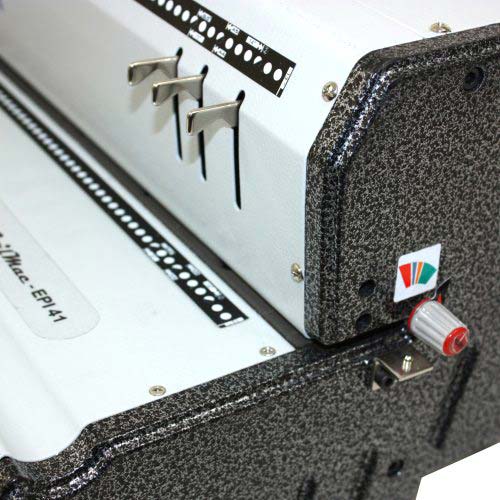

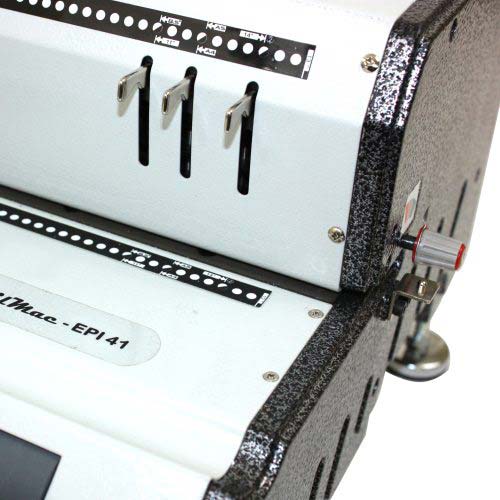

5 disengageable dies for clean punches on different sizes
U-channel spine shaper makes large books easier to bind

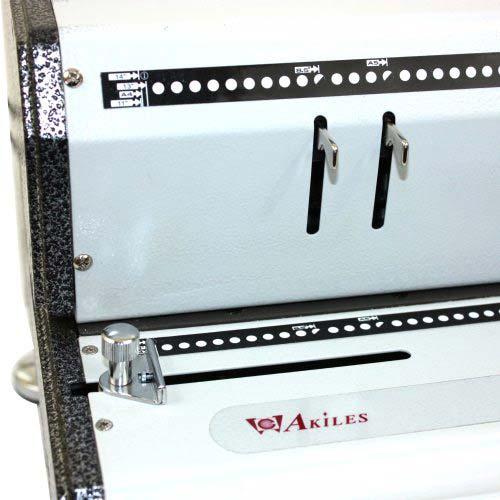

Adjustable punch depth margin for better durability on thicker books
Open throat design + continuous punch guide for extra long sheets

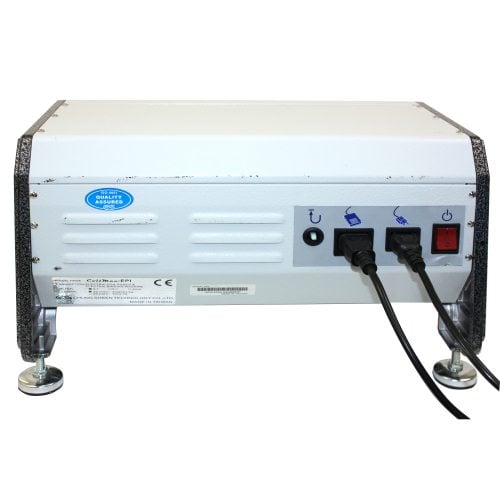

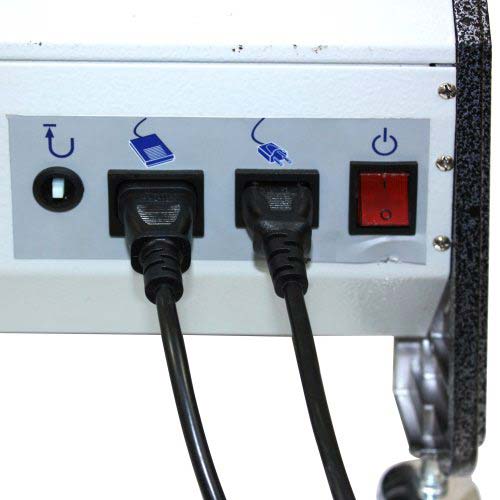

Manual reverse switch for easy jam clearing
Durable all-metal construction for years of daily use

Specifications

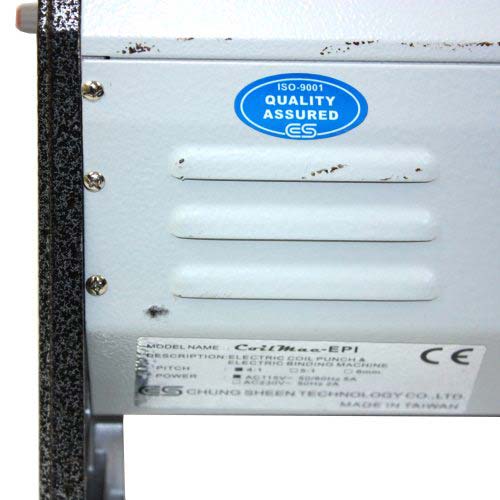

Model: CoilMac-EPI41
Pitch: 4:1
Punching & Inserting: Electric
Punch Length: 13" (53 dies)
Hole Punch: Round (4mm radius)
Disengaging Dies: 5
Single Punching Capacity: Up to 20 sheets (20 lbs paper)
Binding Capacity: Up to 7/8"
Weight & Volume: 75 lbs & 2.82 CbFt
Actual Machine Dimensions (L x W x H): 18" x 16-1/4" x 11"
Shipping Length:23.5"
Shipping Width:21"
Shipping Height:16"
Shipping Weight:75.1Lbs.
Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
Compatible Supplies: 4:1 Pitch Spiral Coils

Compare to Similar Coil Binding Machines

Model Name	CoilMac-EX Pro 4:1	CoilMac-EX 4:1	CoilMac-EX Plus 4:1	CoilMac EPI	CoilMac EPI+
Model
Pitch	4:1	4:1	4:1	4:1	4:1
Punching Length	13.5"	13.5"	13.5"	13" (53 holes)	13" (54 holes)
Inserting	Electric (On/Off Switch)	Electric	Electric	Electric	Electric
Hole Punch	Oval (4mm x 5mm)	Round (4mm)	Oval (4mm x 5mm)	Round (4mm radius)	Oval (4mm x 5mm)
Disengaging Dies	All 54	Full	Full	5	Full
Single Punching Capacity	Up to 25 sheets (20 lbs paper)	Up to 25 sheets for 20 lbs paper	Up to 25 sheets for 20 lbs paper	Up to 25 sheets for 20 lbs paper	Up to 25 sheets for 20 lbs paper
Binding Capacity	Up to 2" (50mm)	Up to 7/8"	Up to 7/8"	Up to 7/8"	Up to 7/8"
Weight / Volume	55 lbs	50 lbs.	50 lbs.	75 lbs & 2.82 CbFt	75 lbs & 2.9 CbFt

Resources

Staff Review

Akiles Coilmac EPI Binding Machine Review

A desktop unit that can still produce at high volume, the Akiles Coilmac EPI is an all-electric coil binding system designed for medium to large sized organizations that do a fair amount of binding. Here is a brief overview of this machine's strengths and weaknesses.

Strengths:

The punching capacity of the Coilmac EPI is easily one of the largest that is available on the market. Officially stated at twenty five sheets of twenty pound paper, we found that it really worked best at around twenty two. Still, that's a lot of sheets, and it will get you quickly through even the largest projects. This machine can also punch two clear covers at one time.

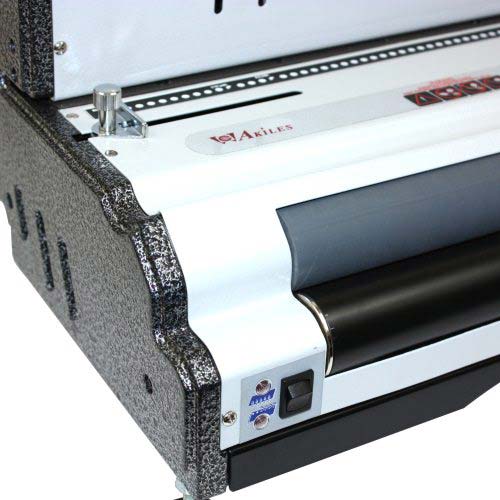

The foot pedal control of the Coilmac EPI is a great feature that makes it possible for you to hold onto your documents with both hands while you are doing your punching. We found that this was really handy for increasing the punch quality when working with sheet numbers at or near the top of the machine's capabilities. Plus you can operate the coil inserter using your foot pedal by simply flipping the switch located on the front of the machine.
The Coilmac EPI features an open throat design which allows the user to punch documents that are longer than the number of pins available. The continuous punching guide enables you to align the stack, flip it over, and punch the rest of the holes. We found the whole thing to be a fairly easy process even though we didn't think we would have to do it very often. The standard 13 inch width of the machine should be more than adequate to get you through the vast majority of jobs.
Another couple features that we really appreciated about the Coilmac EPI were the depth of margin punch control which allows you to set the correct punch from the edge of the document (increasing the usability and durability of larger documents), and the open throat design that lets you bind letter, legal, as well as A4 and A5 sized sheets with ease.
The Coilmac EPI appears to us to be extraordinarily well built, and we see no reason why it wouldn't last the user for a good many years of daily use.

Weaknesses:

For all its benefits, the Coilmac EPI does not include fully disengageable dies. Although for the vast majority of jobs this won't matter in the least, it is a nice feature to have when you are going to be producing documents that are custom sized. For this feature you will need to step up to the CoilMac EPI+
We would have liked to see this system come with separate foot pedals for inserting and punching. It is currently designed so that the user must flip a switch to toggle between functions. It can get a little tedious if you are punching and binding one document at a time. You would be better off doing all your punching first, then all your inserting.
For larger volume projects, you may want to purchase a standalone inserter so that one person can work on punching while another works on inserting and crimping.
