Product Description

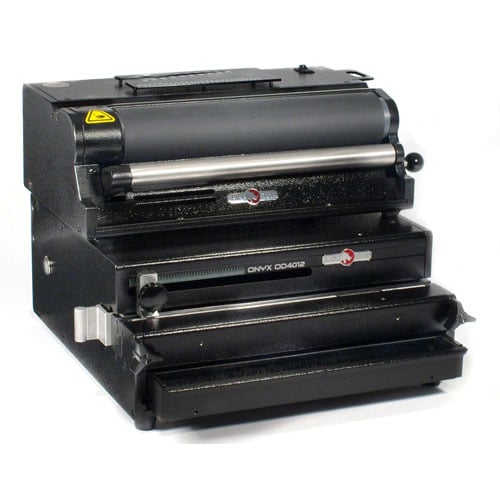

To Get the Full Package, Order All of the Items Above This is the Rhin-O-Tuff 4012C4 Medium duty electric coil binding system. Everything you need to create a professional coil binding is in this system including FREE Crimping Pliers, with the exception of your coil and covers, which can be purchased separately for easy customization. The 4012C4 has an incredible punching power capacity of up to 30 sheets of 20 lb paper can be punched at one time with perfect and align holes. Manual and auto-reversing structures eliminating the word "jam" out of this system. MyBinding part number 4012C4.
Product Details
- Model: 4012C4
- Coil Die: 74141A 4:1 Round .250 hole spacing - .172 hole diameter
- Coil Inserter: 4170 ONYX heavy duty dual powered adjustable rollers.
- Crimping Pliers: Included.
- Punch Capacity Up to 30 Sheets of 20 lb paper
- Punch Length: 11" Punching Length with Open Ended Extra Capacity Die
- Fully Disengageable Pins:Yes
- System Weight: 80 lbs
- System Dimensions: 15" x 21 3/4" x 19 3/4" (H x W x D)
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)
- Compatible Supplies: 4:1 Pitch Spiral Coils
- Compatible Equipment: Die Sets For Rhin-O-Tuff OD4012
Specifications
- Coil Die with easy disengageable pins - Included
- Electric Coil Inserter and Crimpers - Included
- Attachment kit for mounting Coil Inserter on top of punch - Included
- Automatic and Manual Reverse feature to reduce jamming in the punch
- Punches up to 30 sheets of 20 lb paper
- Rate of 25 cycles per minute
- Auto and manual reverse clears most punching jams
- Accu-Set adjustments on odd size paper
- Efficient work environment with a standard foot pedal and optional versa switch
- Extreme high capacity Waste Chip Tray with Clear View Access
- Heavyweight metal construction
- Made in the USA with more than 98% recyclable materials
