Product Description

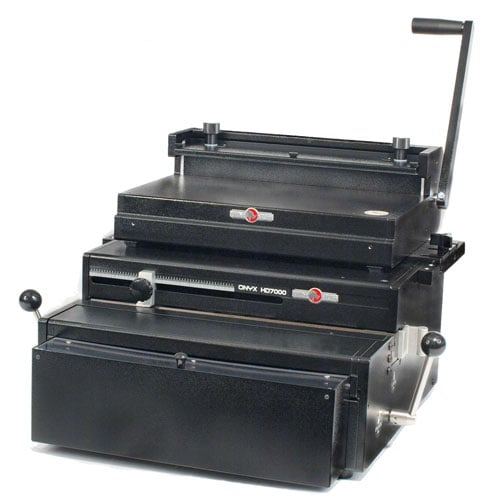

To Get the Full Package, Order All of the Items Above This is the Rhin-O-Tuff 7000W3. It is Rhin-O-Tuff's ultra duty electric 3:1 wire binding system. Rhin-O-Tuff's ultra duty 7000W3 consists of the HD7000 modular binding punch, a 3:1 square hole die (.333 hole spacing - .156 square hole size), a 14" manual flat bar wire inserter and closer, and a modular mounting kit. Everything you need to produce 3:1 wire binding is included in this system except for your wire and covers, those you can purchase separately for easy customization. A great design feature of the ultra duty 7000W3 is its future ability to be easily adapted and upgraded. MyBinding part number 7000W3.
Product Details
- Model: HD7000 ONYX
- Wire Die: 000907 3:1 Square .333 hole spacing - .156 square hole size
- Wire Inserter : 8000 14" manual flat bar wire inserter / closer.
- Punch Capacity Up to 40 Sheets of 20 lb paper
- Punch Length: 11" Punching Length with 14" Open Ended Extra Capacity Die
- Fully Disengageable Pins:Yes
- System Weight: 135 lbs
- Total System Dimensions: 13 1/2" x 17" x 16 3/4" (H x W x D)
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)
- Compatible Supplies: 3:1 Pitch Twin Loop Wire
Specifications
- 3:1 Wire Die with easy disengageable pins - Included
- 14" manual flat bar wire inserter - Included
- Attachment kit for mounting wire inserter on top of punch - Included
- Automatic and Manual Reverse feature to reduce jamming in the punch
- Punches up to 40 Sheets of 20 lb paper
- Rate of 25 cycles per minute
- Auto and manual reverse clears most punching jams
- Quick Change Die System with easy disengageable pins
- Accu-Set adjustments on odd size paper
- Efficient work environment with a standard foot pedal and optional versa switch
- Extreme high capacity Waste Chip Tray with Clear View Access
- Heavyweight metal construction
- Made in the USA with more than 98% recyclable materials
