Product Description

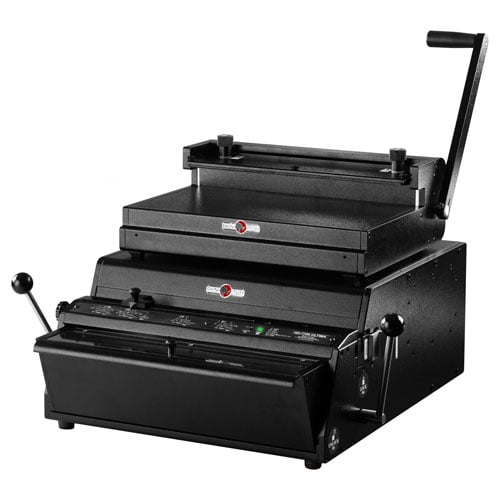

To Get the Full Package, Order All of the Items Above This is the Rhin-O-Tuff 7700W2, it is Rhin-O-Tuff's mega duty top of the line 2:1 wire binding system. Everything you need to produce 2:1 wire binding is included in this system except for your wire and covers, those you can purchase separately for easy customization. The mega duty 7700W2 consists of the HD7700 ultima modular binding punch, a 2:1 square hole die (.500 hole spacing - .250 square hole size), a 14" maunal flat bar wire inserter and closer, and a modular mounting kit. Rhin-O-Tuff's 7700W2 mega duty electric 2:1 wire binding system is ideal for any project, large or small, in a high volume commercial and/ or corporate use setting. Rhin-O-Tuff has thought of the future and designed of the 7700W2 is easily adaptable and upgradeable if the need arises. MyBinding part number 7700W2.
Product Details
- Punch Model: HD7700 ONYX
- Wire Die: 79120 - 2:1 Square .500 hole spacing - .250 square hole size
- Wire Inserter: 8000 ONYX Heavy Duty 14" maunal flat bar inserter/closer
- Punch Capacity Up to 55 Sheets of 20 lb paper
- Punch Length: 11" Punching Length with 14" Open Ended Extra Capacity Die
- Fully Disengageable Pins:Yes
- System Weight: 147.6 lbs
- Total System Dimensions: 24 1/2" x 21" x 22 1/2" (H x W x D)
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)
- Compatible Supplies: 2:1 Pitch Twin Loop Wire
Specifications
- 2:1 Wire Die with easy disengageable pins - Included
- 14" manual flat bar wire inserter/closer - Included
- Attachment kit for mounting Wire Inserter on top of punch - Included
- Automatic and Manual Reverse feature to reduce jamming in the punch
- Rate of 25 cycles per minute
- Auto and manual reverse clears most punching jams
- Accu-Set adjustments on odd size paper
- Efficient work environment with a standard foot pedal and optional versa switch
- Extreme high capacity Waste Chip Tray with Clear View Access
- Heavyweight metal construction
- Made in the USA with more than 98% recyclable materials
