Product Description

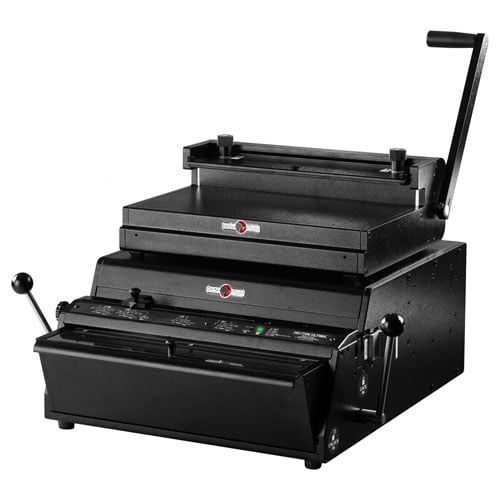

To Get the Full Package, Order All of the Items Above The Rhin-O-Tuff 7700W3 is Rhin-O-Tuff's ultimate top of the line mega duty electric 3:1 wire binding system, it can easily punch over 55 sheets of 20# paper. Everything you need to produce 3:1 wire binding is included in this system except for your wire and covers, those you can purchase separately for easy customization. Rhin-O-Tuff's mega duty 7700W3 consists of the HD7700 ultima modular binding punch, a 3:1 square hole die (.333 hole spacing - .156 square hole size), a 14" manual flat bar wire closer, and a modular mounting kit. The 7700W3 3:1 Wire Binding System is designed for high volume commercial and corporate use, it can handle any project large or small. A great design feature of the mega duty 7700W3 is its future ability to be easily adapted and upgraded. Part Number 7700W3.
Product Details
- Punch Model: HD7700 ONYX
- Wire Die: 079070 - 3:1 Square .333 hole spacing - .156 square hole size
- Wire Inserter: 8000 ONYX Heavy Duty 14" manual flat bar wire inserter/closer
- Punch Capacity Up to 55 Sheets of 20 lb paper
- Punch Length: 11" Punching Length with 14" Open Ended Extra Capacity Die
- Fully Disengageable Pins:Yes
- System Weight: 147.6 lbs
- Total System Dimensions: 24 1/2" x 21" x 22 1/2" (H x W x D)
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)
- Compatible Supplies: 3:1 Pitch Twin Loop Wire
Specifications
- 3:1 Wire Die with easy disengageable pins - Included
- 14" manual flat bar wire inserter/closer - Included
- Attachment kit for mounting Wire Inserter on top of punch - Included
- Automatic and Manual Reverse feature to reduce jamming in the punch
- Rate of 25 cycles per minute
- Auto and manual reverse clears most punching jams
- Accu-Set adjustments on odd size paper
- Efficient work environment with a standard foot pedal and optional versa switch
- Extreme high capacity Waste Chip Tray with Clear View Access
- Heavyweight metal construction
- Made in the USA with more than 98% recyclable materials
