Product Description

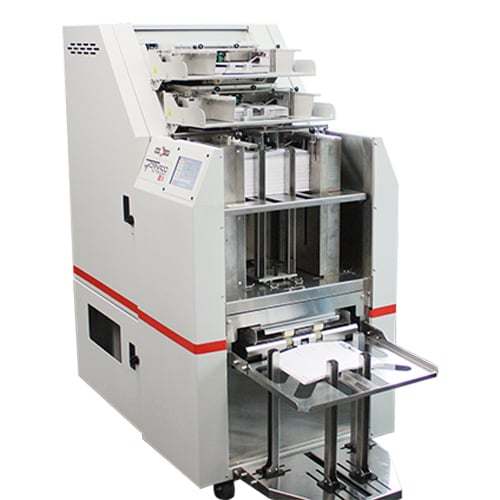

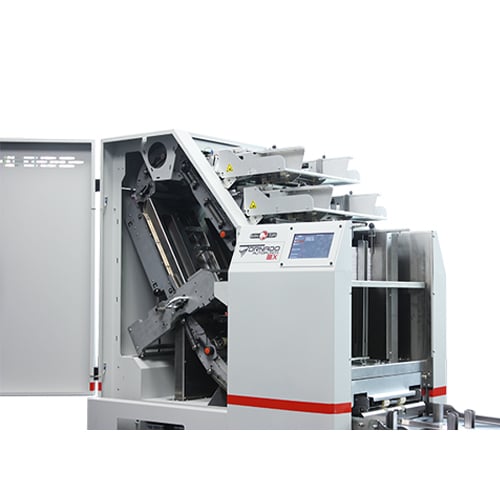

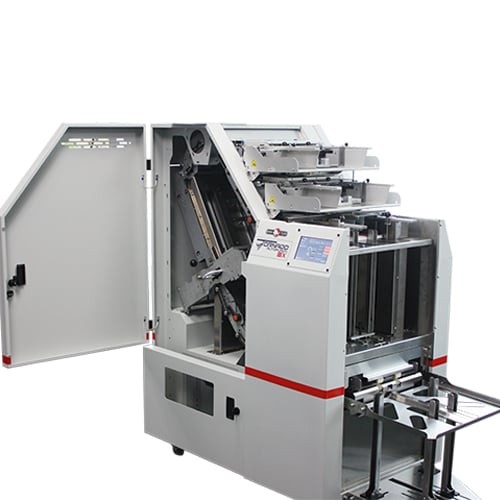

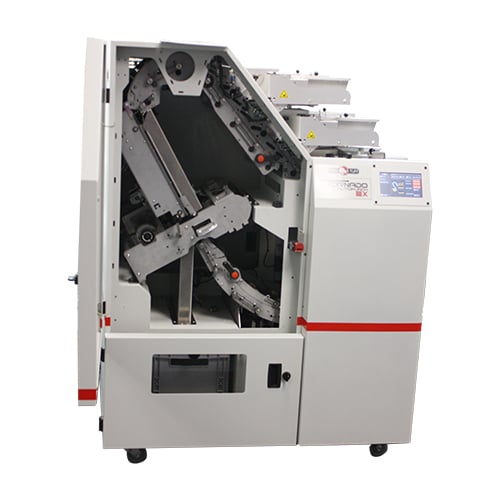

Say goodbye to manual collation and punching of covers, index tabs and inserts, manual paper lift punching , and manual separation of book stacks after punching with this new Rhin-O-Tuff Tornado Autopunch EX Modular Interchangeable Die Binding Punch. This modular punch uses BDT Print Media’s advanced media handling technology to automatically feed, collate, punch and deliver offset book stacks ready for binding in a single platform. The Tornado Autopunch EX handles media from 60gsm to 312gsm, including light porous/heavy coated print media and specialty binding media like plastics, vinyl, and textures. This automated binding punch can punch up to 10,800 sheets per hour, and its high-capacity main bin holds up to 2500 sheets, (including mixed media). Reduce your labor-intensive punching process and maximize your productivity and profit with Rhin-O-Tuff Tornado Autopunch EX Modular Interchangeable Die Binding Punch. Interested in experiencing the Rhin-o-Tuff Tornado AutoPunch EX in action? Give us a call to schedule a live video demonstration or arrange testing customer samples. Let us work together to find the perfect solution for what you need. Explore with us today!
Product Details
- World’s First Automated Collating Punch using Patented BDT Tornado Technology. A single off-line automated collation and punching platform to meet the needs of your on-demand print environment with a quick return on investment.

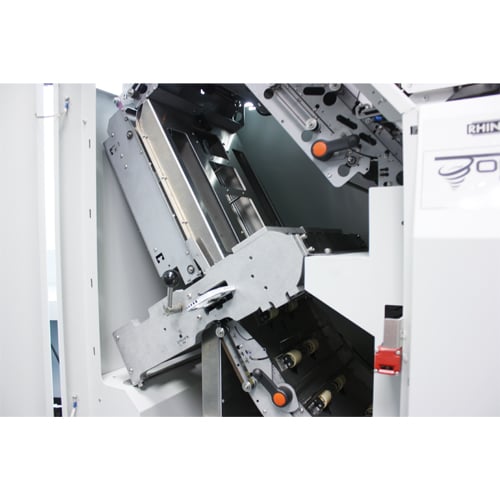

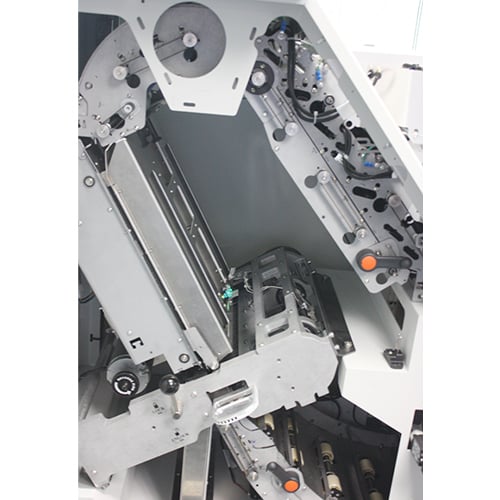

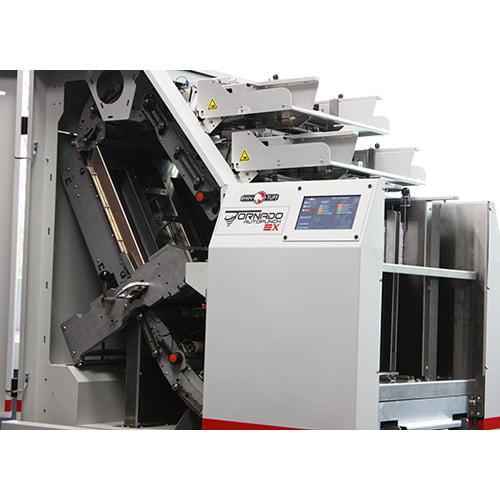

- Advanced Media Handling Technology. Powered by BDT’s patented Tornado Technology to separate, lift and transport the widest range of media, including printed media and other book components like covers, tabs and inserts reliably minimizing downtime.
- Widest Media Range in the Industry. The system handles media from 60gsm – 312gsm, including light porous/heavy coated print media and specialty binding media like plastics, vinyl, and textures.

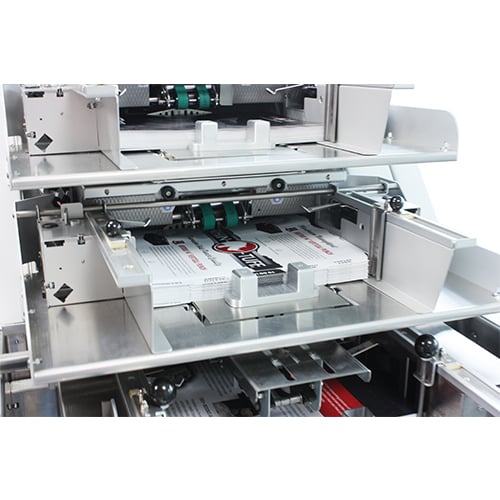

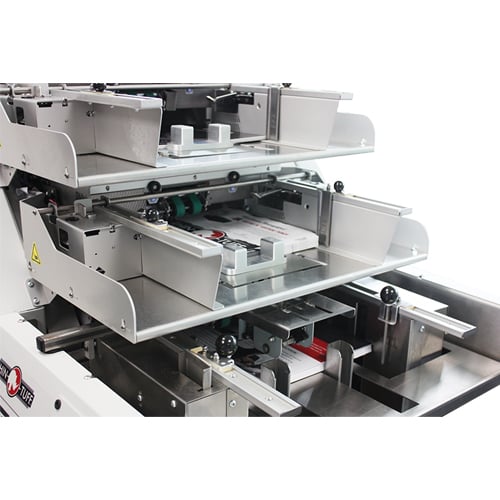

- Automated Interposing of Covers/Index Tabs/Inserts. Two Interposer Bins hold up to .75" (19mm) of media, auto-collating front/back covers, inserts and index tabs into the book stack prior to punching. No manual collation required.

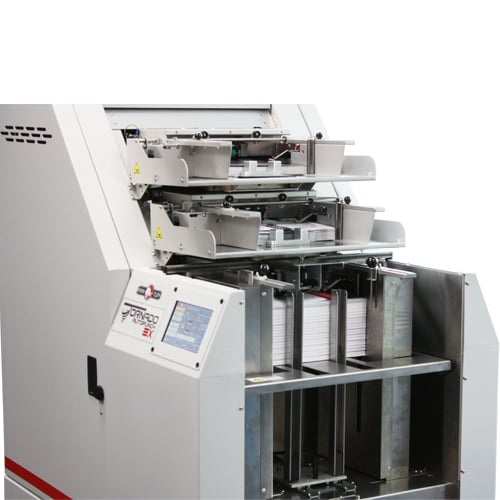

- Accommodates Mixed Media Run on Digital/Offset Printers. High-Capacity Main Bin holds up to 2500 sheets, including mixed media.
- "Patent-Pending" Paper Accumulation Technology. Designed to accumulate covers, tabs and document sheets and auto-adjust the punch lifts depending on the type of media being run for maximum punching performance.

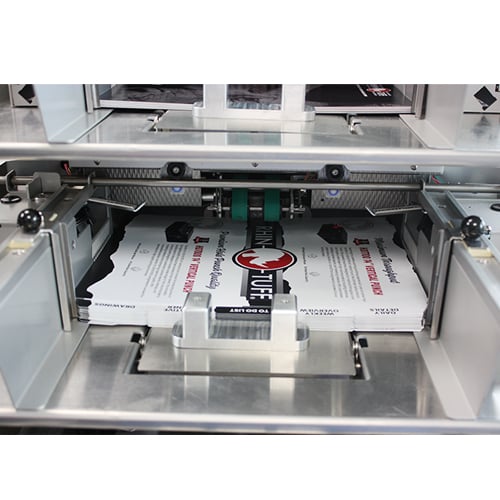

- Heavy-Duty Auto-Punch Technology. Proven Rhin-O-Tuff technology punches up to 10,800 sheets per hour, improving throughput.

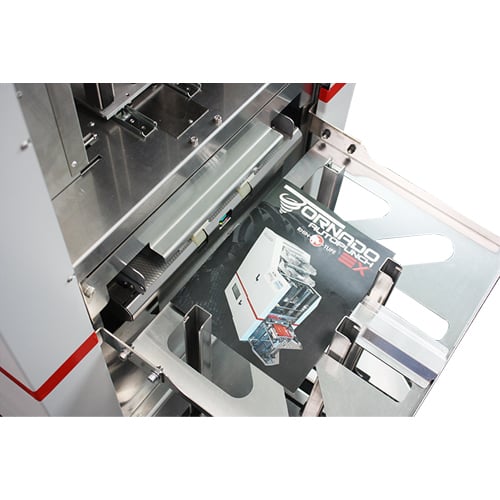

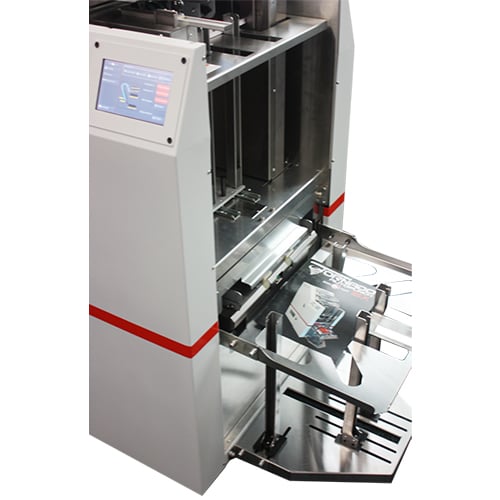

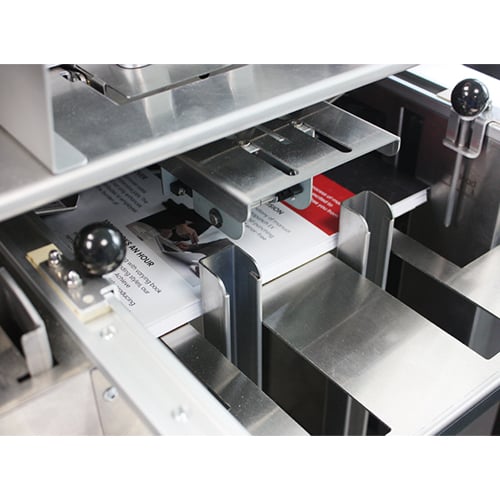

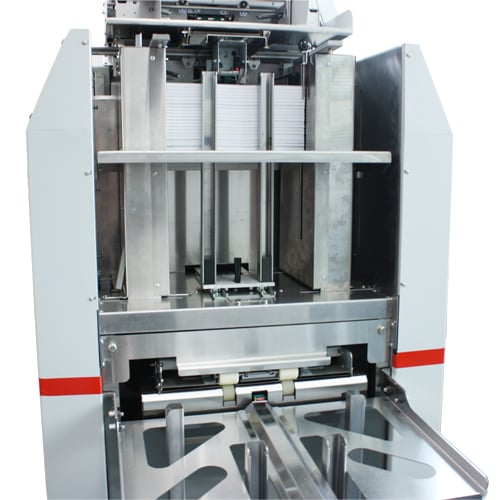

- Offset Book Stacks Ready for Binding. Book stacks exit collated and ready for binding, enabling operator’s to start the binding process while the punching job is still running, saving time and labor.
- Eliminate 4 Manual Steps
- No manual collation of covers, index tabs and inserts
- No manual punching of covers, index tabs or inserts
- No manual paper lift punching
- No manual separation of book stacks after punching - no color slip-sheets by book/section required when printing
Specifications

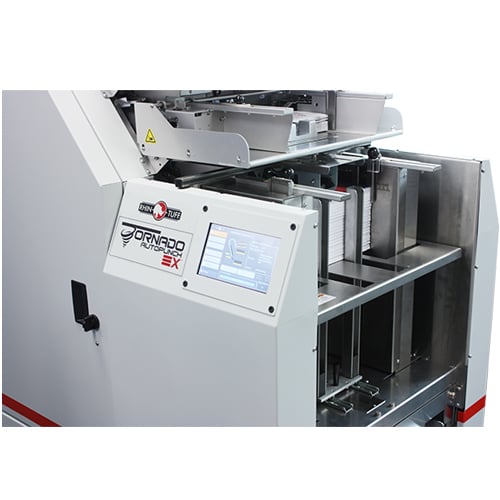

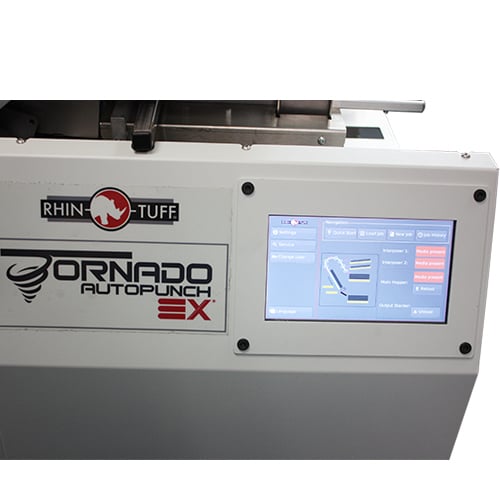

- 7" Touchscreen Display: 7" Touch function color display Job Set-up and Monitoring - Quick Start Mode, Preset Media Types, Job Status Display Punch/Die Cycle count and Chip Bin Status
- Sheet Sizes:
- Punched Edge: 8.27" to 12"
- Unpunched Edge: 5.5" to 12.5"
- Index Tabs: Up to 1/2" tab extension
- Media: 60gsm to 312gsm including - Uncoated Bond Paper, Text/Offset Coated Paper, Plastic (Acetate/PVC) and Vinyl Covers/Tabs (*Plastic media must be run from an Interposer Bin only.)
- Interposer Bin Capacity: Up to .75" of Covers/Index Tabs/Insert Sheets
- Main Bin Capacity: Up to 2500 sheets of 20lb. bond
- Punching Speed: Up to 10,800 Sheet per Hour based upon 20lb. bond
- Interchangeable Die Sets: LETTER (US) and A4 (INTL) formats in 9 Binding Styles

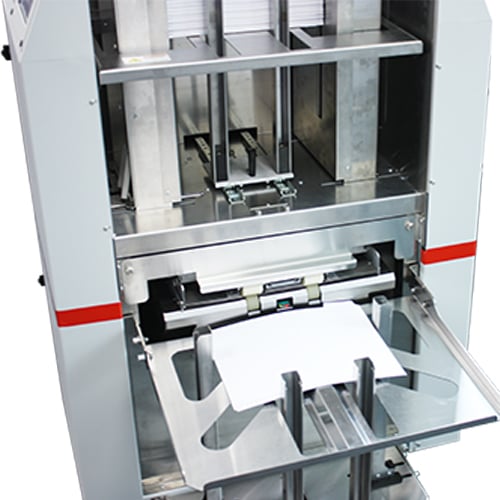

- Offset Stacker: Up to 2100 sheets of 20lb bond

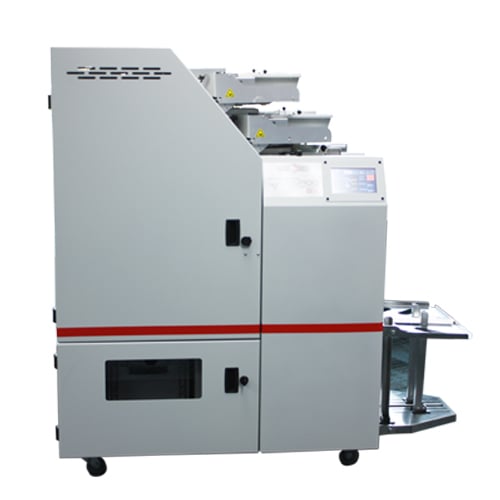

- Actual Machine Dimensions: 28x59x59
- Actual Machine Weight : 770
- Shipping Length : 54
- Shipping Width: 37
- Shipping Height: 67
- Shipping (Web) Weight: 800 lbs
- Voltage: 115 Volt, 60Hz
- Warranty and Safety: 1-Year Limited Warranty/UL-CSA Approval

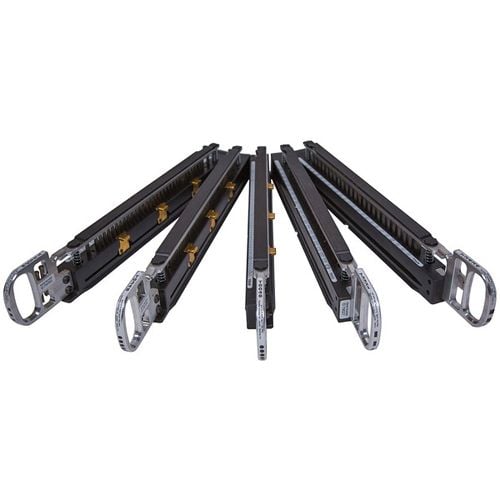

Die Set Specifications
- Die Set Styles:
- 19/21 Hole Plastic Comb
- 4:1 Color Coil - Round and Oversized Hole (.2475" or 6mm)
- 3:1 Twin Loop Wire - Squre and Round Hole
- 2:1 Twin Loop Wire - Squre and Round Hole
- 11/12 Hole VeloBind
- Loose-leaf - 3-5-7 Hole and 2-Hole Medical (8.5" side)
- Loose-leaf - A4 2-4 Hole
- RFID Chip:
- Display die set type in LCD Screen
- Tracks/display # of punch cycles/die set
- Disengaugeable Punch Pins: Pins pull out for varying paper sizes
- Machine Storage: Integrated stroage for up to 4 extra die sets
